Dome Lamp
Dome Lamp

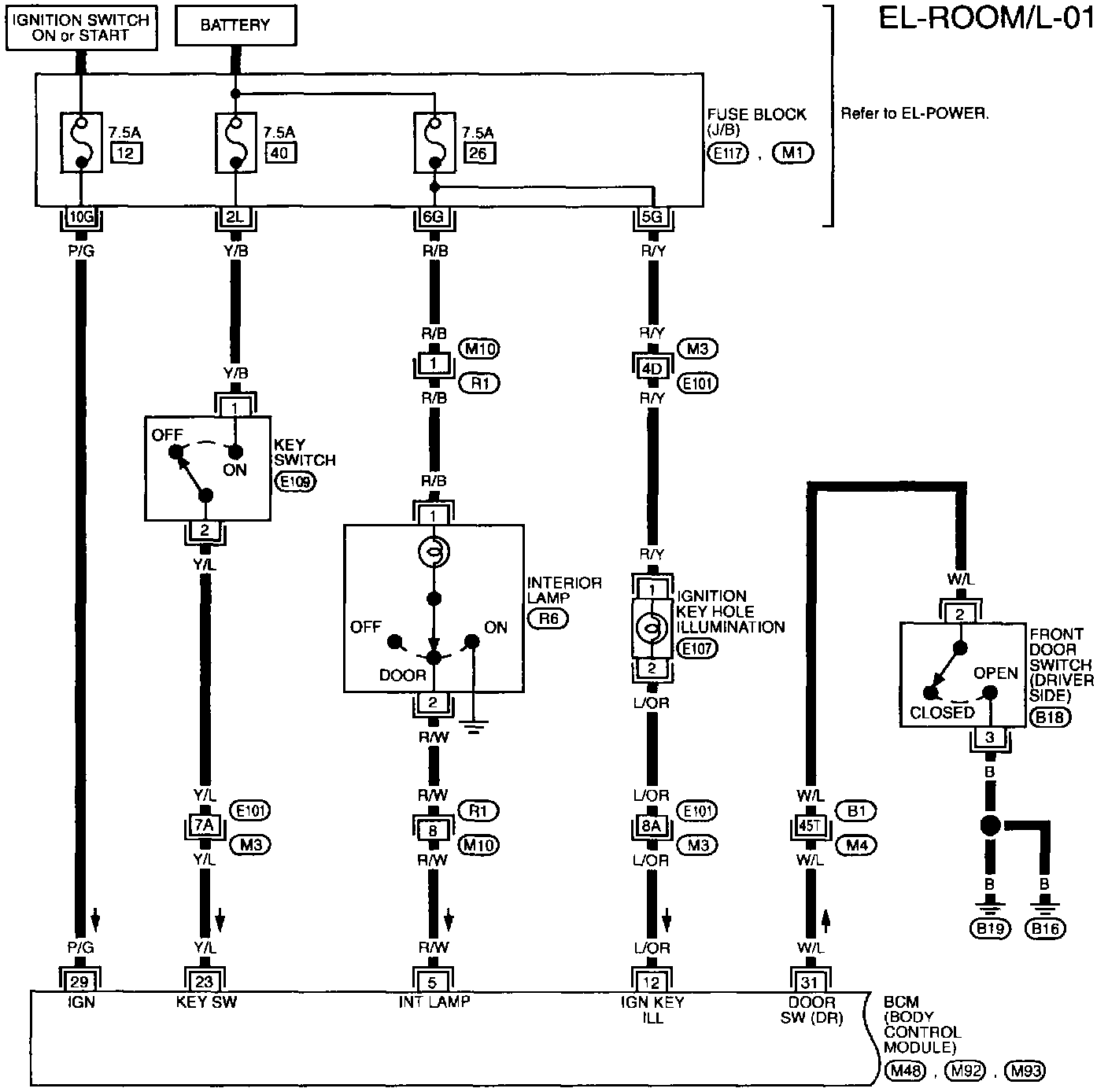

EL-ROOM/L-01 Interior Lamp Control (Part 1 Of 2):
EL-ROOM/L-02 Interior Lamp Control (Part 2 Of 2):
