Home >> Infiniti >> 1997 >> I30I V6-2988cc 3.0L DOHC MFI (VQ30DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Schematic

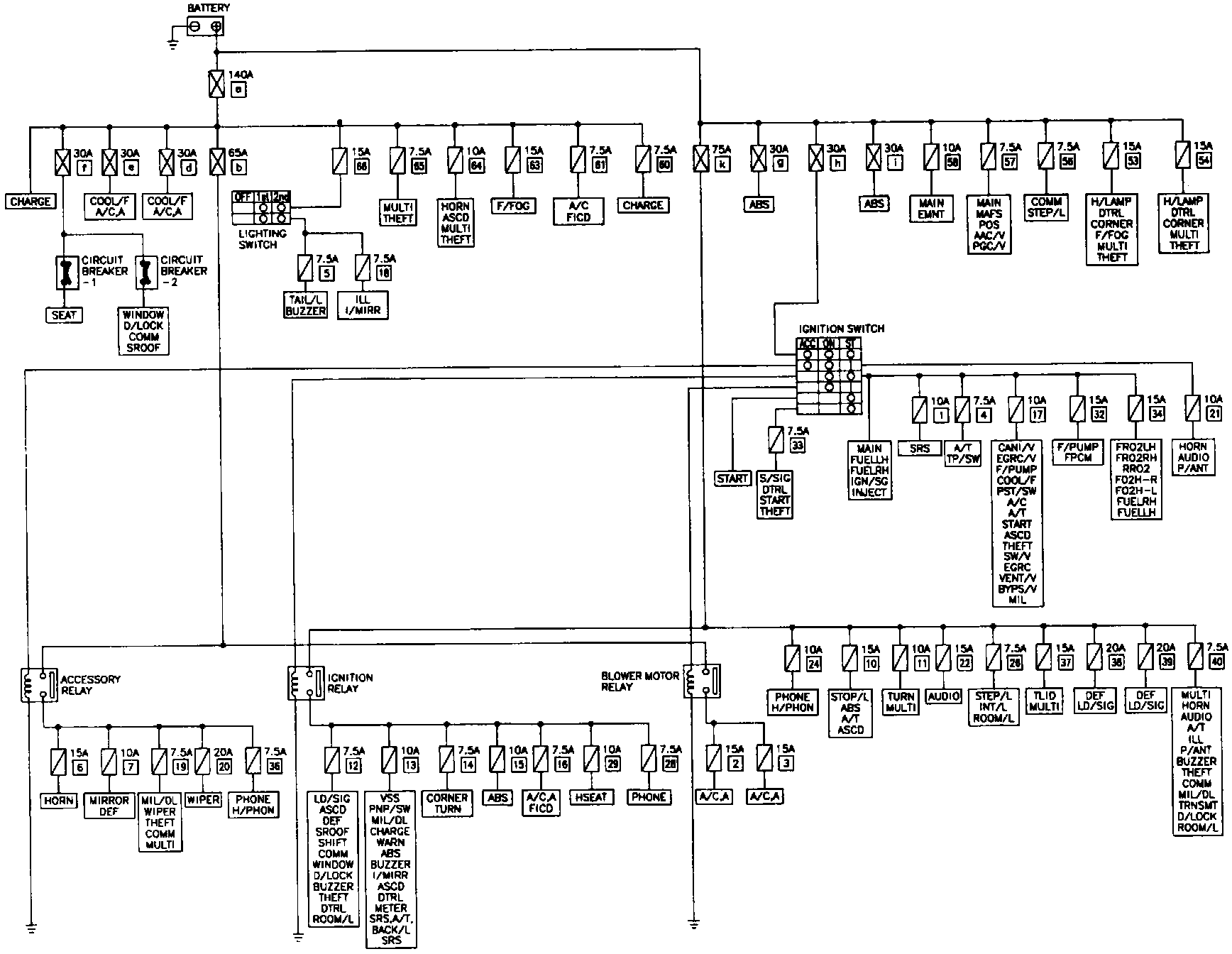

Schematic

Schematic:



Fuse Block-Junction Box (J/B) Terminal Arrangement:



Fuse And Fusible Link Box Terminal Arrangement:
