Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1997
>>
I30I V6-2988cc 3.0L DOHC MFI (VQ30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Camshaft Position Sensor
Camshaft Position Sensor

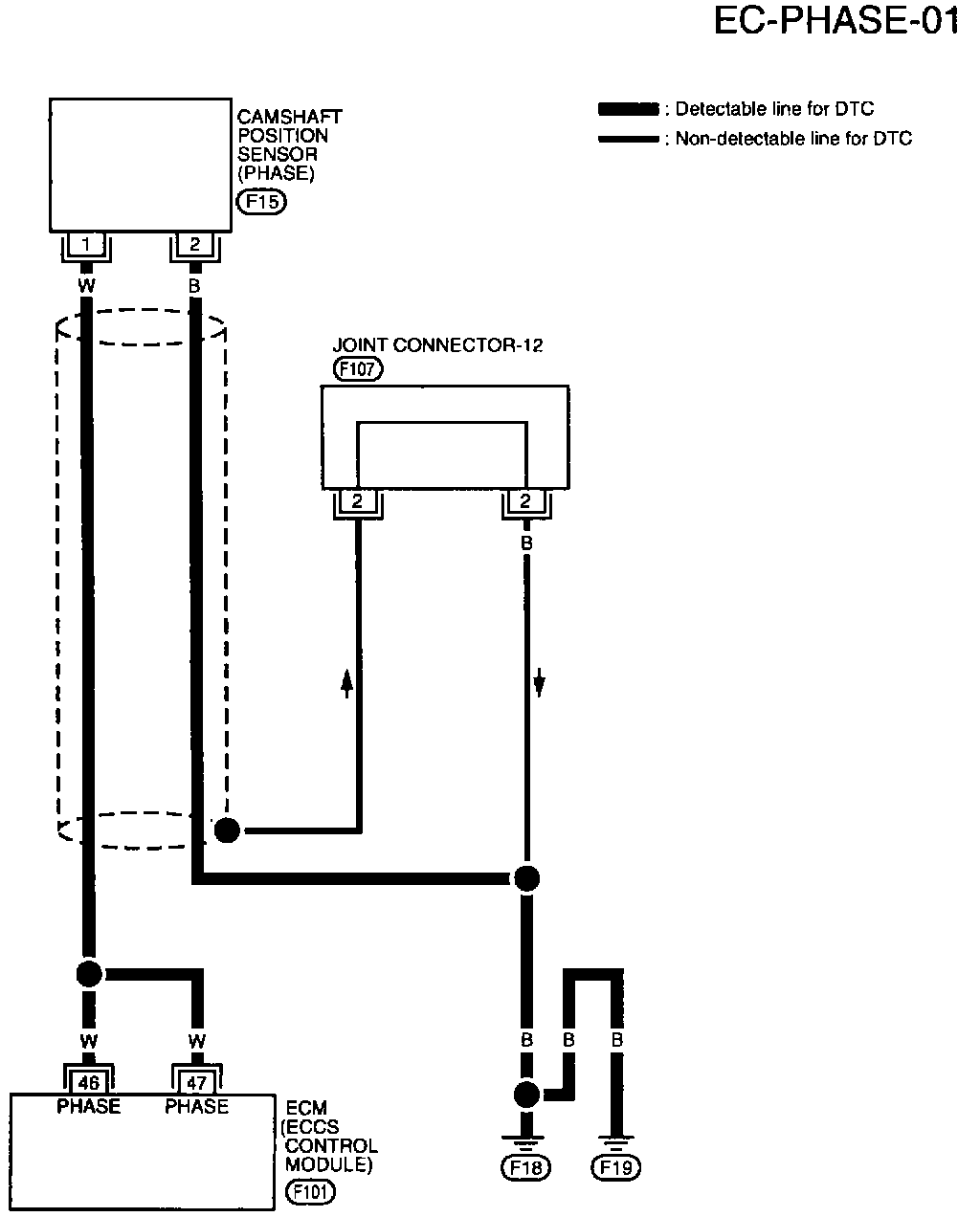

EC-PHASE-01 Camshaft Position Sensor (CMPS) (PHASE) (DTC: P0340):
Camshaft Position Sensor (CMPS) (PHASE) (DTC: P0340):
