System Diagram
System Diagram

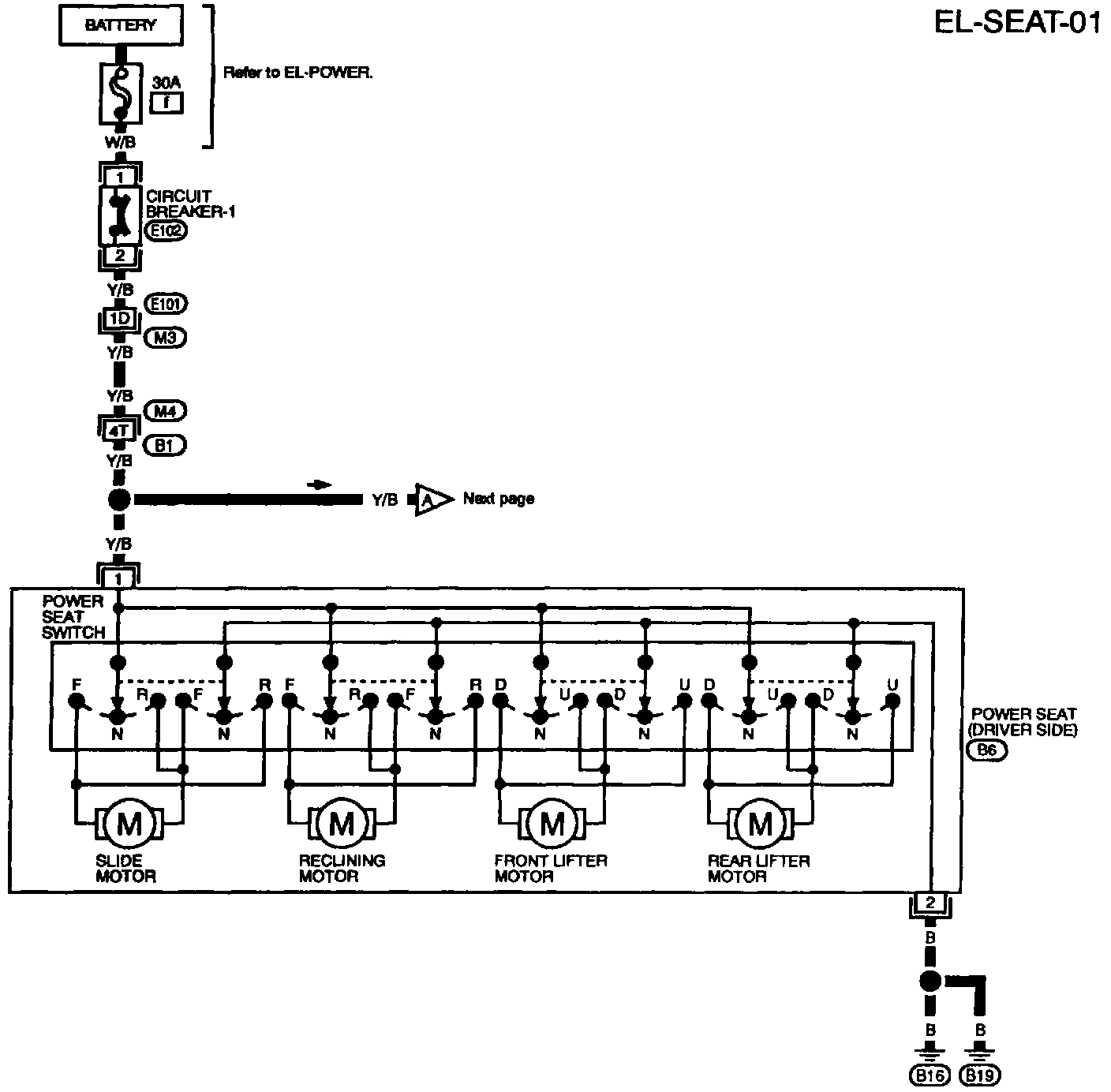

EL-SEAT-01 Power Seat (Part 1 Of 2):

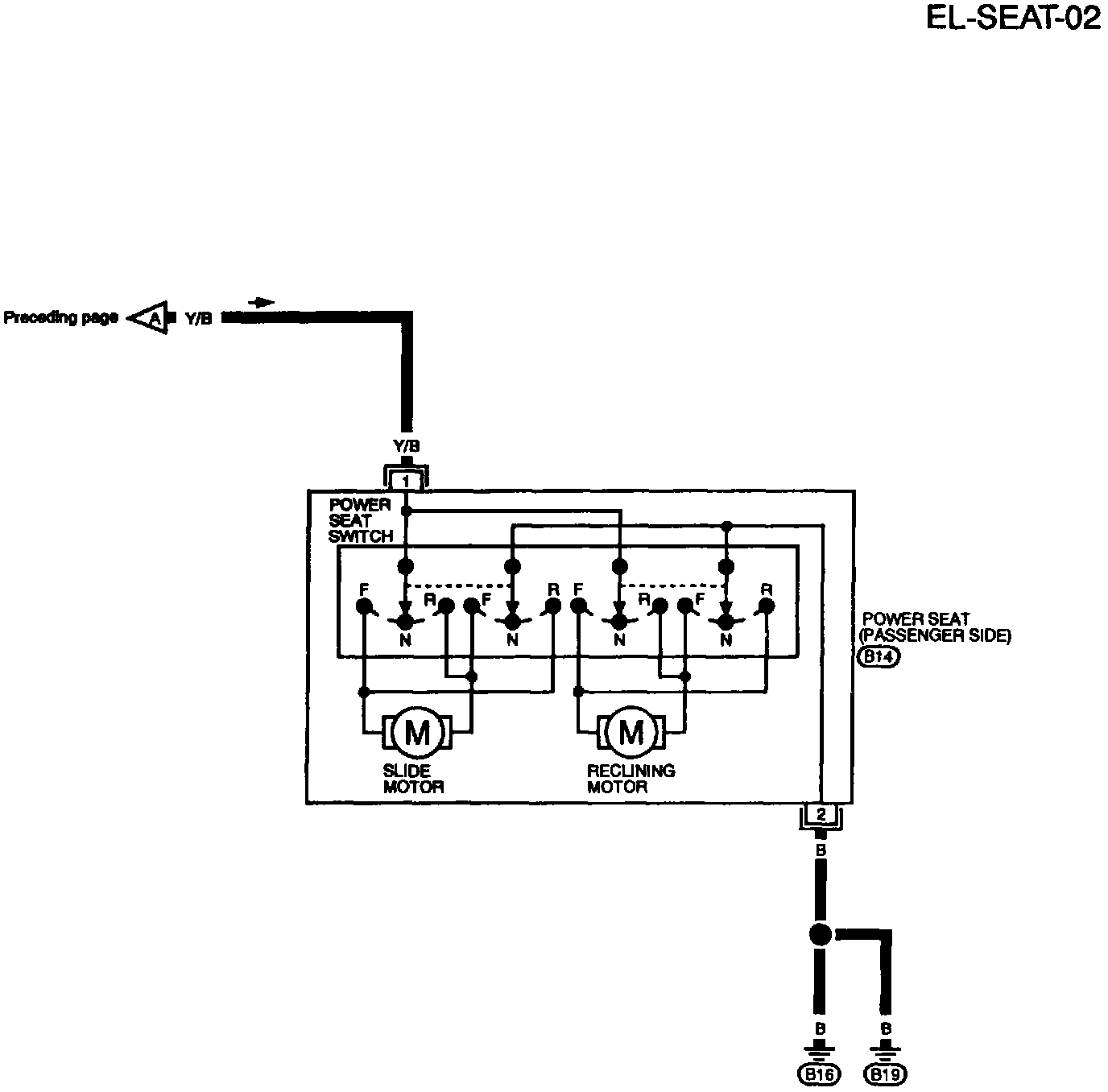

EL-SEAT-02 Power Seat (Part 2 Of 2):
