Wiring Diagrams - A/T Models

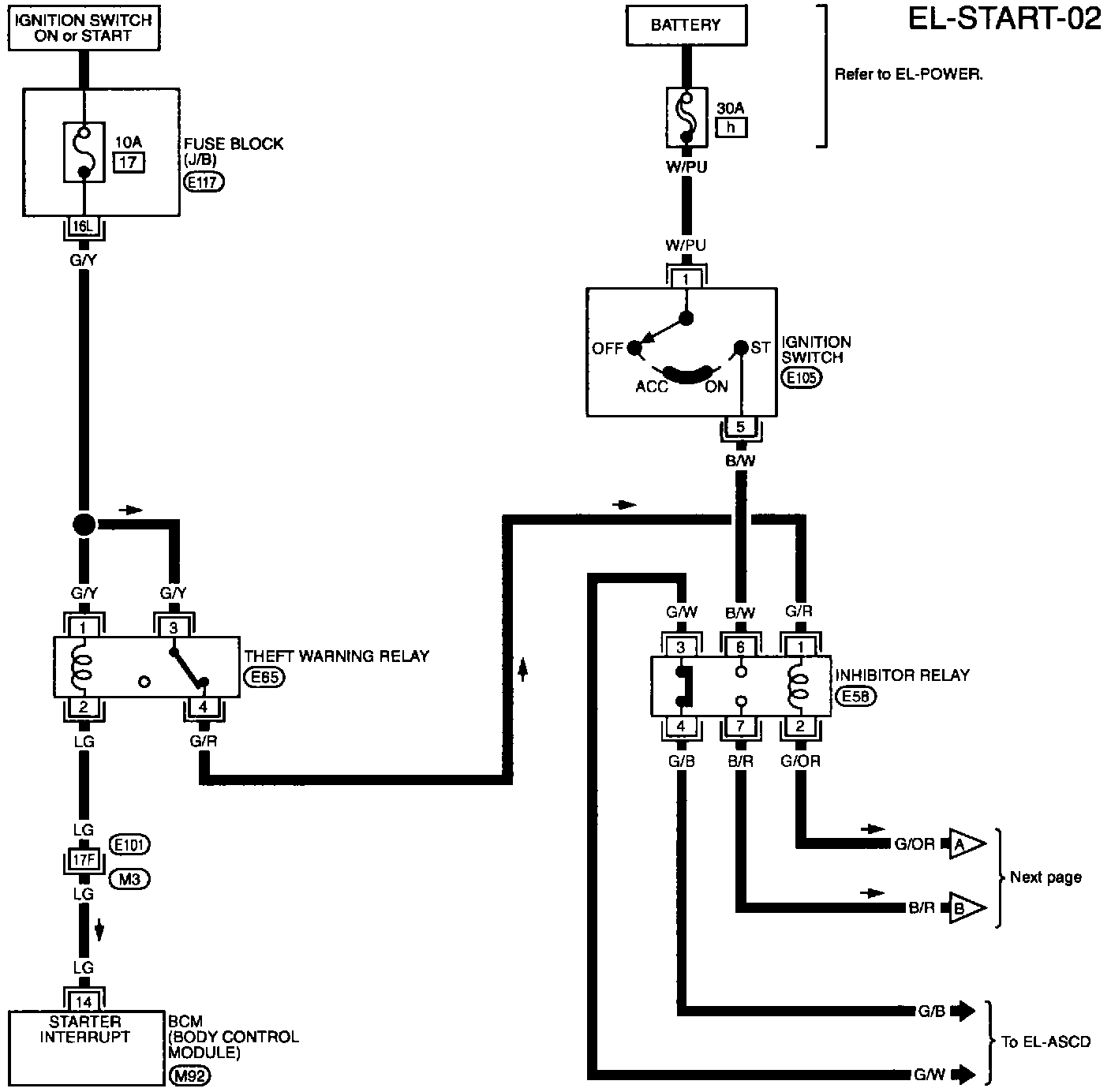

EL-START-02 Starting System (A/T Model) (Part 1 Of 2):

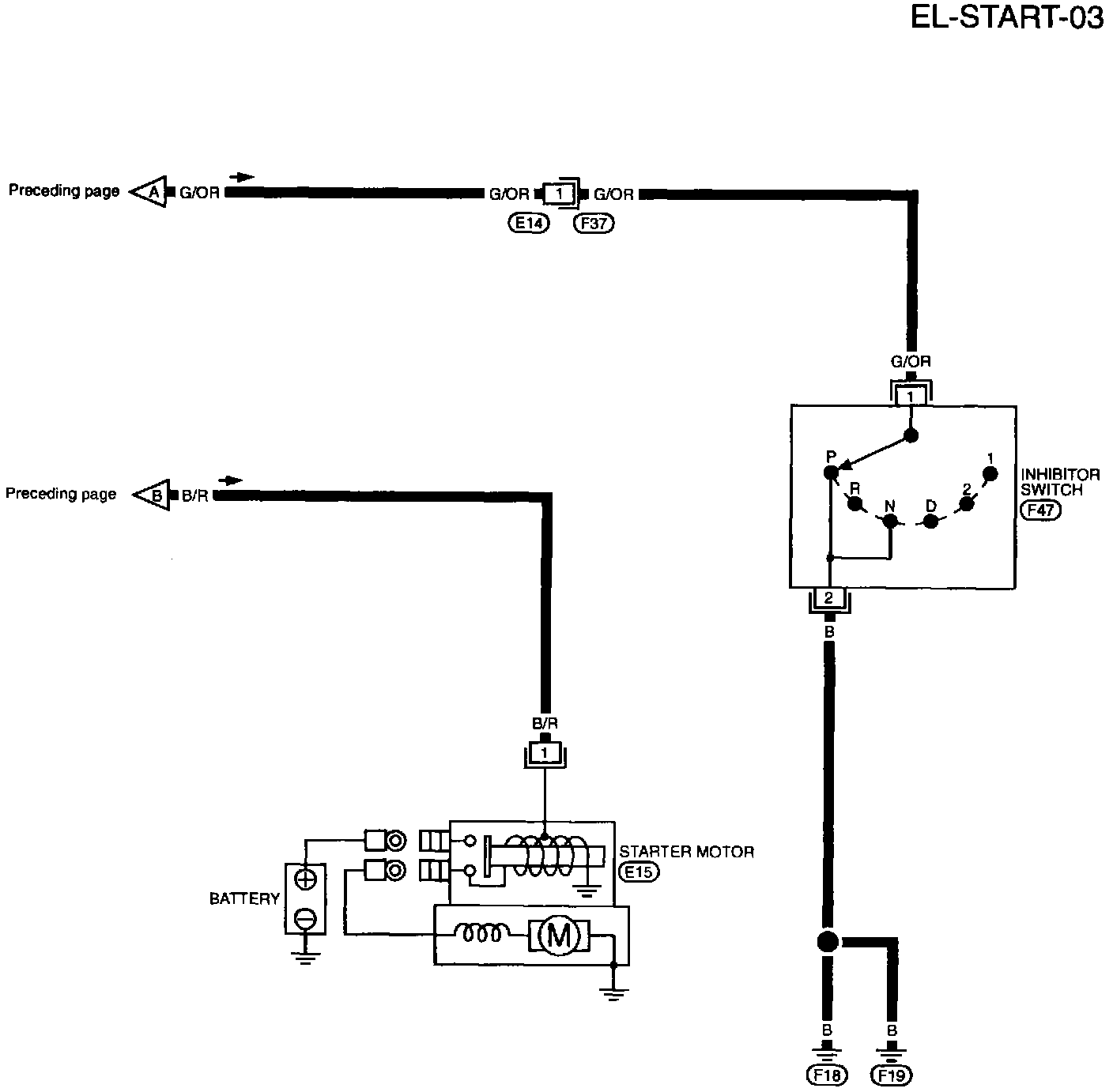

EL-START-03 Starting System (A/T Model) (Part 2 Of 2):
