Home
>>
Infiniti
>>
1997
>>
I30I V6-2988cc 3.0L DOHC MFI (VQ30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>

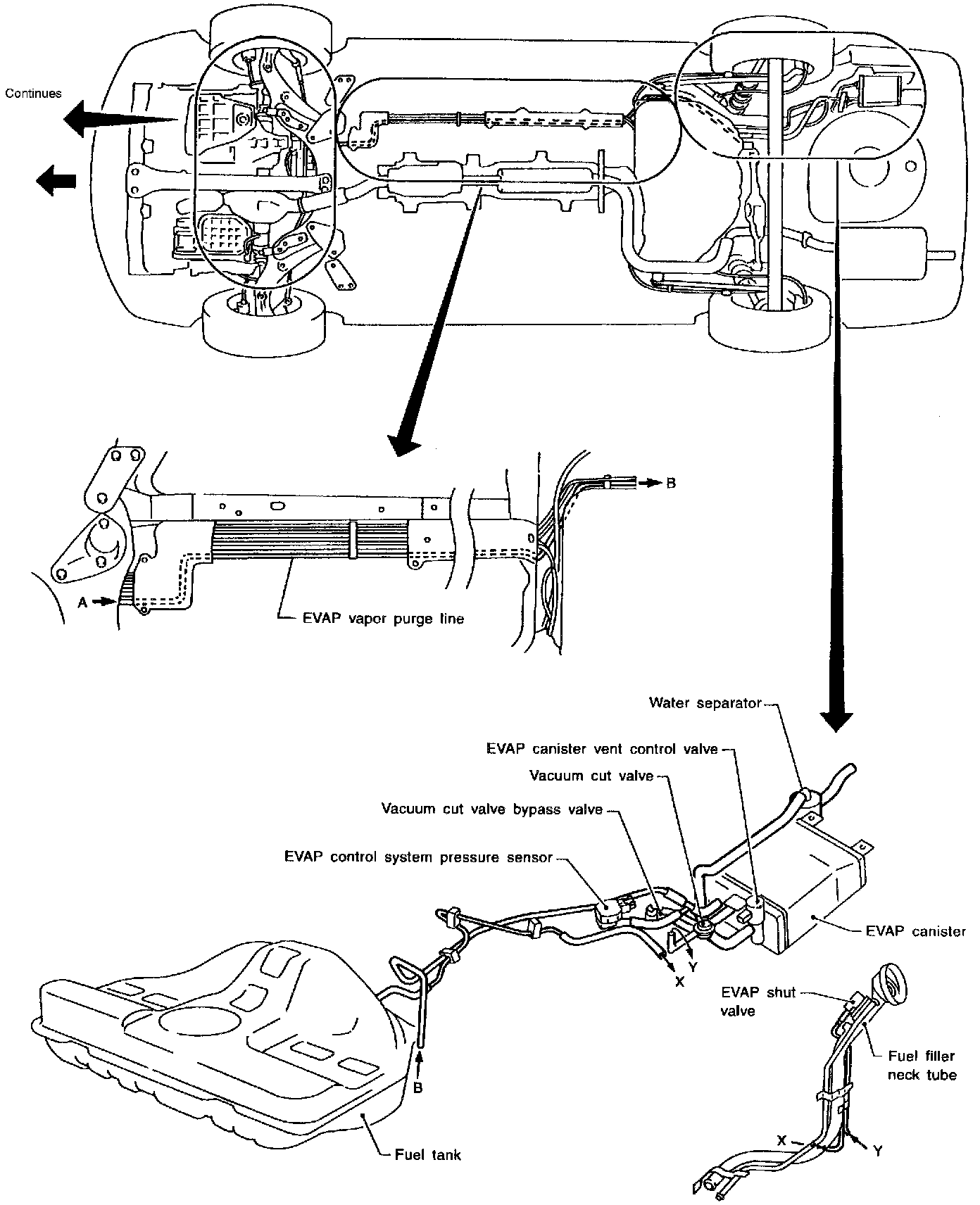

Evaporative Emission Line Drawing - Under Car View
Evaporative Emission Line Drawing - Under Car View
