Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1997
>>
I30I V6-2988cc 3.0L DOHC MFI (VQ30DE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Cornering Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

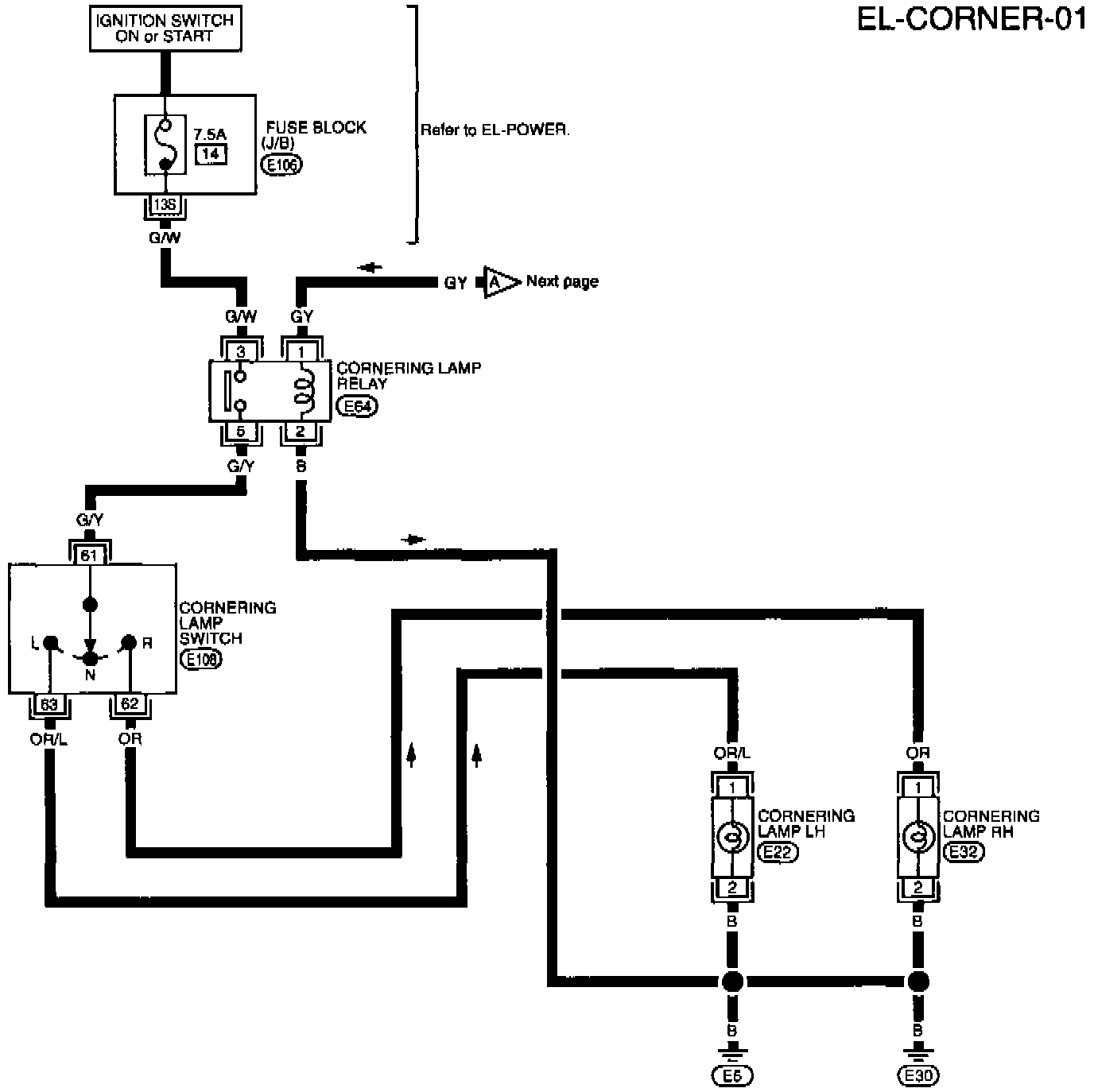

EL-CORNER-01 Cornering Lamp (Part 1 Of 2):
EL-CORNER-02 Cornering Lamp (Part 2 Of 2):
