Keyless Entry: Service and Repair

Enter the identity (ID) code manually when:
^ remote controller or multi-remote control unit LCU05 is replaced.
^ an additional remote controller is activated.

ID Code Entry Procedure
To enter the ID code, follow this procedure.

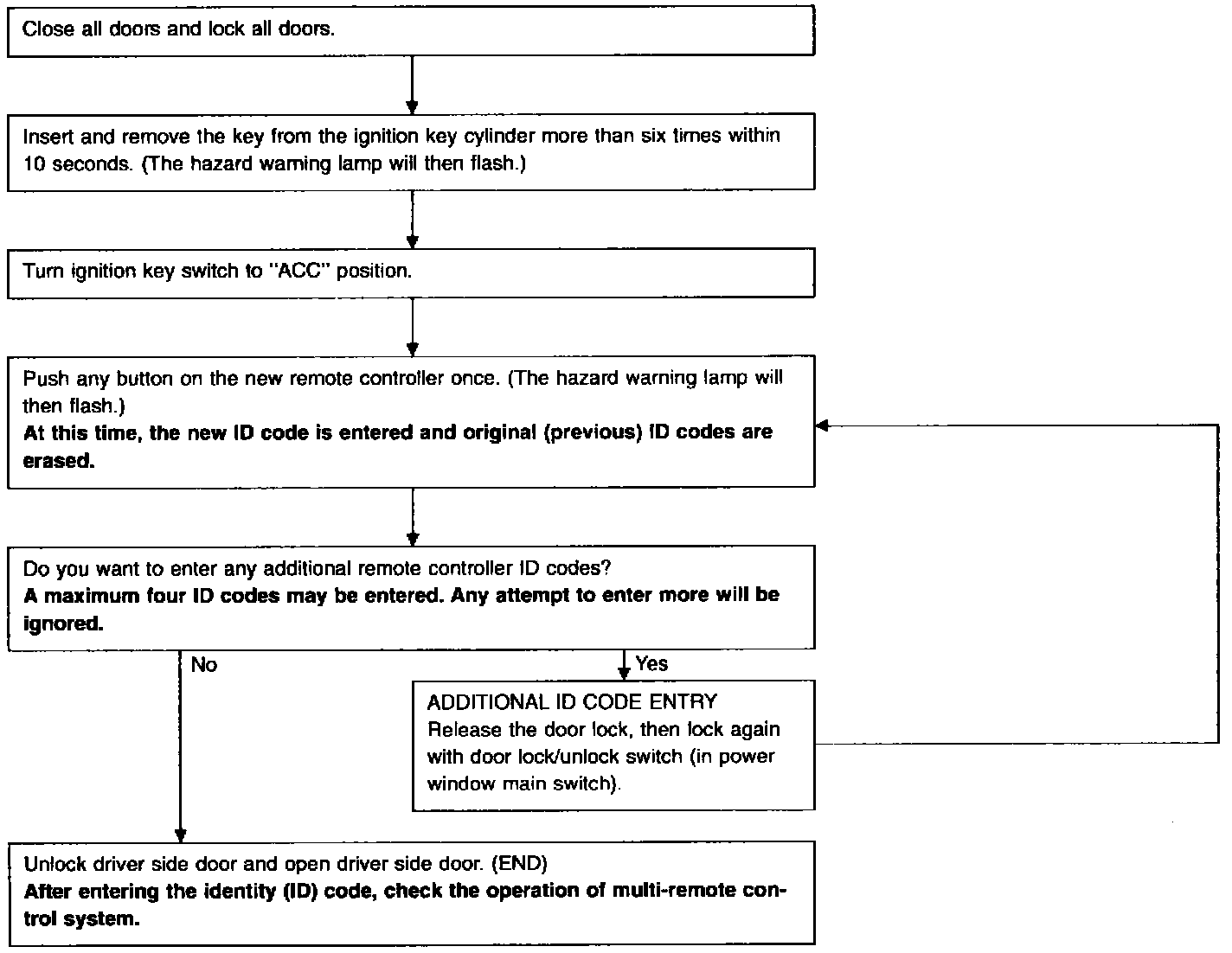

ID Code Entry Procedure:

PROCEDURE
NOTE:
^ If you need to activate more than two additional new remote controllers, repeat the procedure "Additional ID code entry" for each new remote controller.
^ If the same ID code that exists in the memory is input, the entry will be ignored.
^ Entry of maximum four ID codes is allowed and any attempt to enter more will be ignored.
