Home >> Infiniti >> 1997 >> I30t V6-2988cc 3.0L DOHC MFI (VQ30DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Name >> EC-EGR

EC-EGR

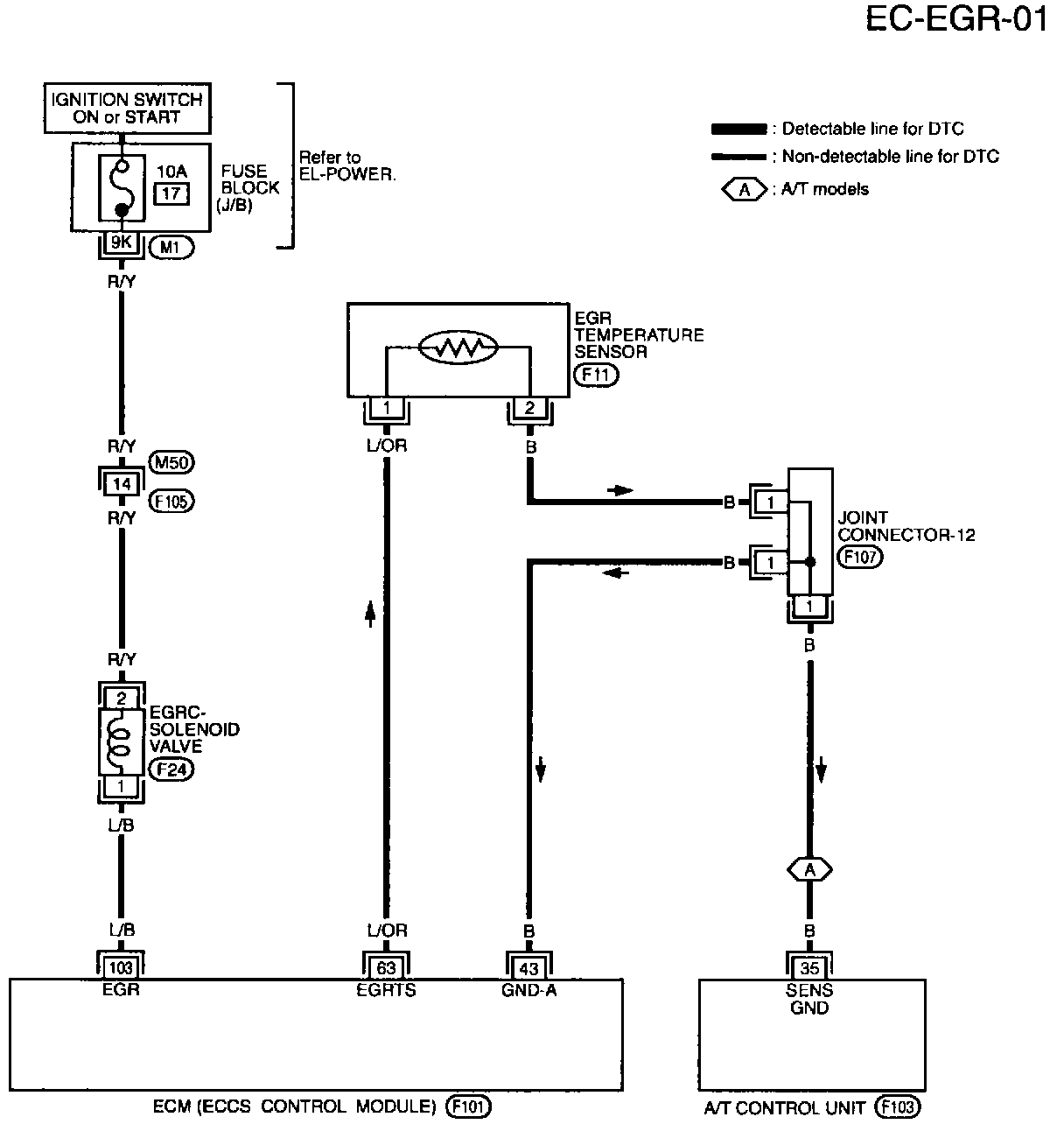

EC-EGR-01 EGR Function (DTC: P0400):
