EC-POS
EC-POS

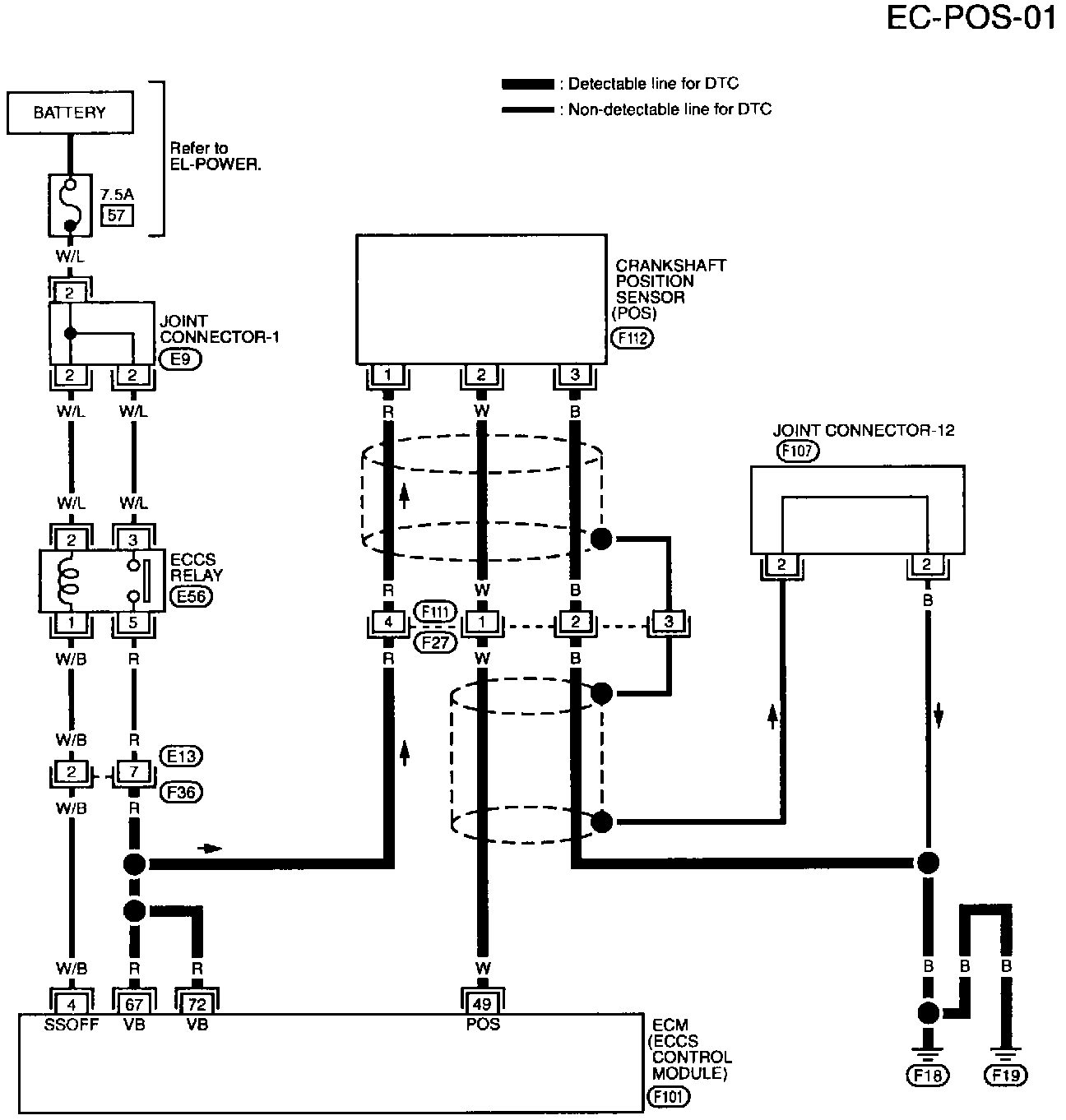

EC-POS-01 Crankshaft Position Sensor (CKPS) (POS) (COG) (DTC: P1336):
EC-POS-01 Crankshaft Position Sensor (CKPS) (POS) (DTC: P0335):
