EC-REF

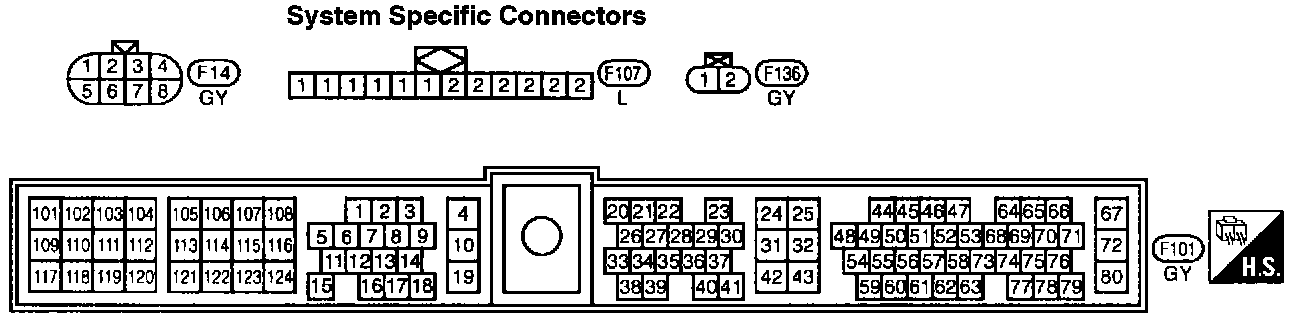

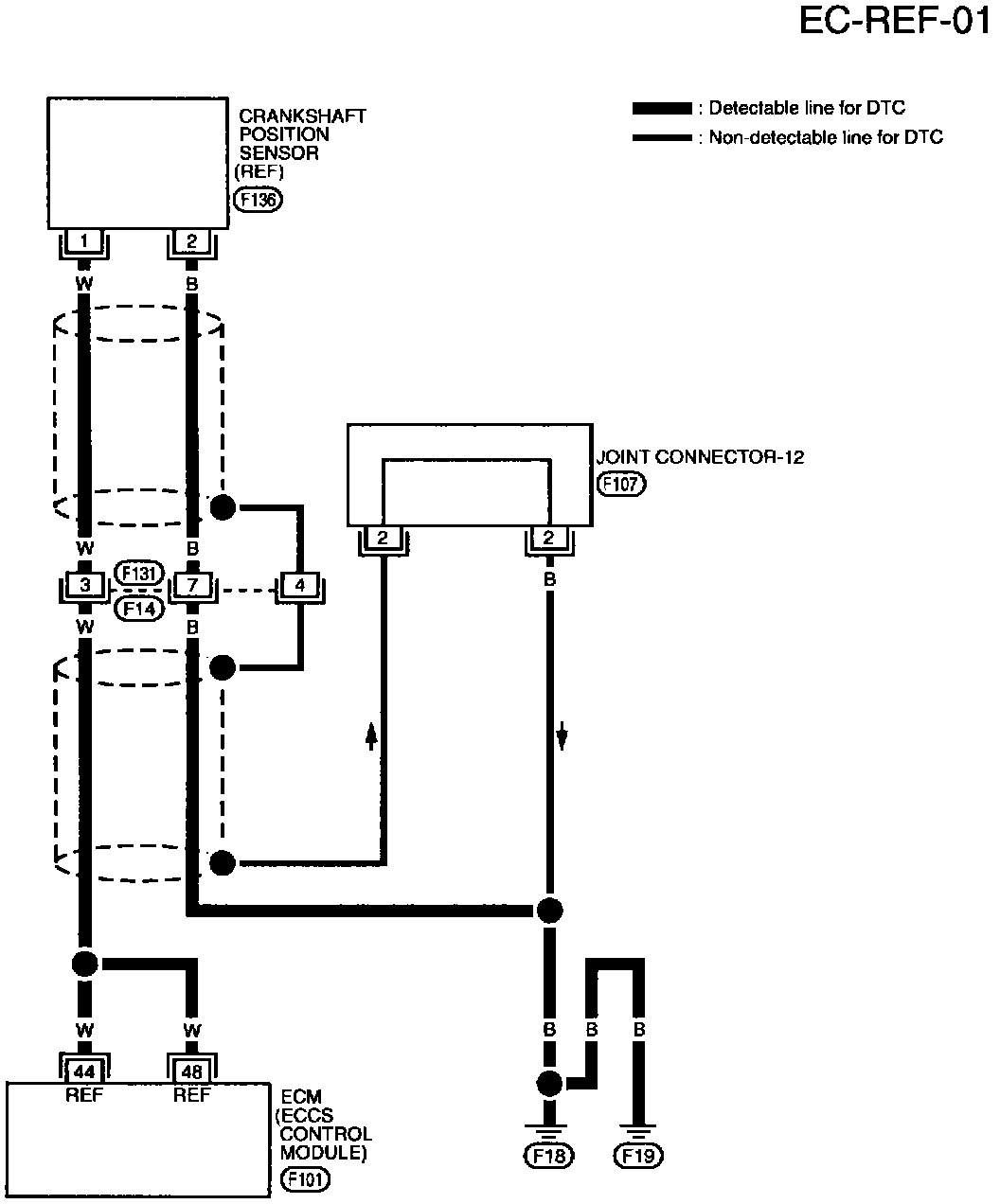

EC-REF-01 Crankshaft Position Sensor (CKPS) (REF) (DTC: P1335):



Crankshaft Position Sensor (CKPS) (REF) (DTC: P1335):
