EL-D/LOCK
EL-D/LOCK

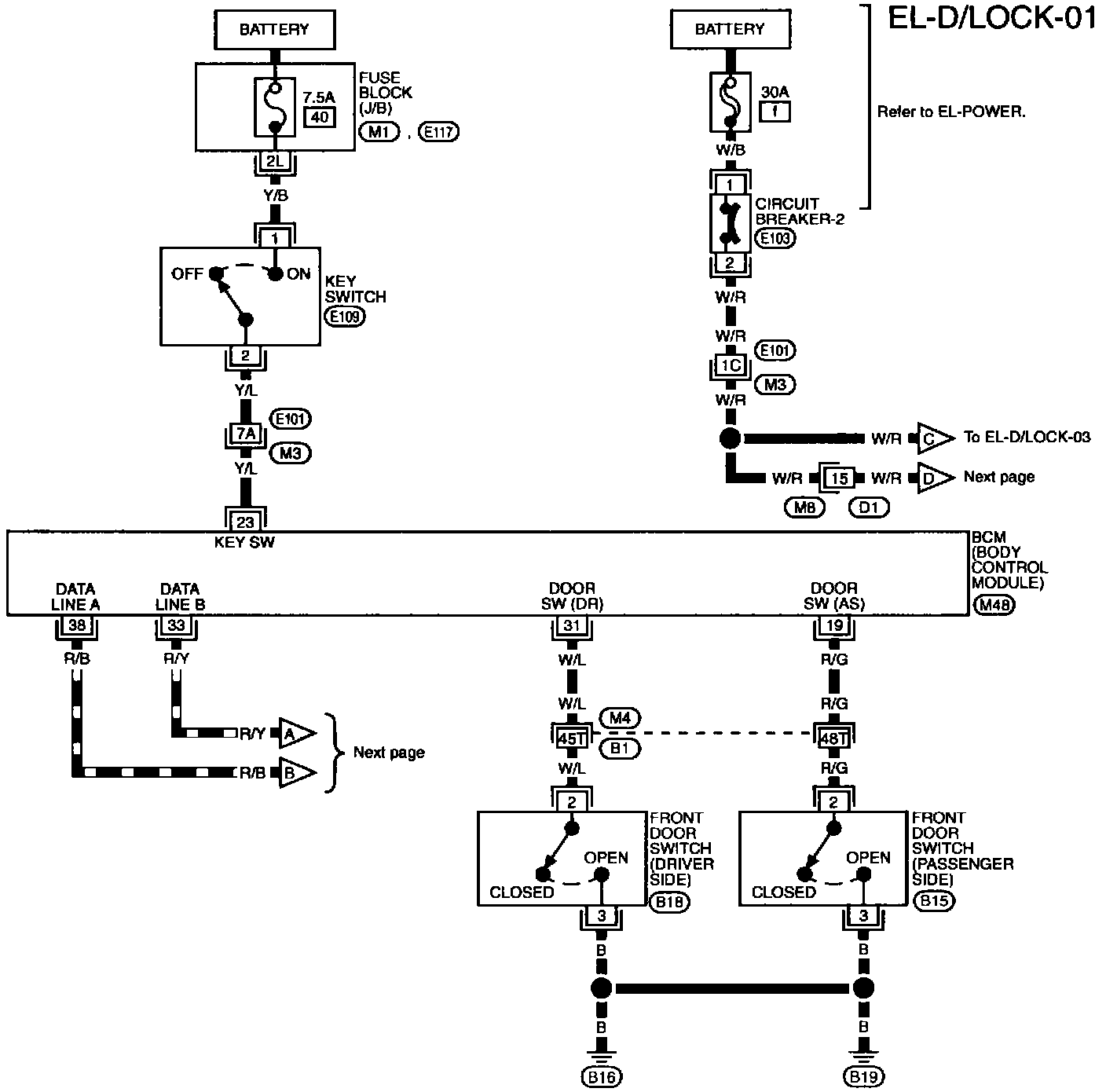

EL-D/LOCK-01 Power Door Lock-IVMS (Part 1 Of 4):
EL-D/LOCK-02 Power Door Lock-IVMS (Part 2 Of 4):

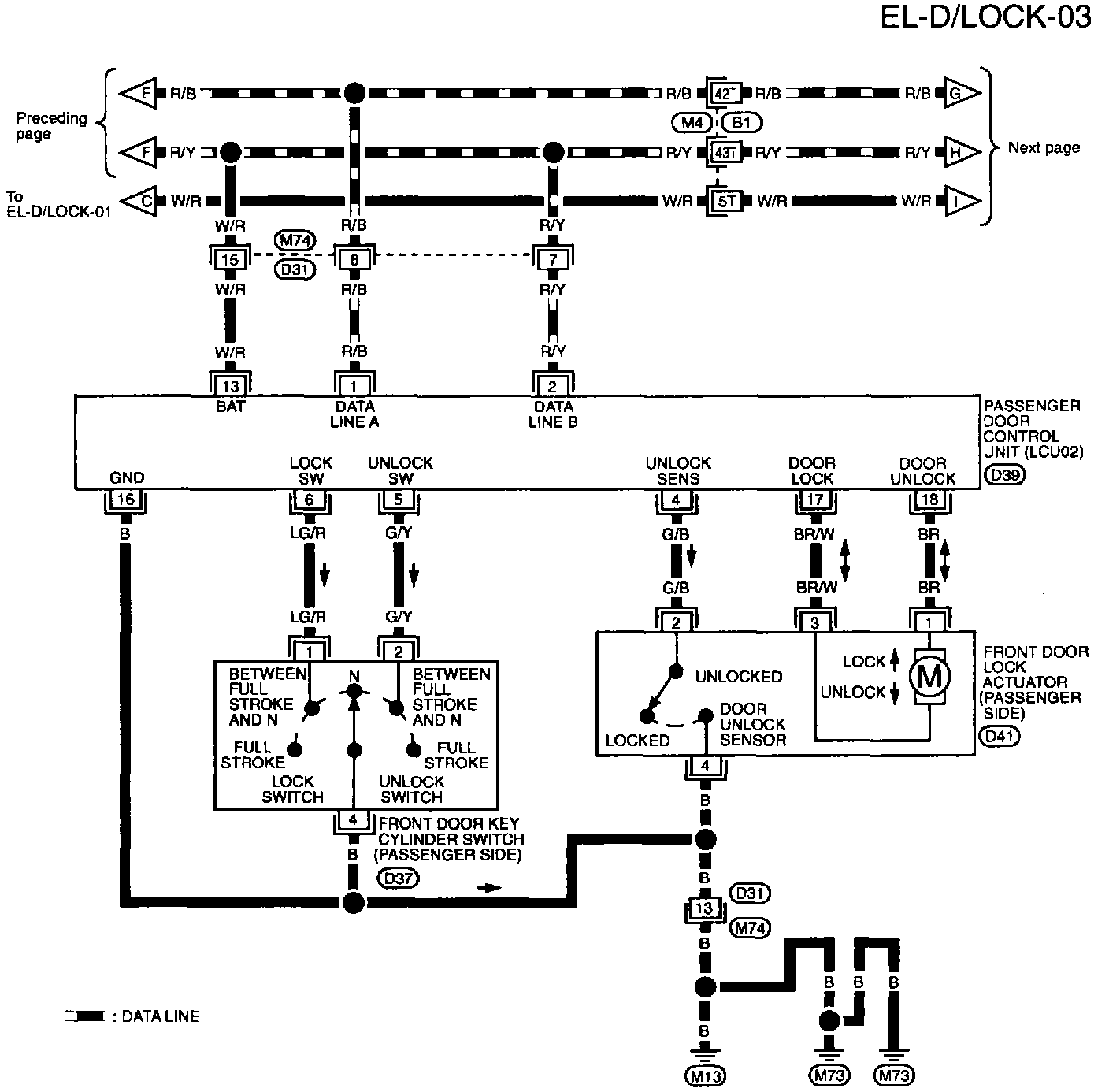

EL-D/LOCK-03 Power Door Lock-IVMS (Part 3 Of 4):

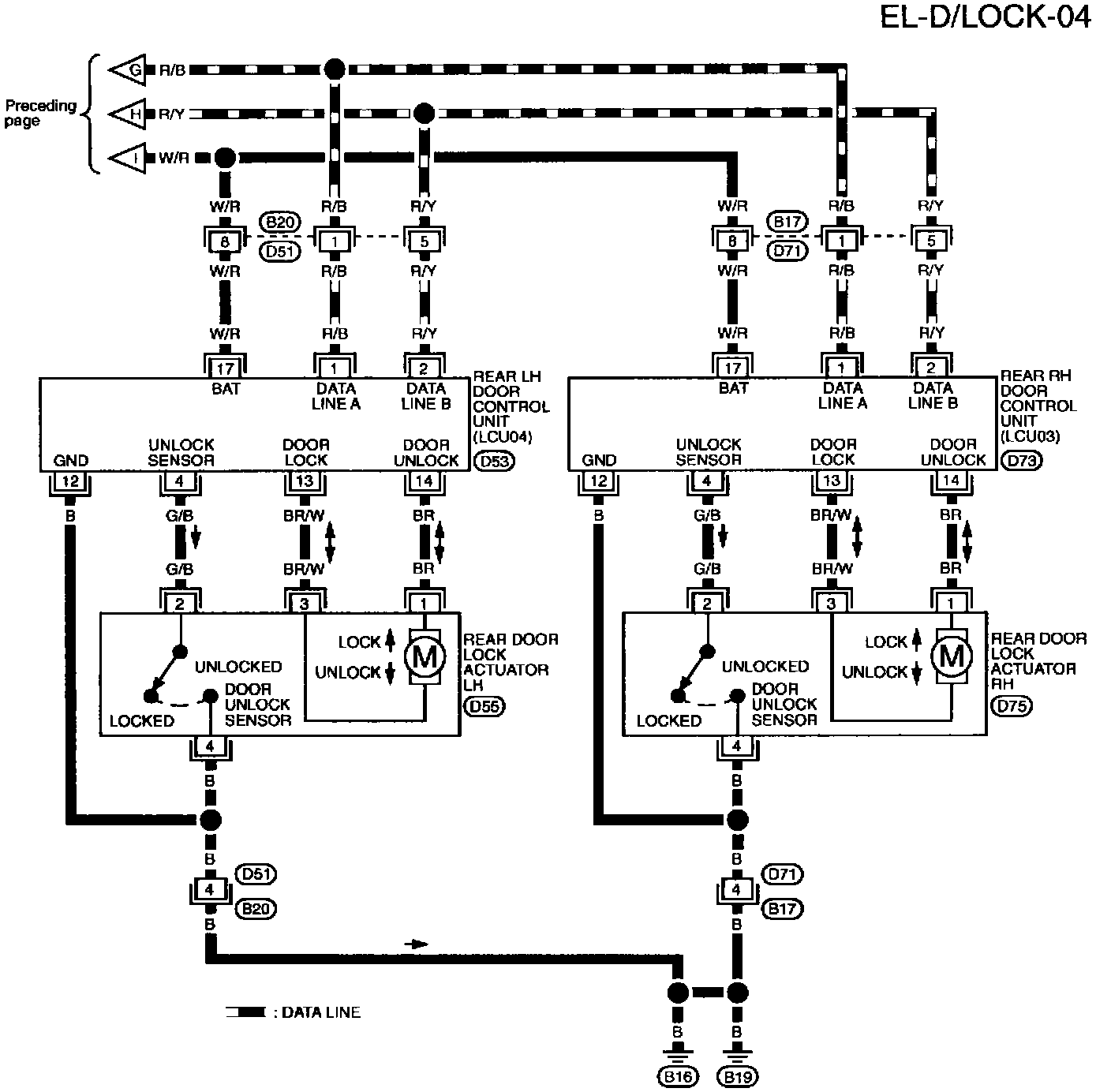

EL-D/LOCK-04 Power Door Lock-IVMS (Part 4 Of 4):
