Automatic Air Conditioner

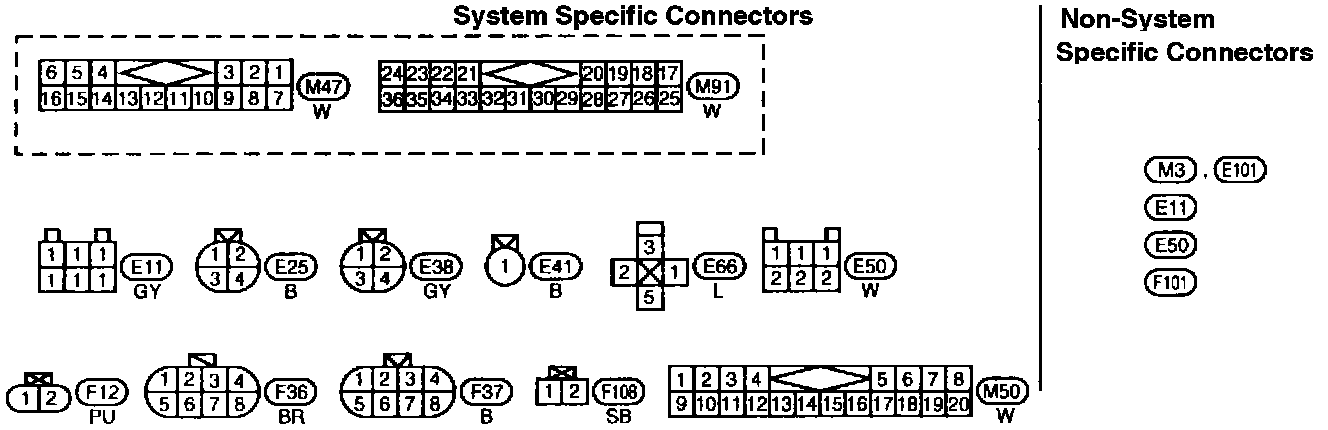

Air Conditioner Auto (Part 1 Of 5):

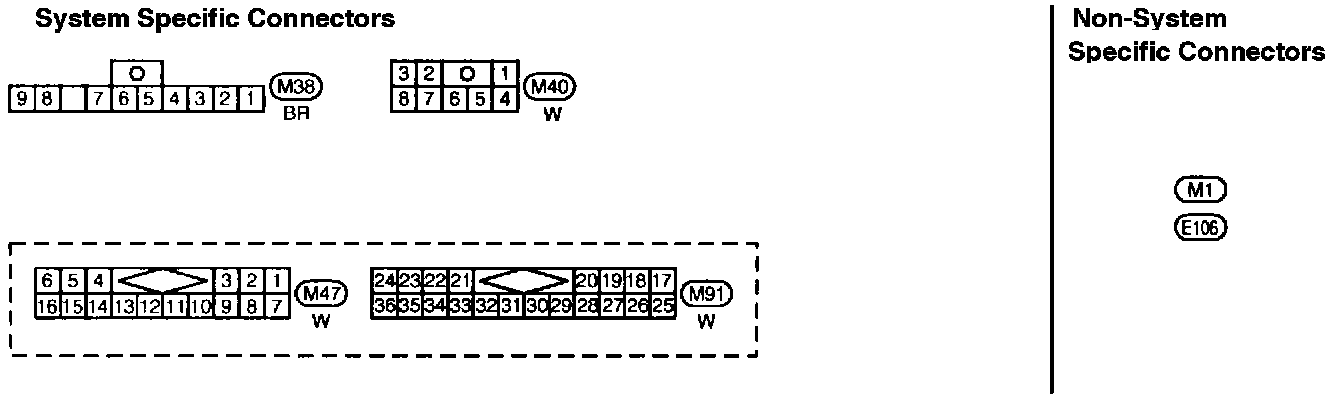

Air Conditioner Auto (Part 2 Of 5):

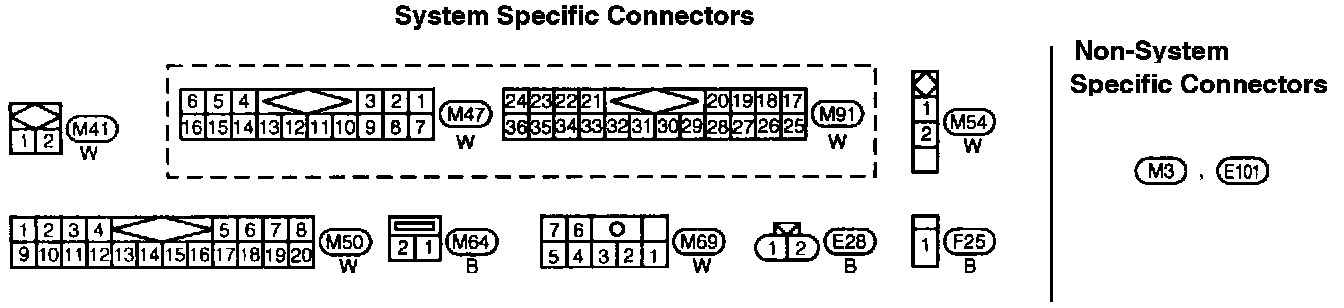

Air Conditioner Auto (Part 3 Of 5):

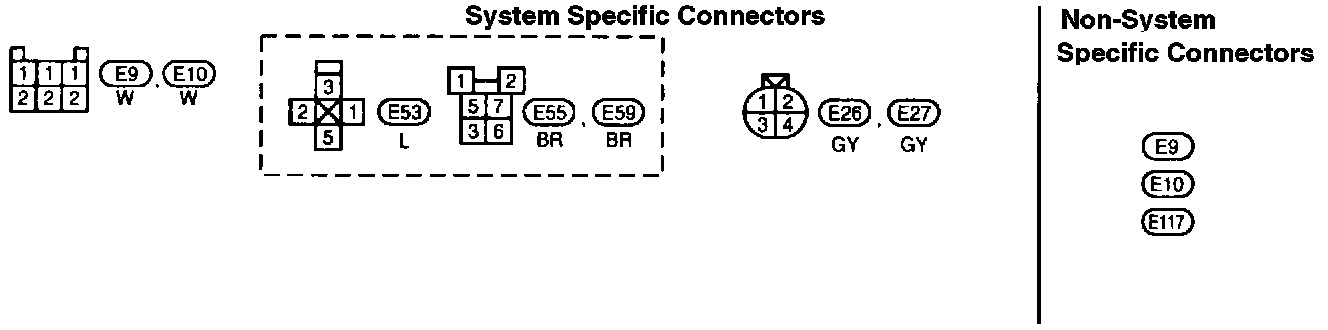

Air Conditioner Auto (Part 4 Of 5):




Air Conditioner Auto (Part 5 Of 5):
