Reading Diagnostic Trouble Codes
HOW TO DISPLAY DIAGNOSIS CODESWithout CONSULT
Refer to TROUBLE DIAGNOSIS WITHOUT CONSULT / DIAGNOSTIC PROCEDURE # 1.
HOW TO CHANGE SELF-DIAGNOSIS MODE
Without CONSULT
From User mode to Diagnosis mode

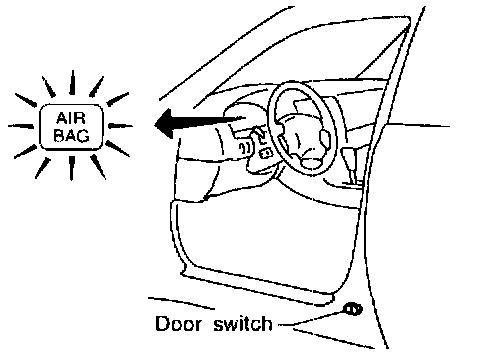

Diagnosis mode activates only when a malfunction is detected, by pressing the driver's door switch at least 5 times within 7 seconds after turning the ignition "ON". SRS will not enter Diagnosis mode if no malfunction is detected.
From Diagnosis mode to User mode
After a malfunction is repaired, switch the ignition "OFF" for at least 1 second, then back "ON". Diagnosis mode returns to User mode.
If switching from Diagnosis mode to User mode is required while malfunction is being detected, switch the ignition "OFF", then back "ON"and press the driver's door switch at least 5 times within 7 seconds.
