Clutch Pedal Assembly

DIMENSIONS

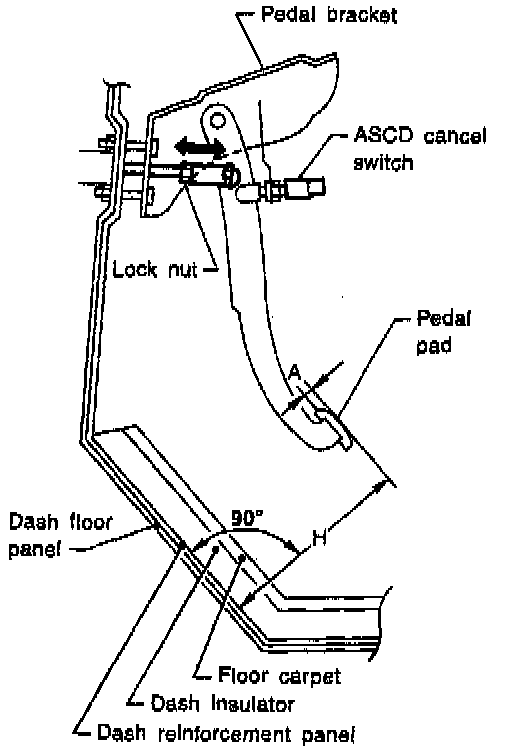

Pedal Height "H": 168 - 175 mm (6.61 - 6.89 inch)

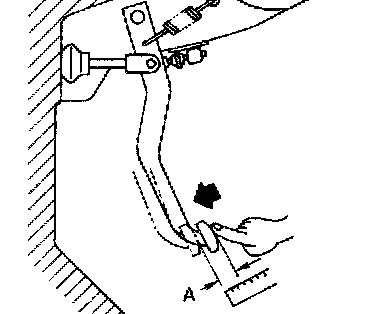

Pedal Free Play "A": 9 - 16 mm (0.35 - 0.63 inch)

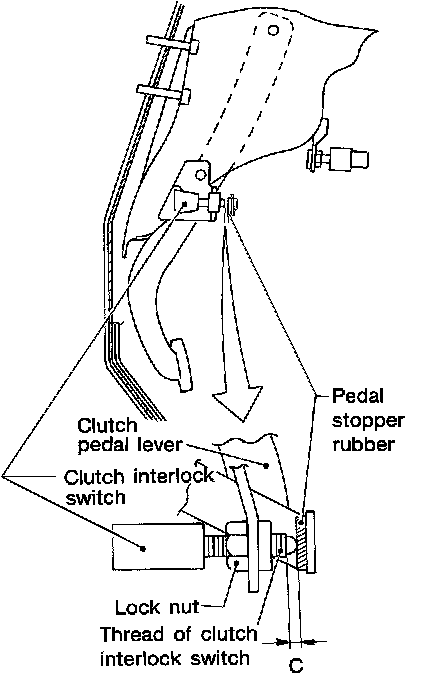

Clearance "C": 0.3 - 1.0 mm (0.012 - 0.039 inch)

TIGHTENING SPECIFICATIONS
Fulcrum Pin Nut: 16 - 22 Nm (12 - 16 ft.lbs.)
Pedal Bracket: 13 - 16 Nm (9 - 12 ft.lbs.)
Pedal Stopper: 16 - 22 Nm (12 - 16 ft.lbs.)
