Tie Rod

Fig. 2:

Fig.1:

GENERAL SPECIFICATIONS
Inner Joint:
Swinging Force "A" [2]: 6.4 - 50.0 N (1.44 - 11.24 lbs.)
Axial End Play "C": 0 mm (0 inch)
Outer Joint:
Swinging Force "A" [1]: 6.59 - 63.7 N (1.481 - 14.320 lbs.)
Turning (Rotating) Torque "B": 0.3 - 2.9 Nm (2.6 - 26.0 ft. lbs.)
Axial End Play "C": 0.5 mm (0.020 inch) or less

[1]: Measured at cotter pin hole.

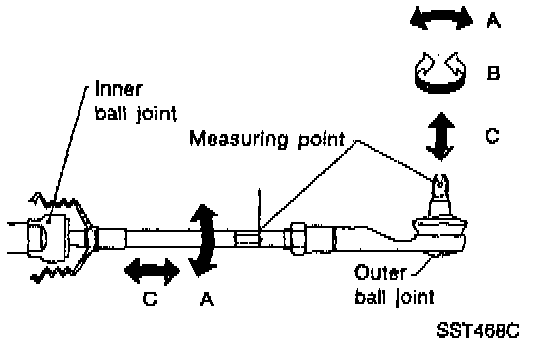

[2]: Measuring point "l" = 172 mm (6.77 inch). Refer to illustration.

TIGHTENING SPECIFICATIONS
Outer: 29 - 39 Nm (22 - 29 ft. lbs.)
Inner: 78 - -98 Nm (58 - 72 ft. lbs.)
