EL-AUDIO
EL-AUDIO

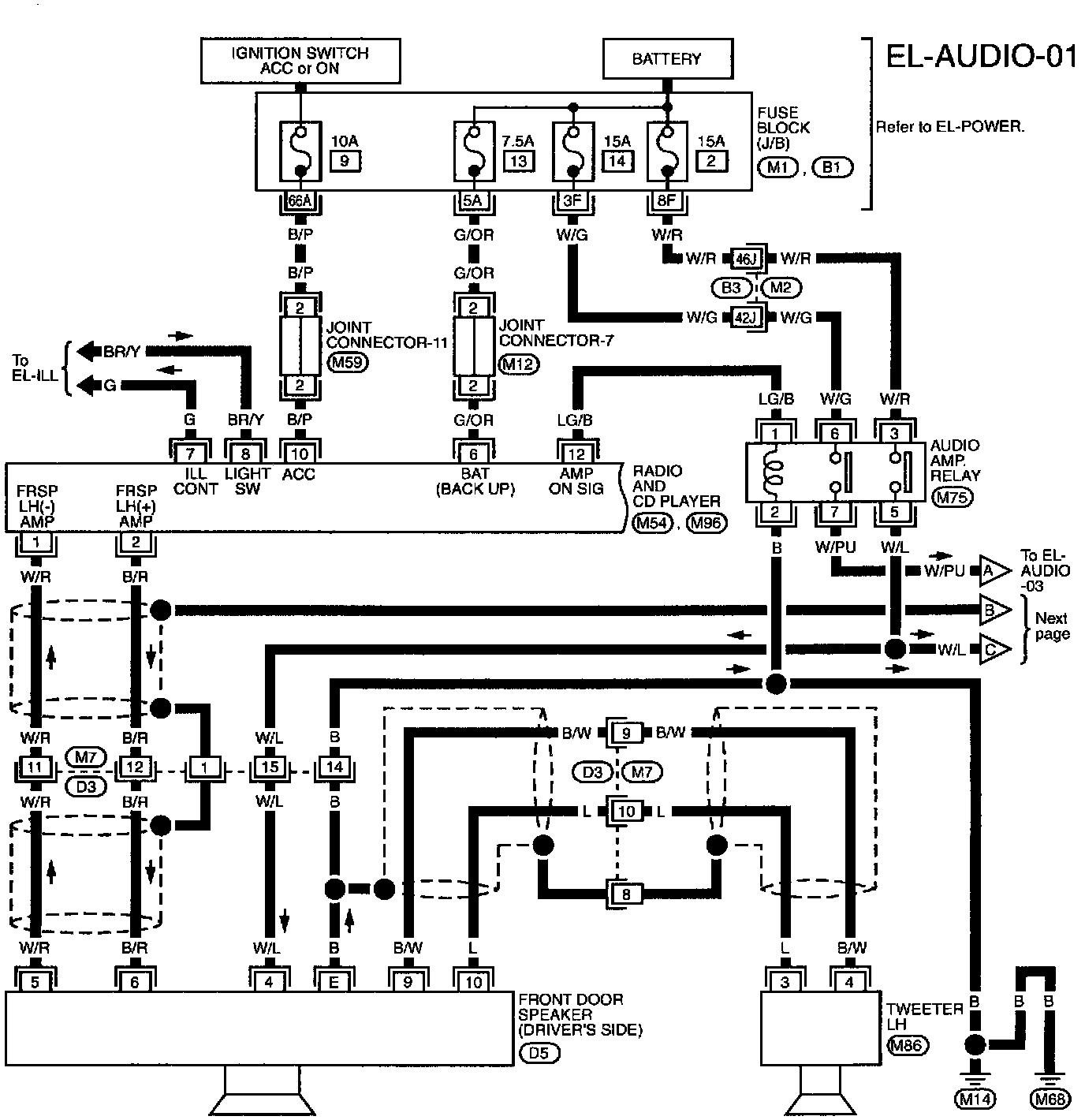

EL-AUDIO-01 Audio : Bose System (Part 1 Of 3):
EL-AUDIO-02 Audio : Bose System (Part 2 Of 3):
EL-AUDIO-03 Audio : Bose System (Part 3 Of 3):
