EL-DTRL (For Canada)
EL-DTRL (For Canada)

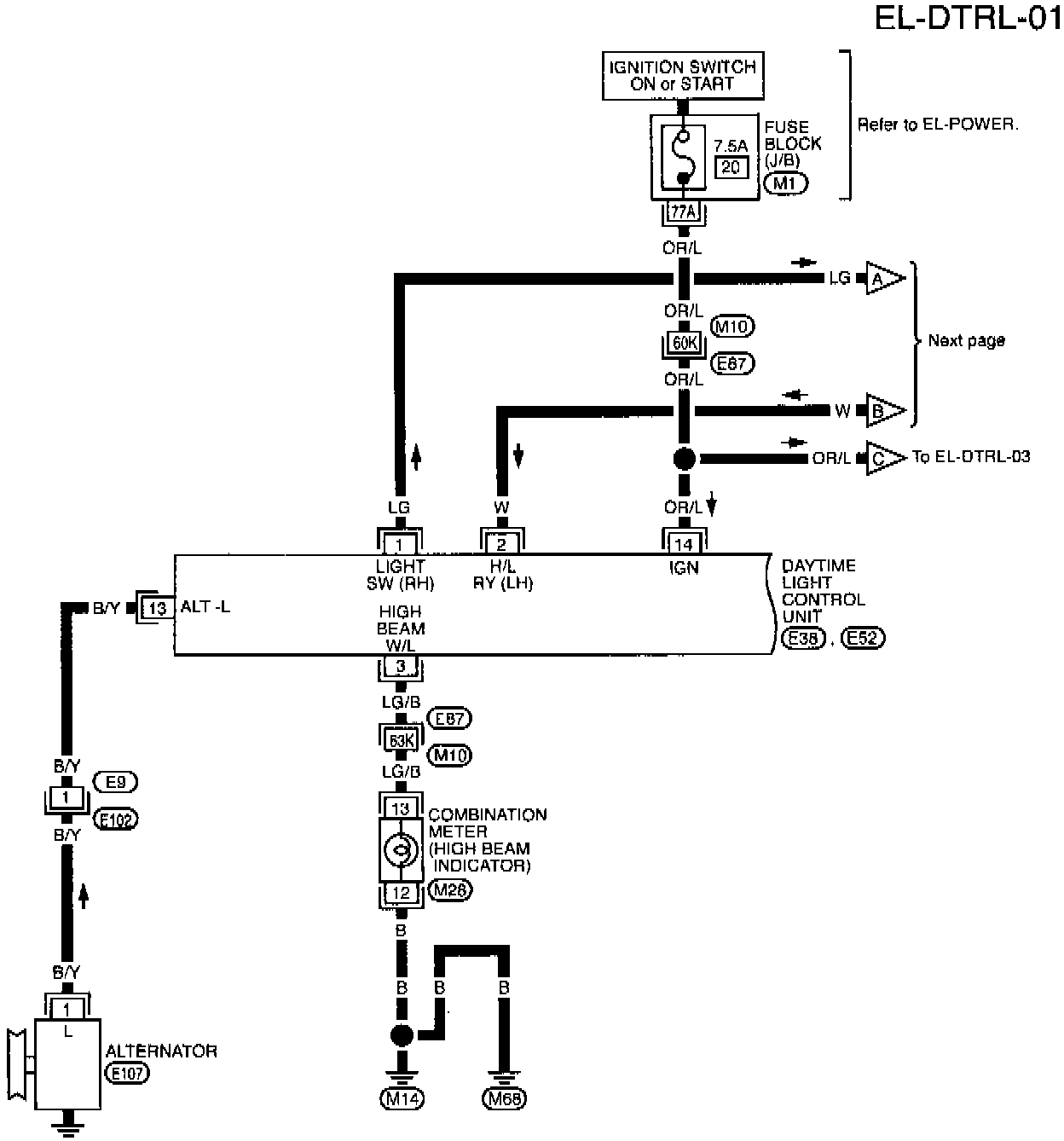

EL-DTRL-01 DTRL For Canada (Part 1 Of 5):

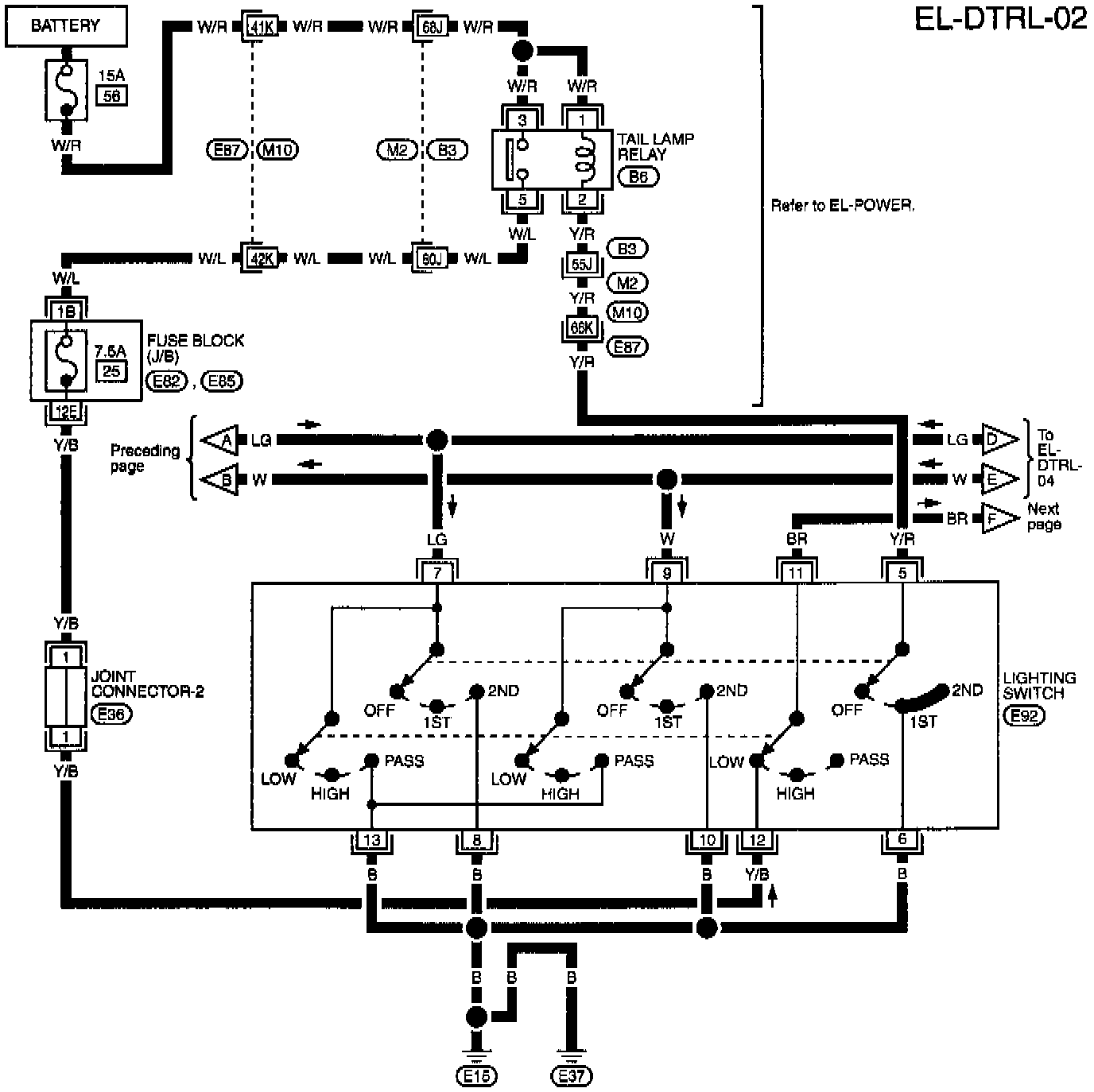

EL-DTRL-02 DTRL For Canada (Part 2 Of 5):

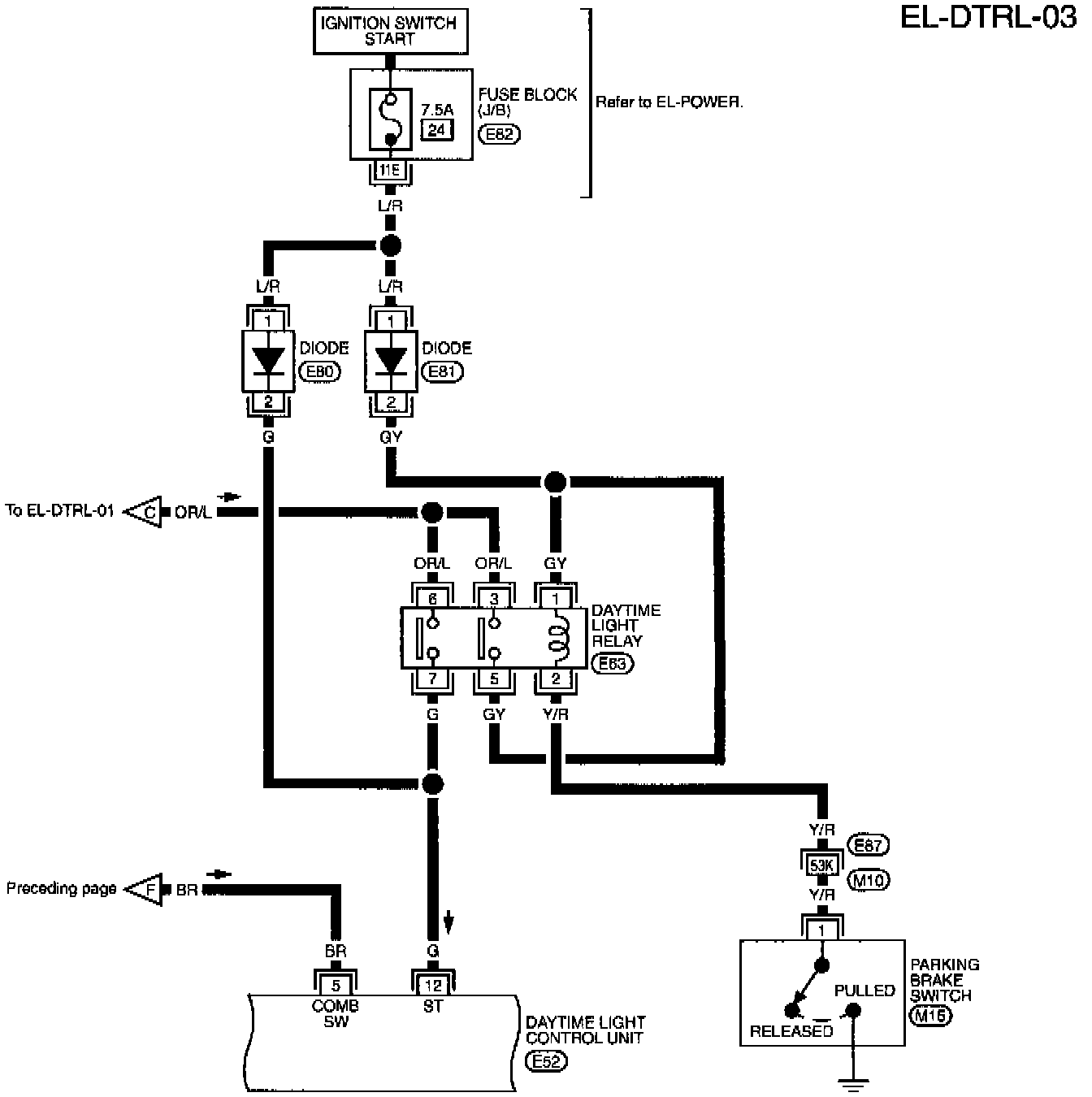

EL-DTRL-03 DTRL For Canada (Part 3 Of 5):

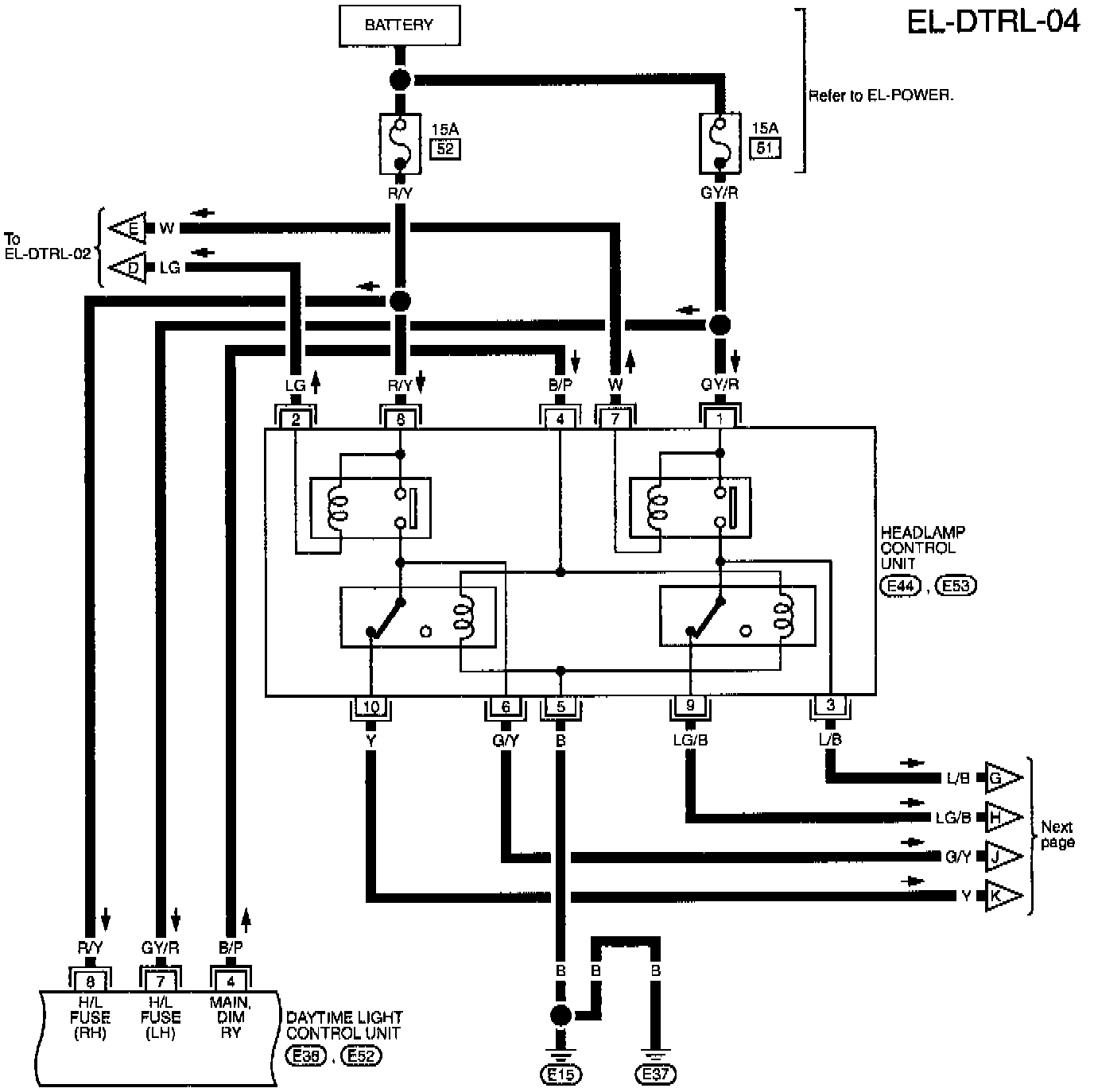

EL-DTRL-04 DTRL For Canada (Part 4 Of 5):

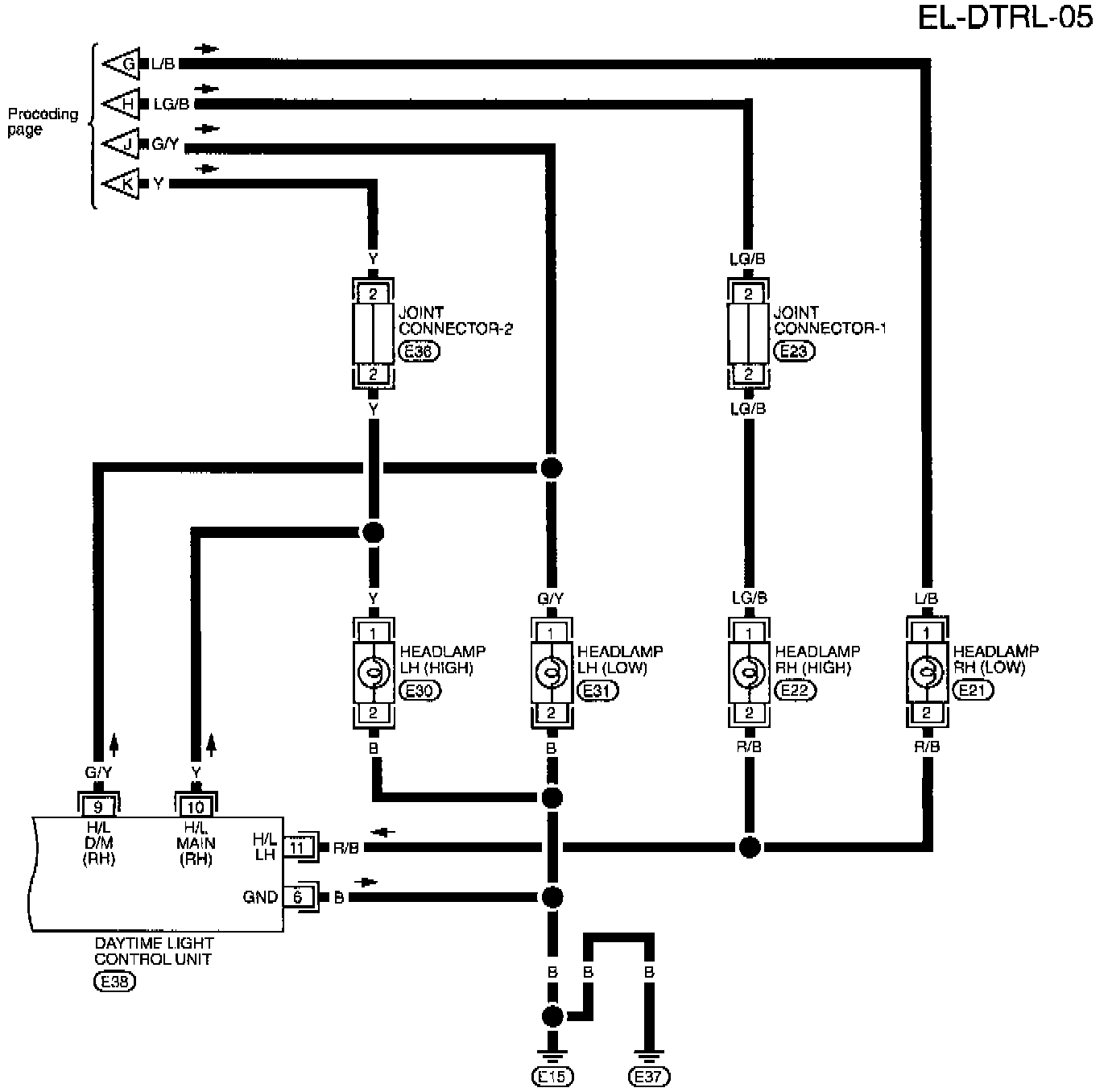

EL-DTRL-05 DTRL For Canada (Part 5 Of 5):
