EL-PHONE
EL-PHONE

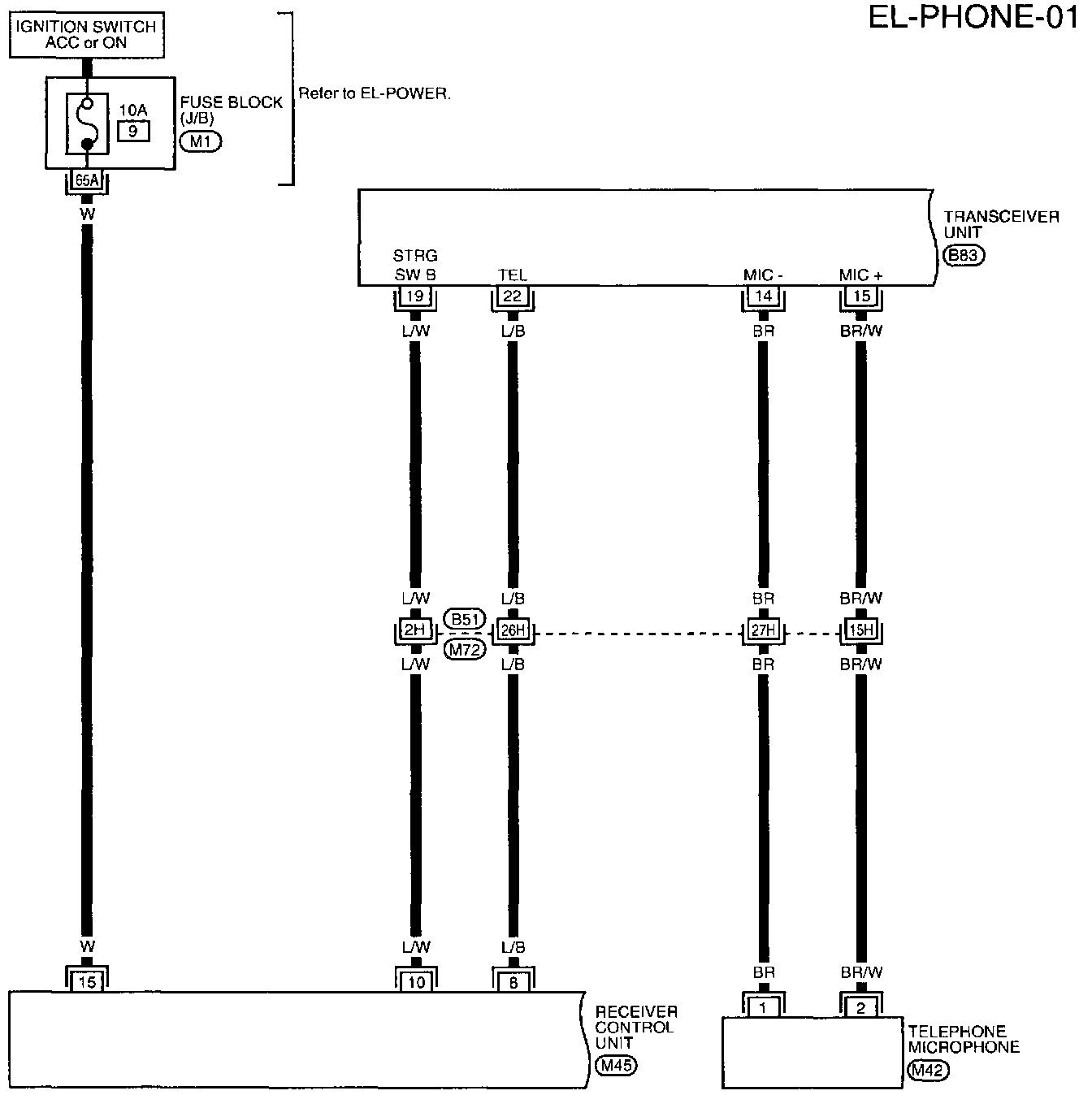

EL-PHONE-01 Telephone (Part 1 Of 4):

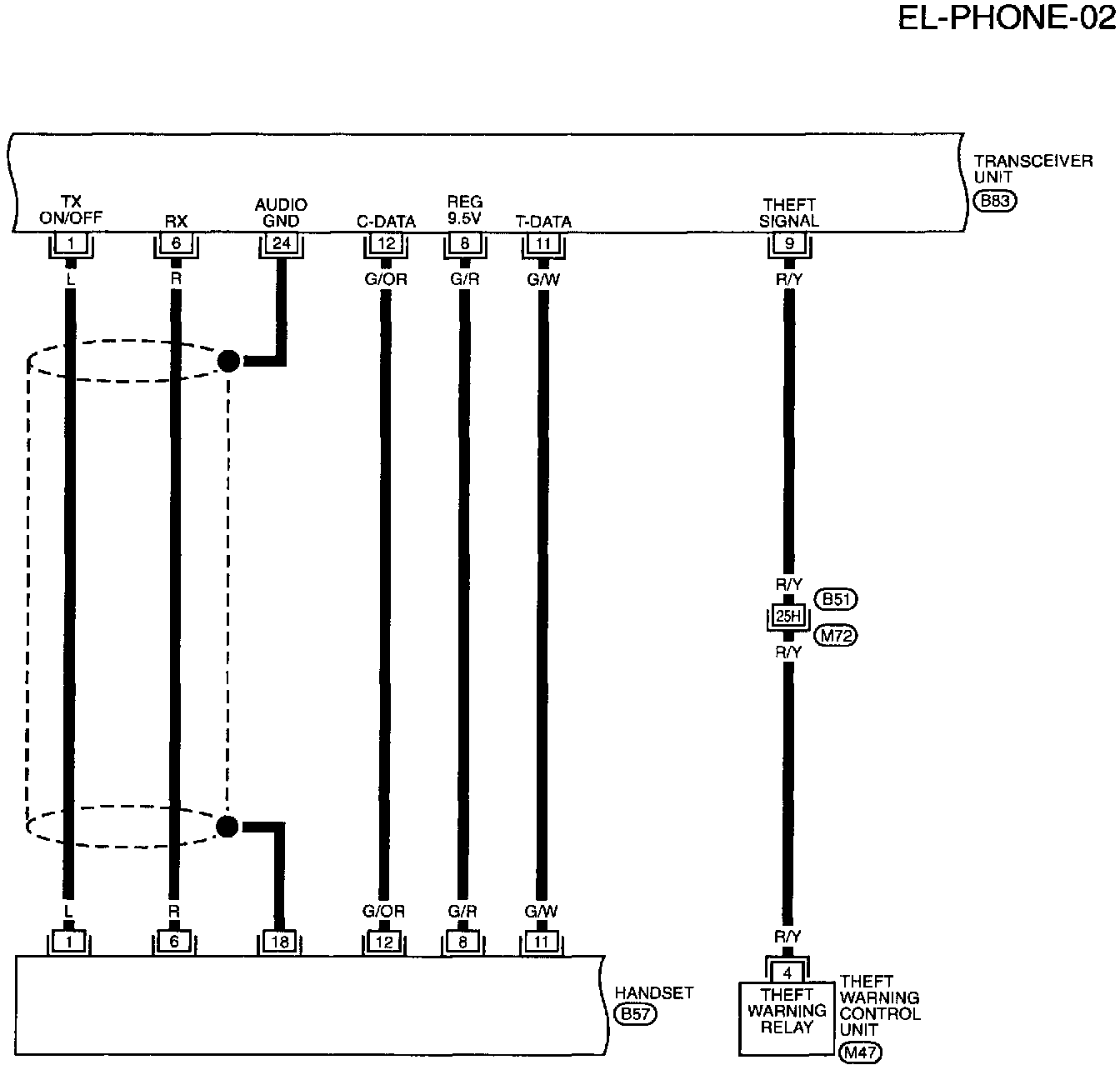

EL-PHONE-02 Telephone (Part 2 Of 4):
EL-PHONE-03 Telephone (Part 3 Of 4):

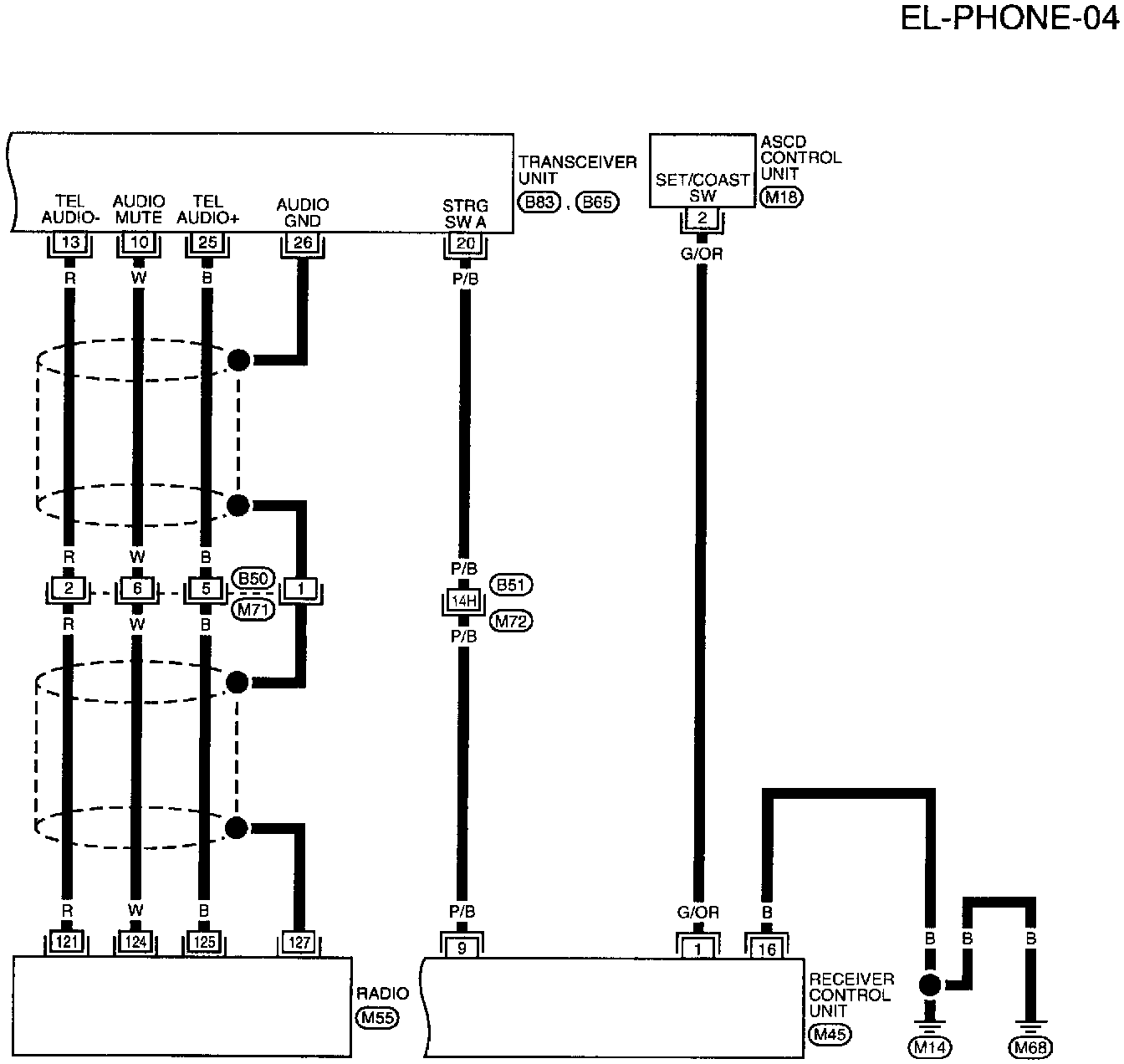

EL-PHONE-04 Telephone (Part 4 Of 4):
