EL-SROOF
EL-SROOF

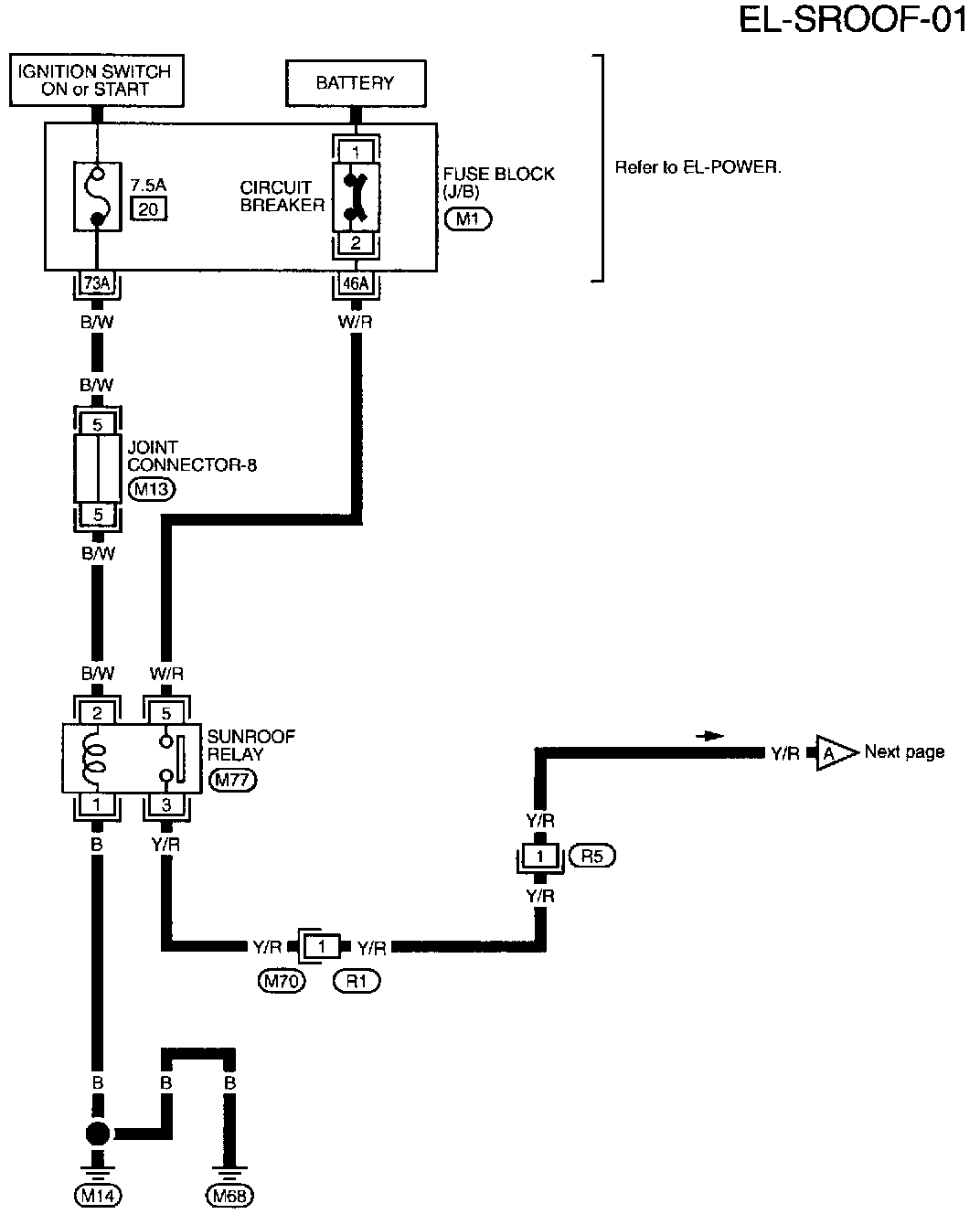

EL-SROOF-01 Electric Sunroof (Part 1 Of 2):

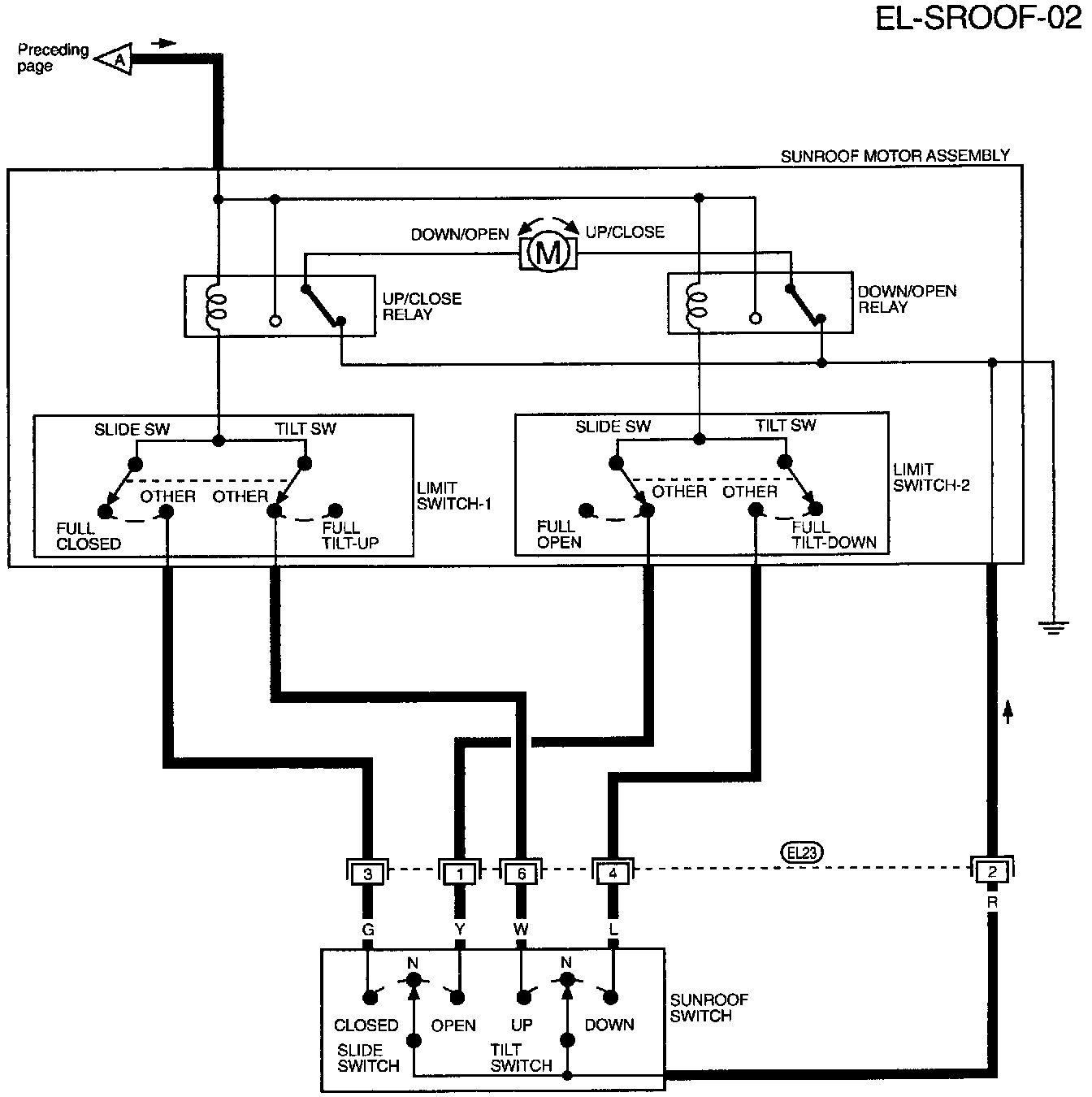

EL-SROOF-02 Electric Sunroof (Part 2 Of 2):
