Electrical Diagrams

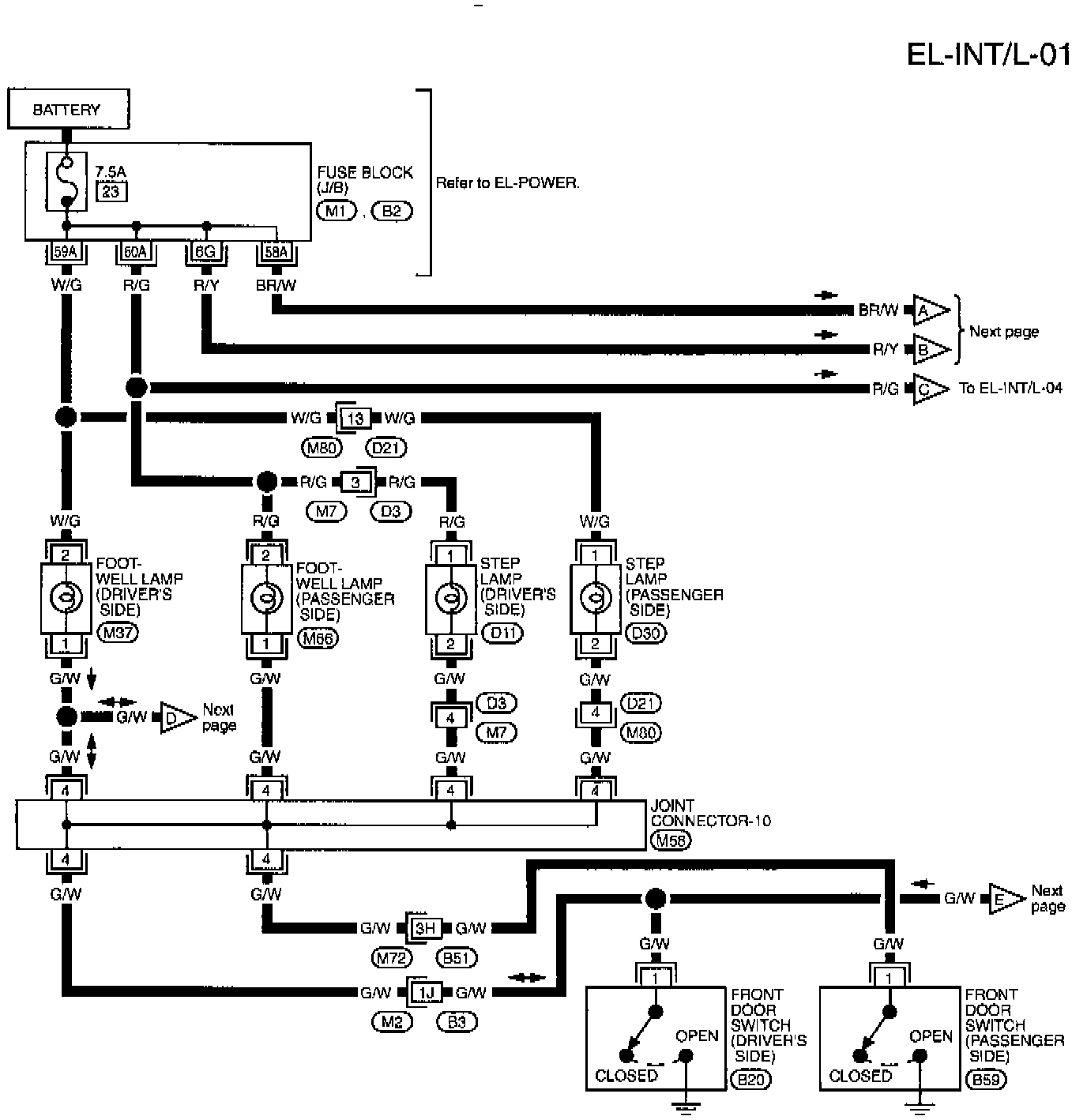

EL-INT/L-01 Interior, Spot And Trunk Room Lamps (Part 1 Of 4):

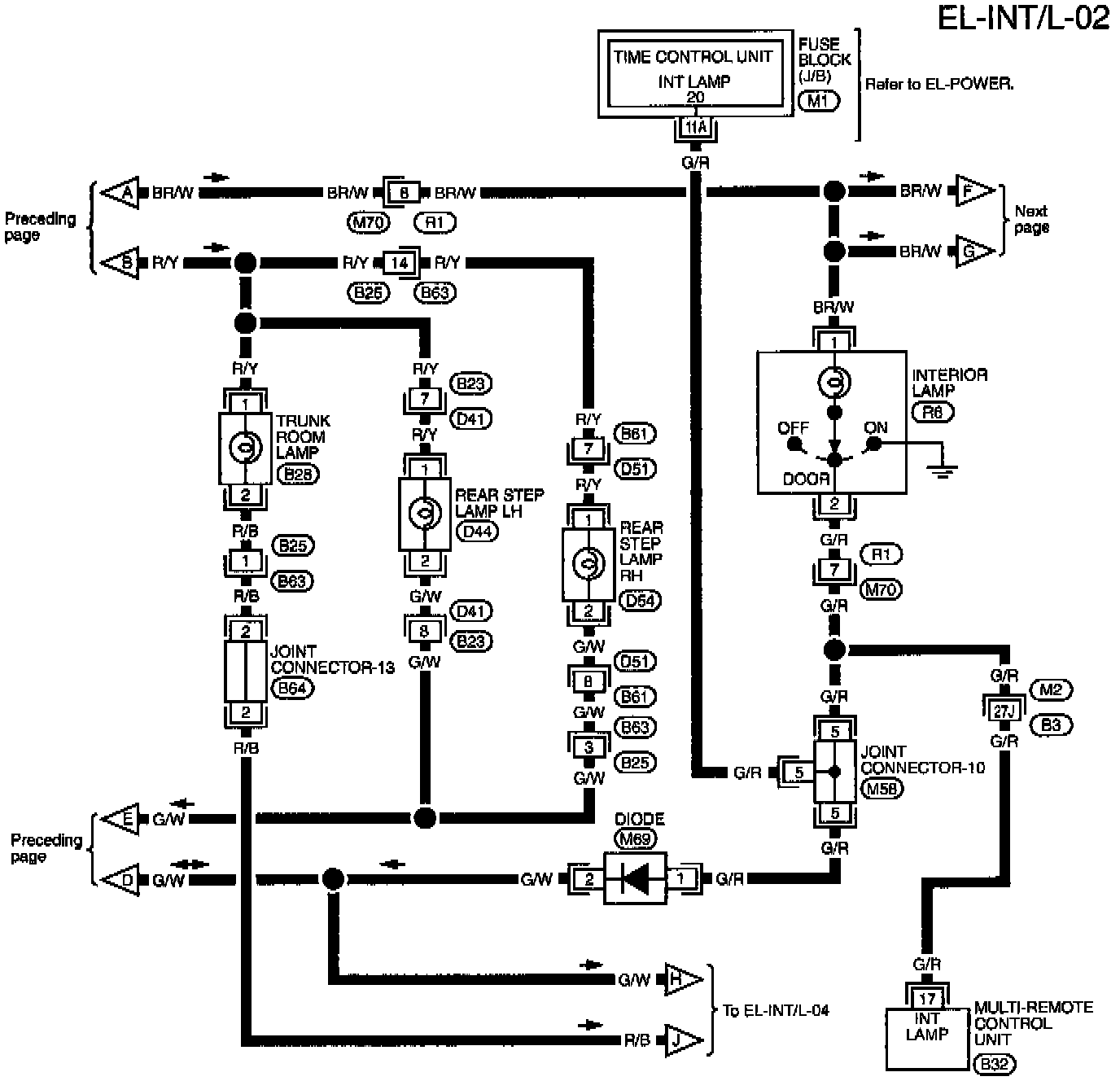

EL-INT/L-02 Interior, Spot And Trunk Room Lamps (Part 2 Of 4):

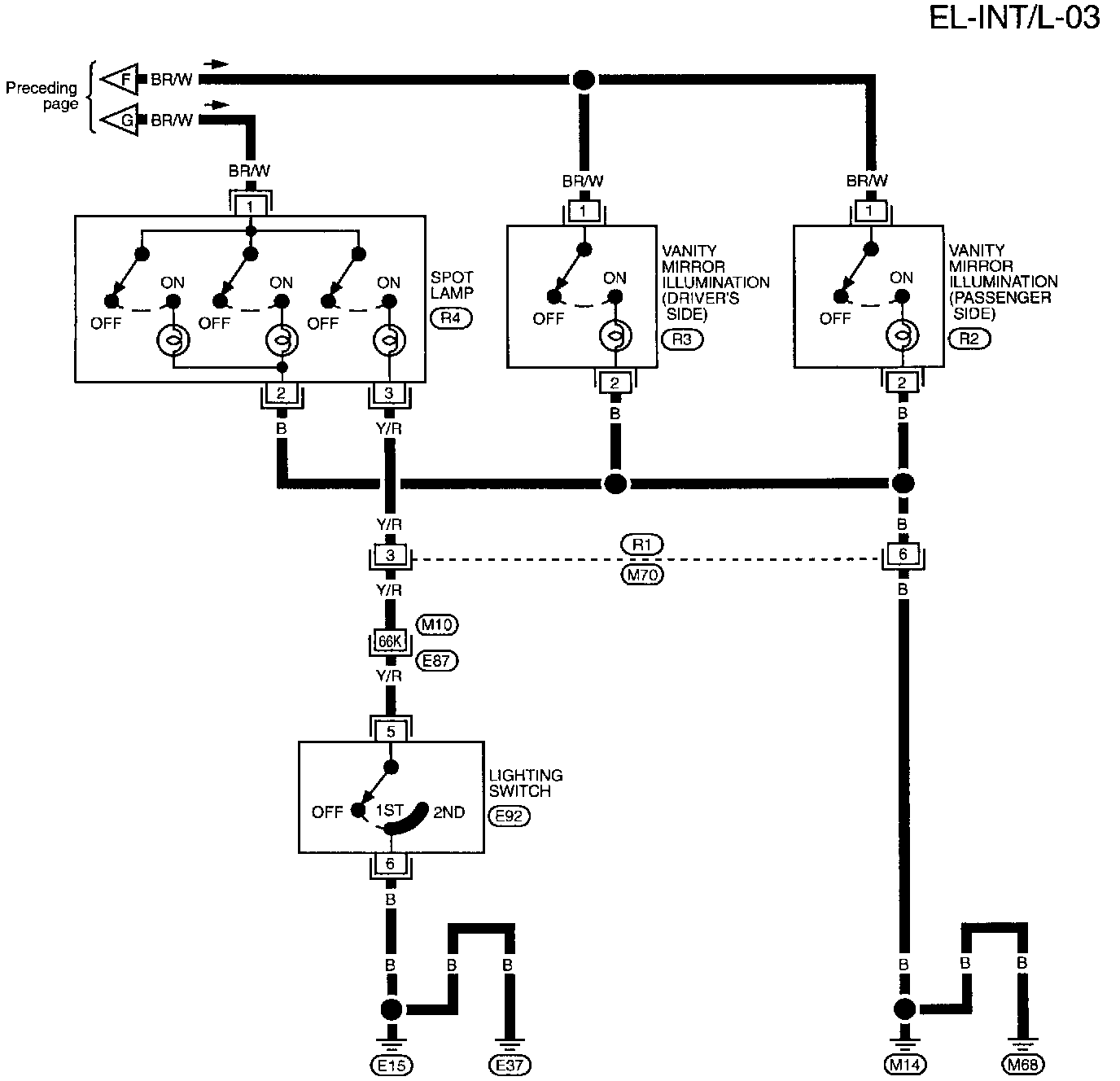

EL-INT/L-03 Interior, Spot And Trunk Room Lamps (Part 3 Of 4):

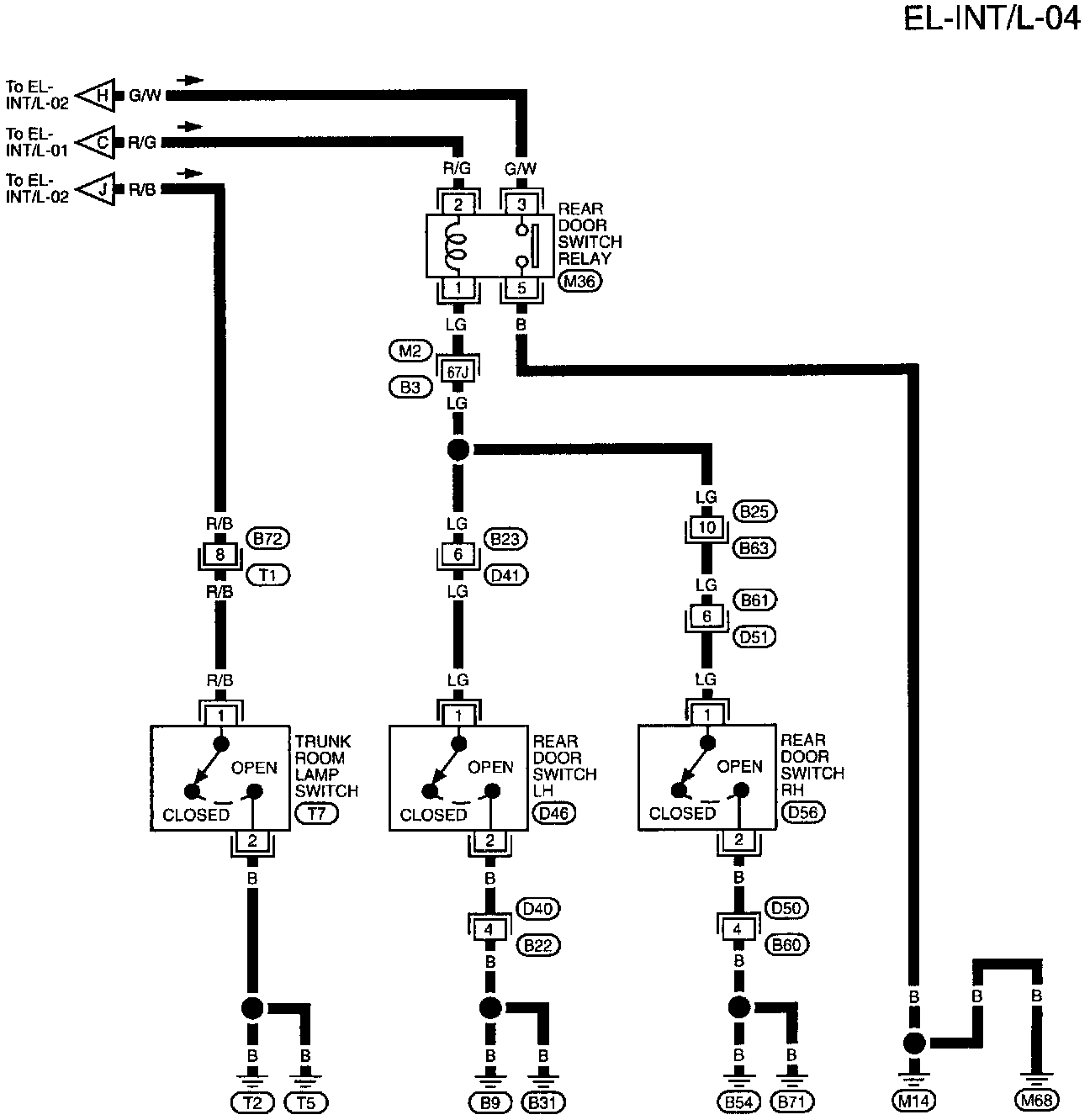

EL-INT/L-04 Interior, Spot And Trunk Room Lamps (Part 4 Of 4):
