Refrigerant Oil Addition

The lubricant in the compressor circulates through the system with the refrigerant. Add lubricant to compressor when replacing any component or after a large gas leakage occurred. It is important to maintain the specified amount.
If lubricant quantity is not maintained properly, the following malfunctions may result:
^ Lack of lubricant: May lead to a seized compressor
^ Excessive lubricant: Inadequate cooling (thermal exchange interference)

LUBRICANT

Name: Nissan A/C System Oil Type S
Part number: KLH00-PAGS0







CHECKING AND ADJUSTING

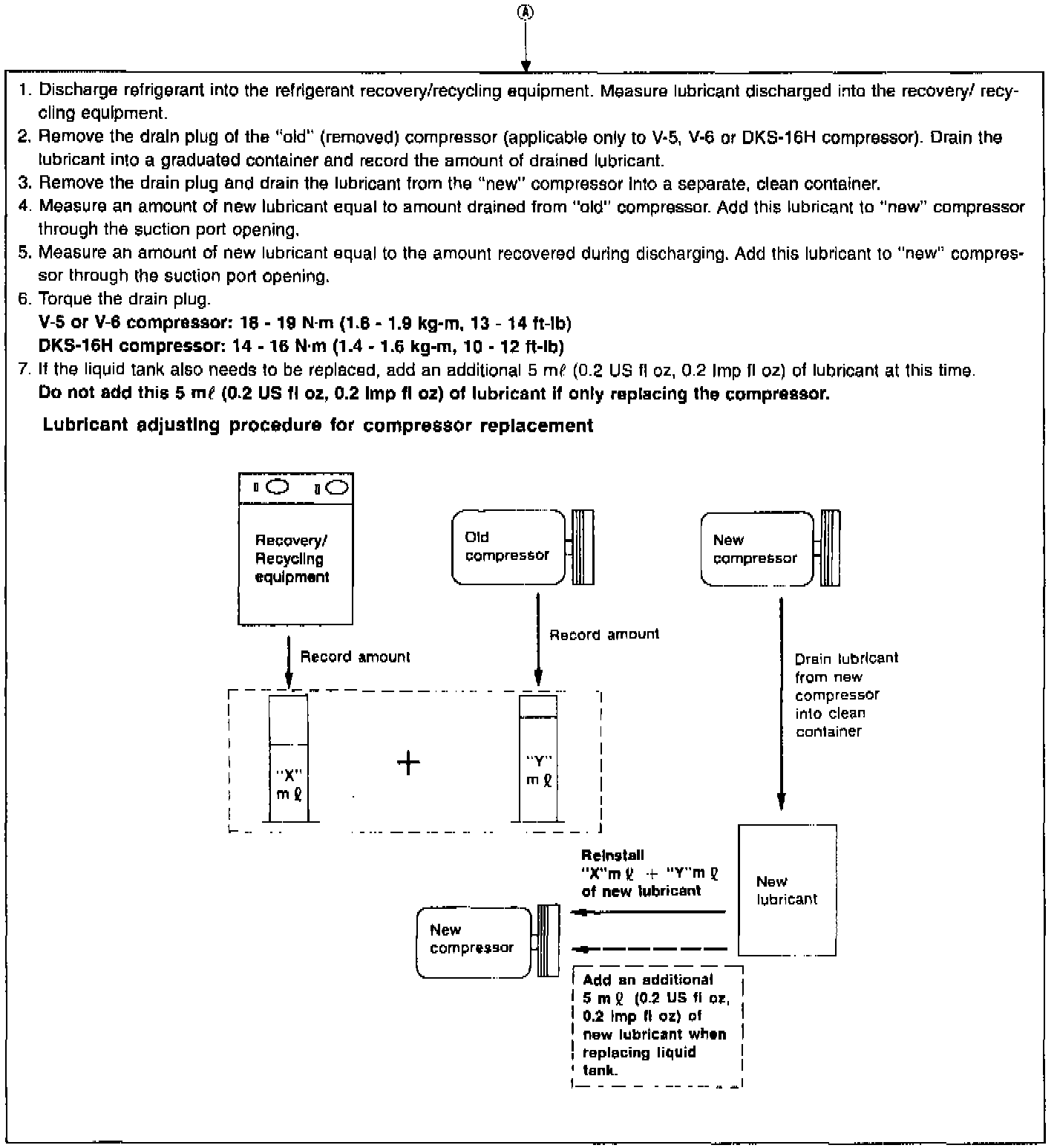

Adjust the lubricant quantity according to the flowchart shown.
