Tail Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
EL-TAIL/L-01 Clearance, License, Tail (Part 1 Of 3):

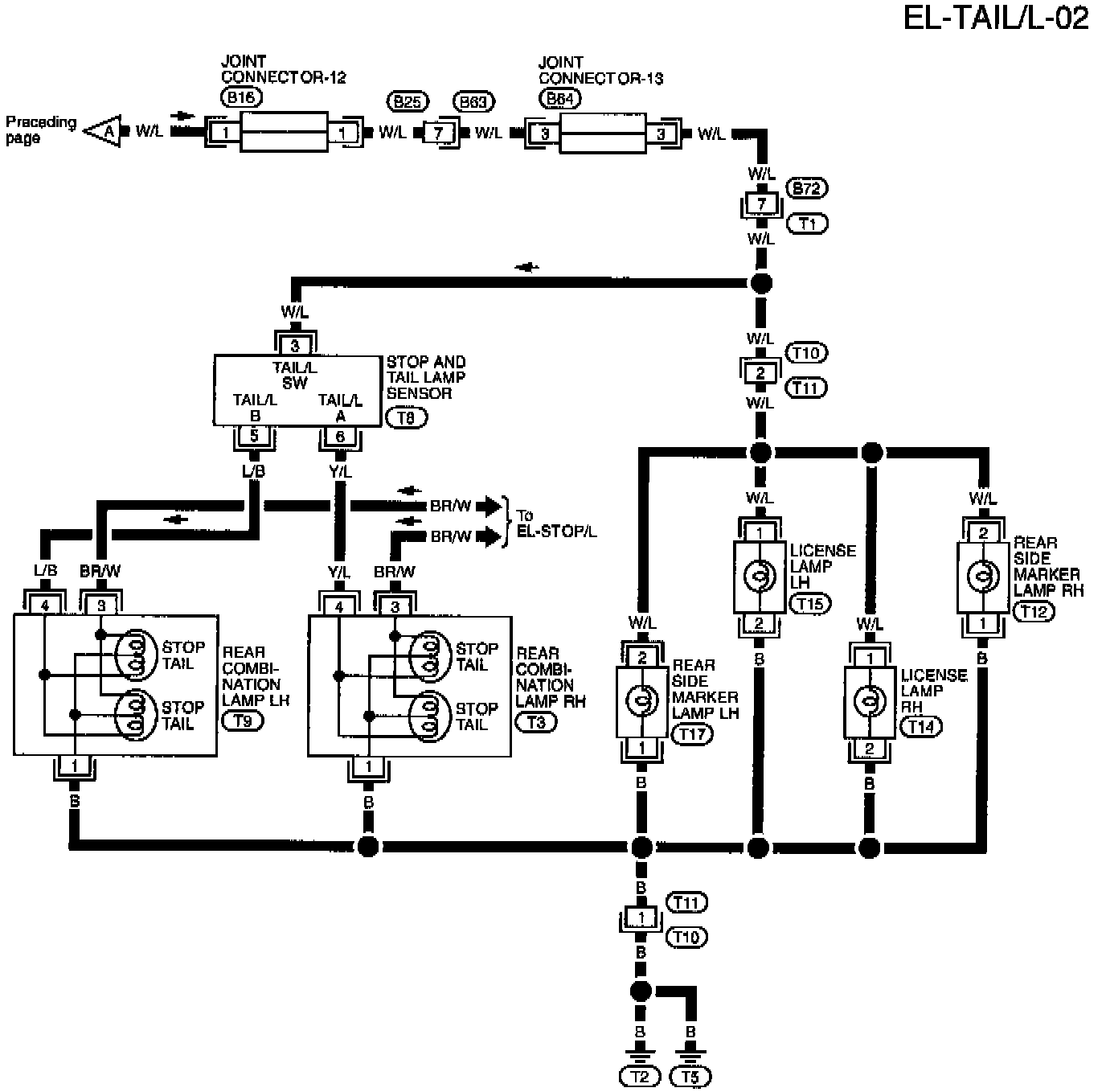

EL-TAIL/L-02 Clearance, License, Tail Lamps (Part 2 Of 3):

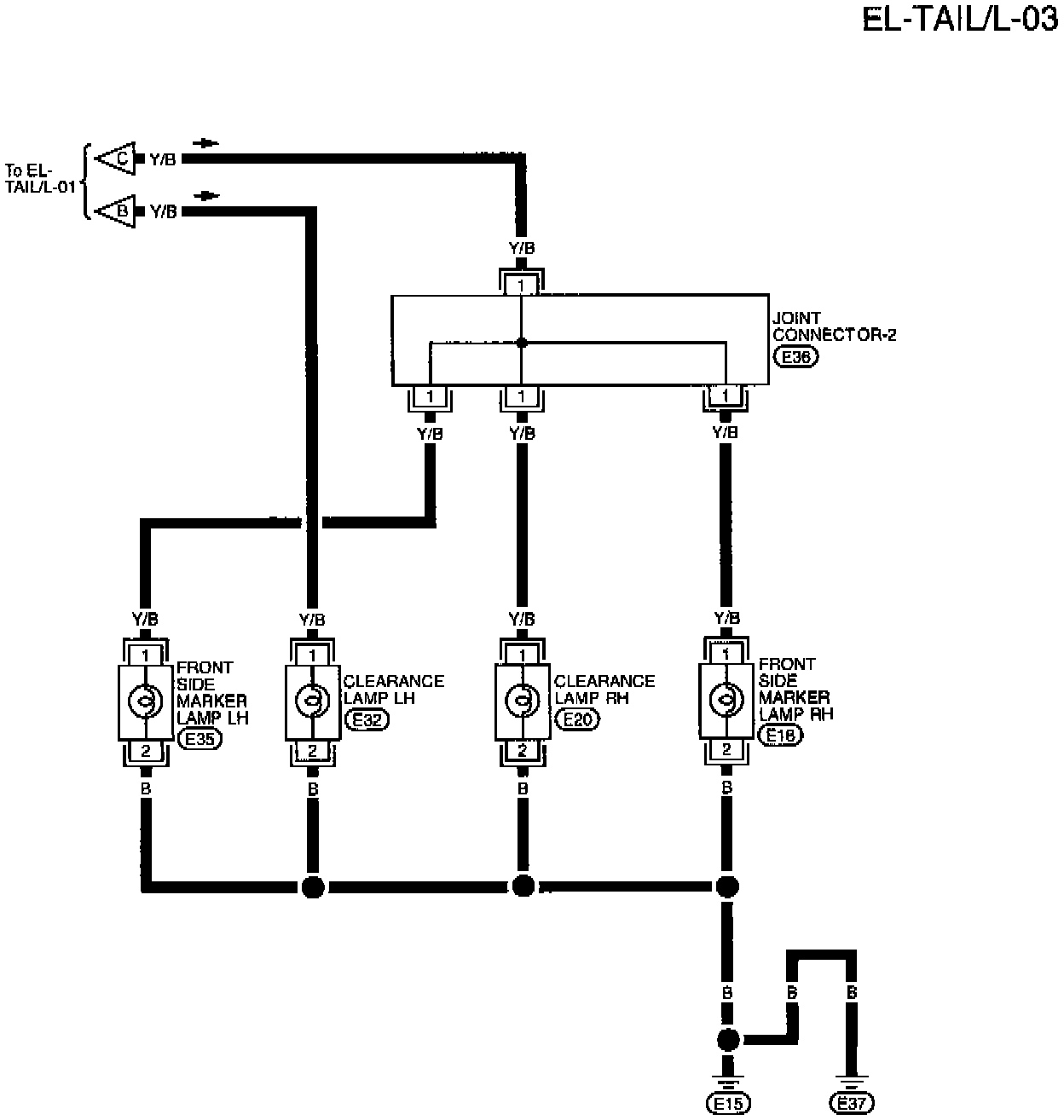

EL-TAIL/L-03 Clearance, License And Tail Lamps (Part 3 Of 3):
