Pinout Values and Diagnostic Parameters

INSPECTION OF A/T CONTROL UNIT

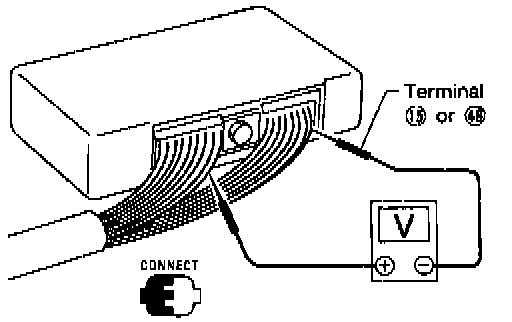

- Measure voltage between each terminal and terminal (15) or (48) by following "A/T CONTROL UNIT INSPECTION TABLE".




PIN CONNECTOR TERMINAL LAYOUT

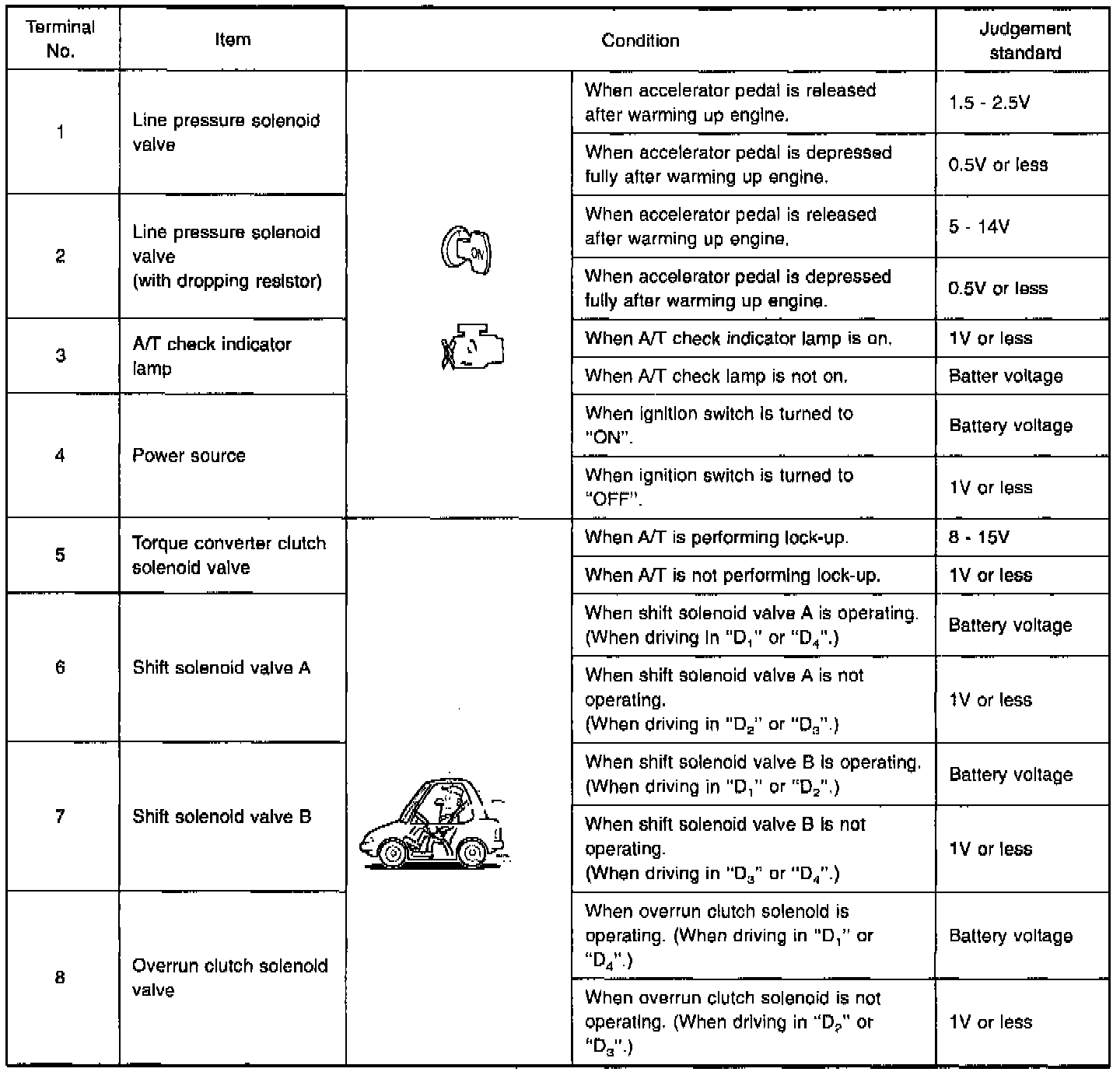

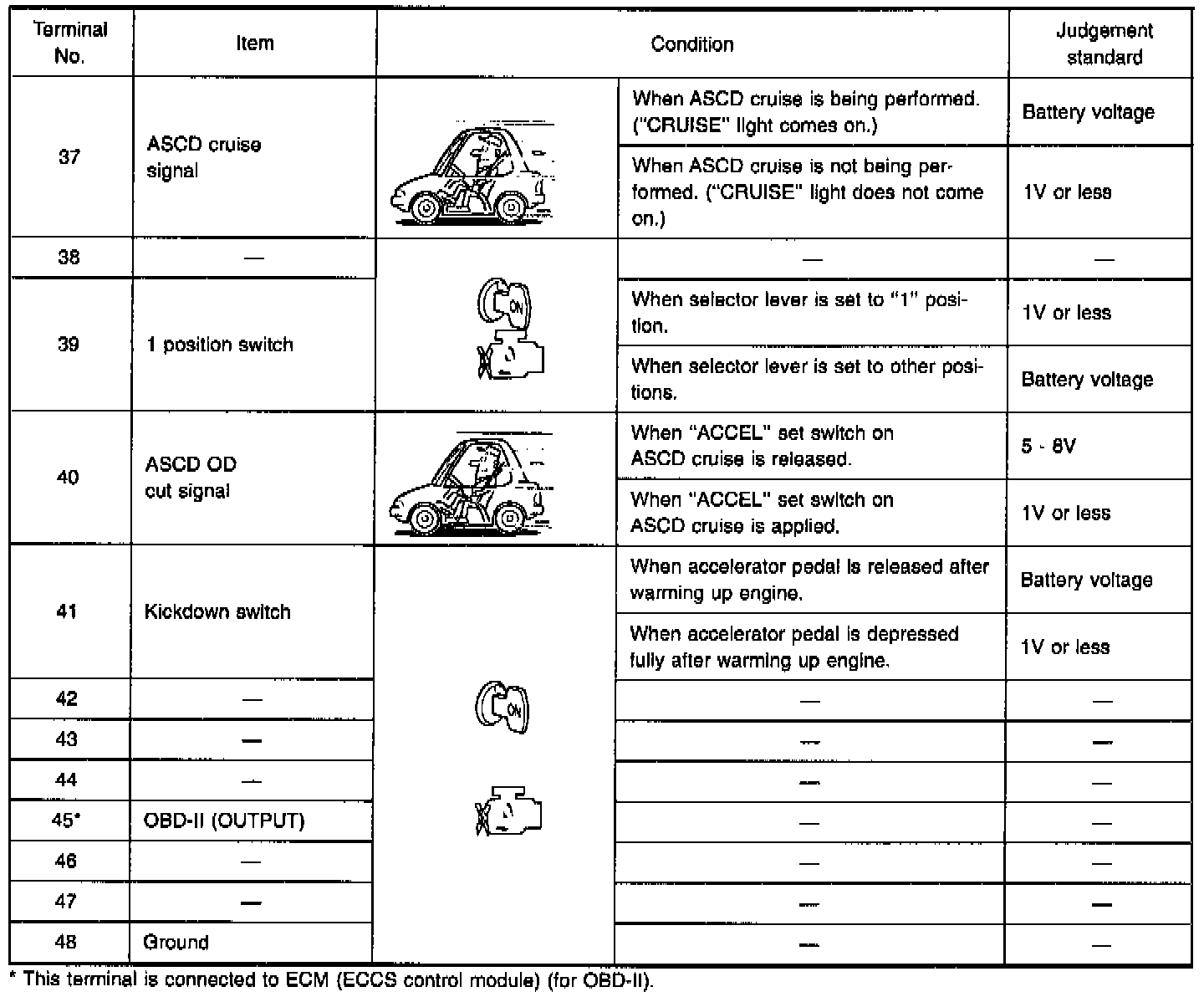

A/T CONTROL UNIT INSPECTION TABLE
