Steering Column

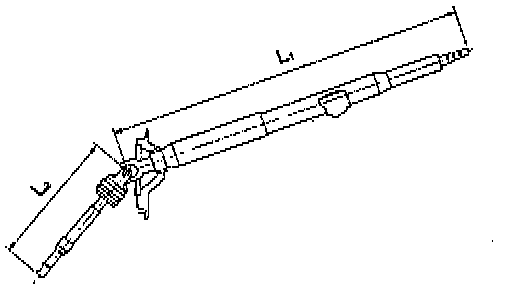

DIMENSIONS
Upper Shaft Length "L1": 642.2 - 643.8 mm (25.28 - 25.35 inch)
Lower Shaft Length "L2": 326.4 - 328.0 mm (12.85 - 12.91 inch)

TIGHTENING SPECIFICATIONS
Lower Joint: 24 - 29 Nm (17 - 22 ft. lbs.)
Tilt Bracket Lower Bolt: 8 - 11 Nm (69 - 95 inch lbs.)
Two Column Bracket Bolts: 13 - 18 Nm (9 - 13 ft. lbs.)
