Self-Diagnostic Result Mode

SELF-DIAGNOSIS
After performing this procedure, place check marks for results on the "DIAGNOSTIC WORKSHEET".

SELF-DIAGNOSTIC PROCEDURE WITH CONSULT
1. Turn on CONSULT.

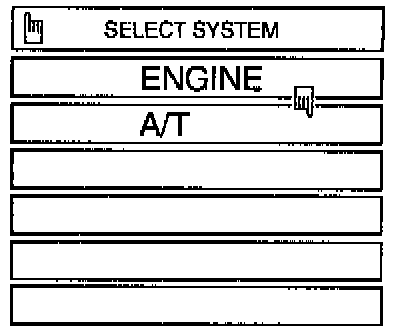

2. Touch "A/T".

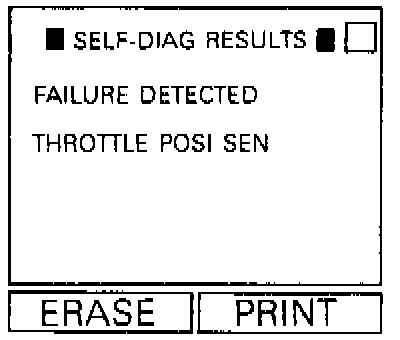

3. Touch "SELF-DIAG RESULTS".

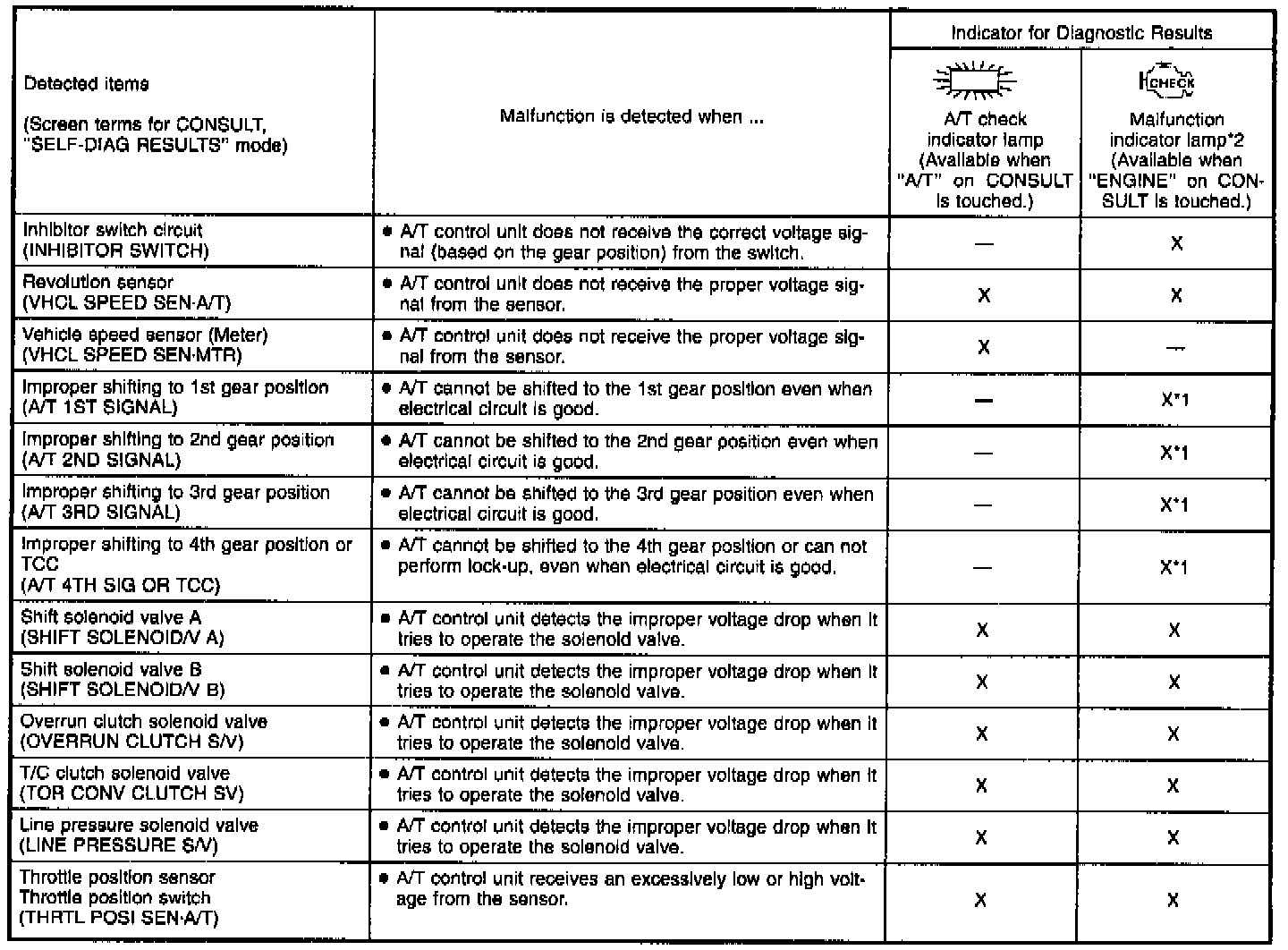

Display shows malfunction experienced since the last erasing operation.







CONSULT performs REAL-TIME SELF-DIAGNOSIS.
Also, any malfunction detected while in this mode will be displayed at real time.
