Home >> Infiniti >> 1997 >> J30t V6-2960cc 3.0L DOHC MFI (VG30DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Name >> EC-CANI/V

EC-CANI/V

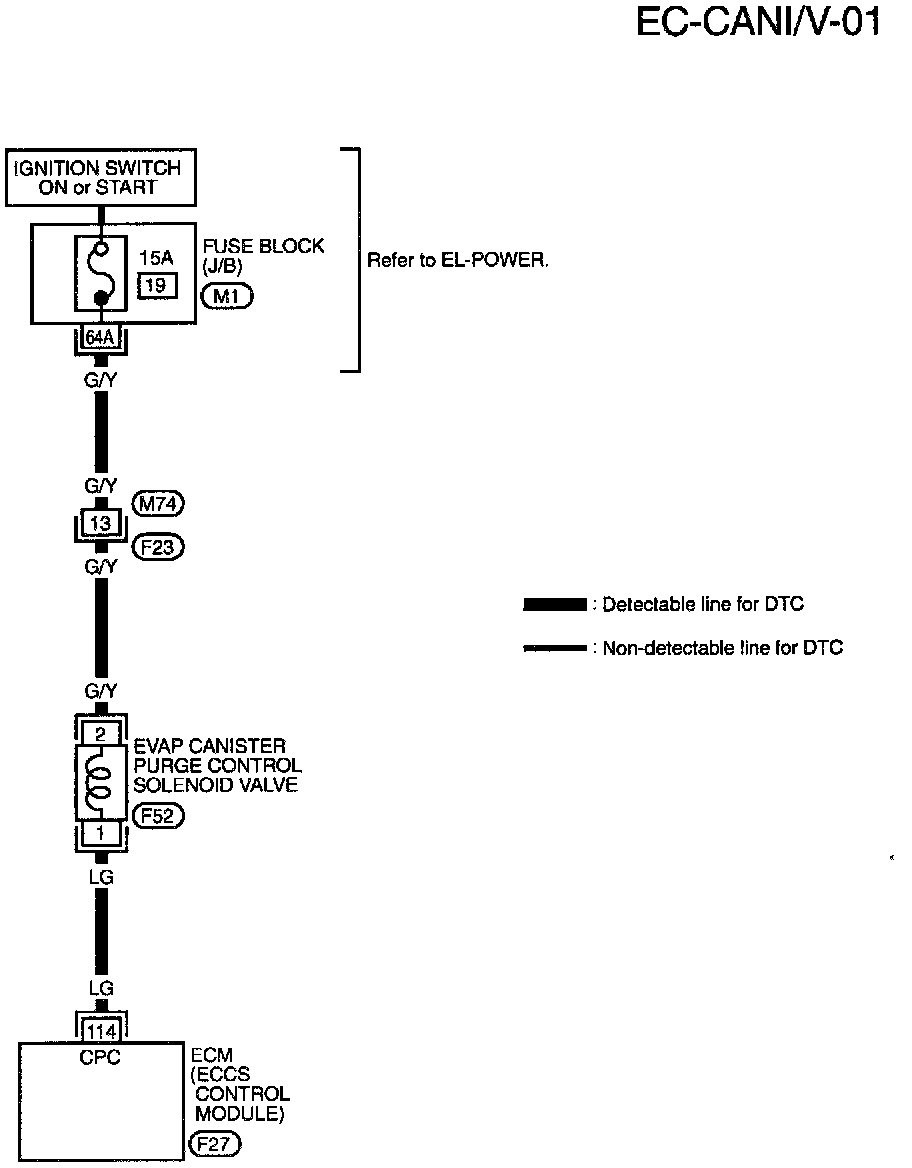

EC-CANI/V-01 Evaporative Emission (EVAP) Canister Purge Control Solenoid Valve (DTC:0807):
