Home >> Infiniti >> 1997 >> J30t V6-2960cc 3.0L DOHC MFI (VG30DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Name >> EC-FPCM

EC-FPCM

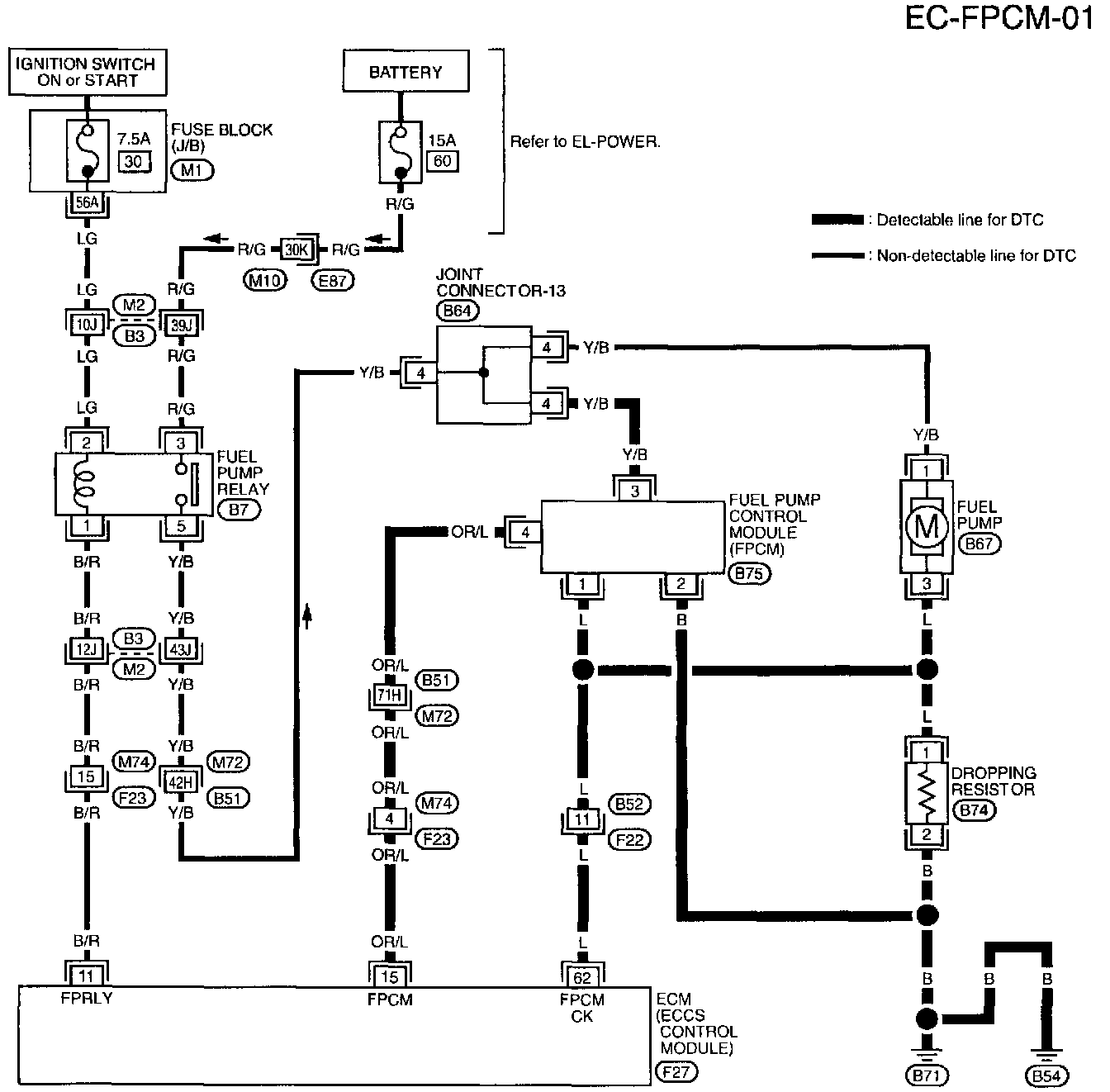

EC-FPCM-01 Fuel Pump Control Module (FPCM) (DTC:1305):
