Home >> Infiniti >> 1997 >> J30t V6-2960cc 3.0L DOHC MFI (VG30DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Name >> EC-PNP/SW

EC-PNP/SW

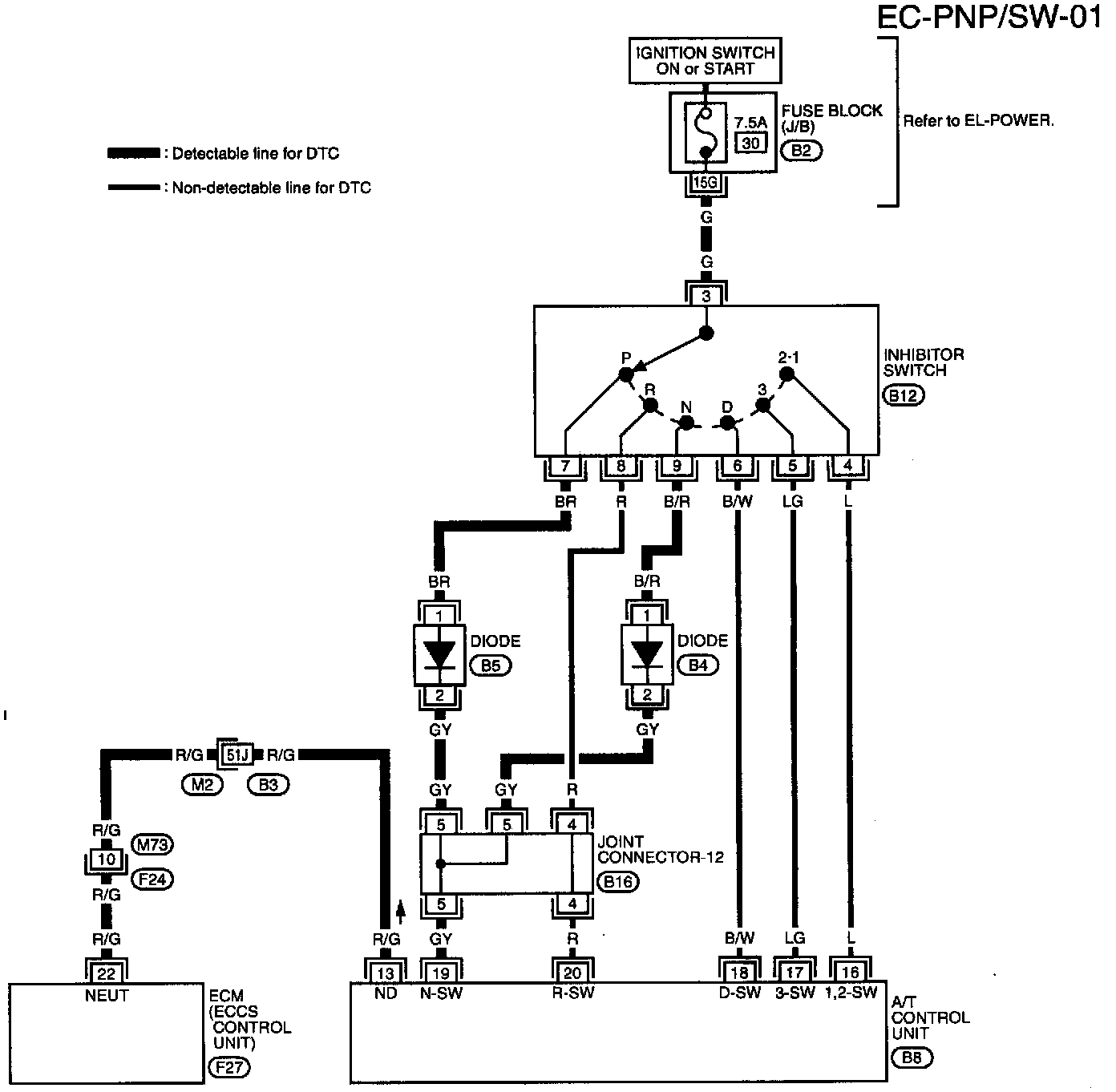

EC-PNP/SW-01 Park/Neutral Position Switch (DTC:1003):
