Home >> Infiniti >> 1997 >> J30t V6-2960cc 3.0L DOHC MFI (VG30DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Name >> EC-PST/SW

EC-PST/SW

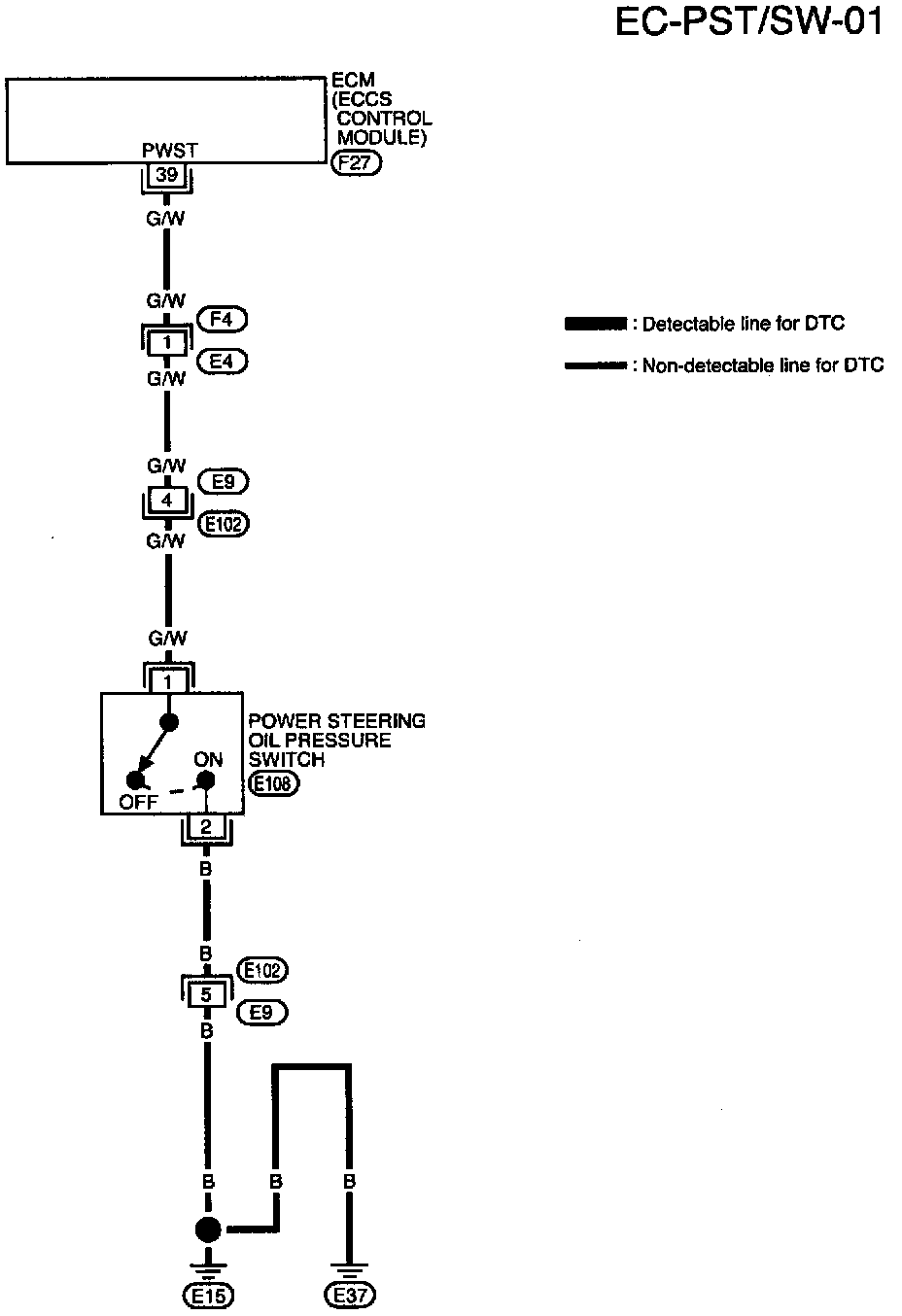

EC-PST/SW-01 Power Steering Oil Pressure Switch:
