EL-I/MIRR
EL-I/MIRR

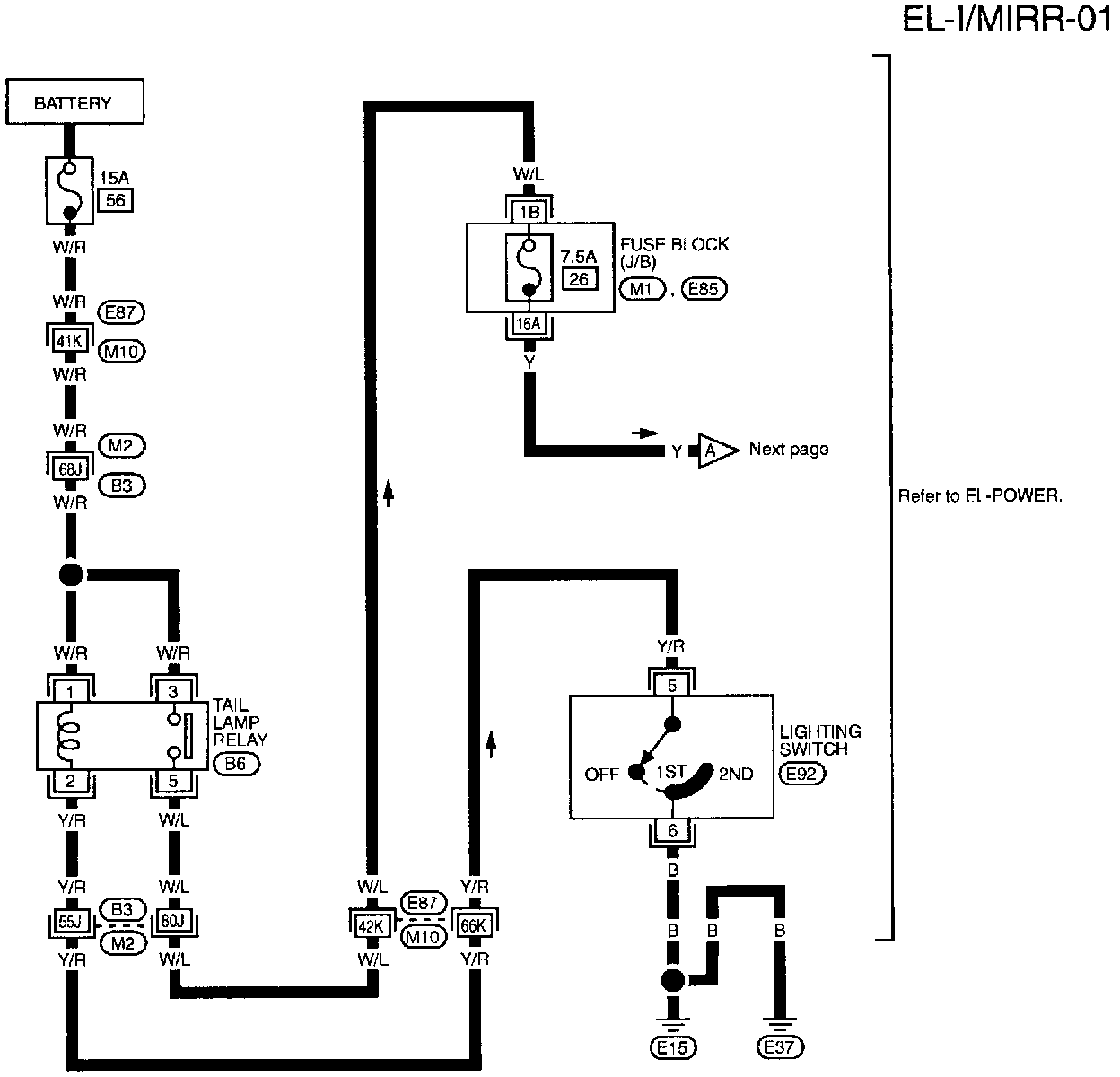

EL-I/MIRR-01 Auto Anti-dazzling Inside Mirror (Part 1 Of 2):

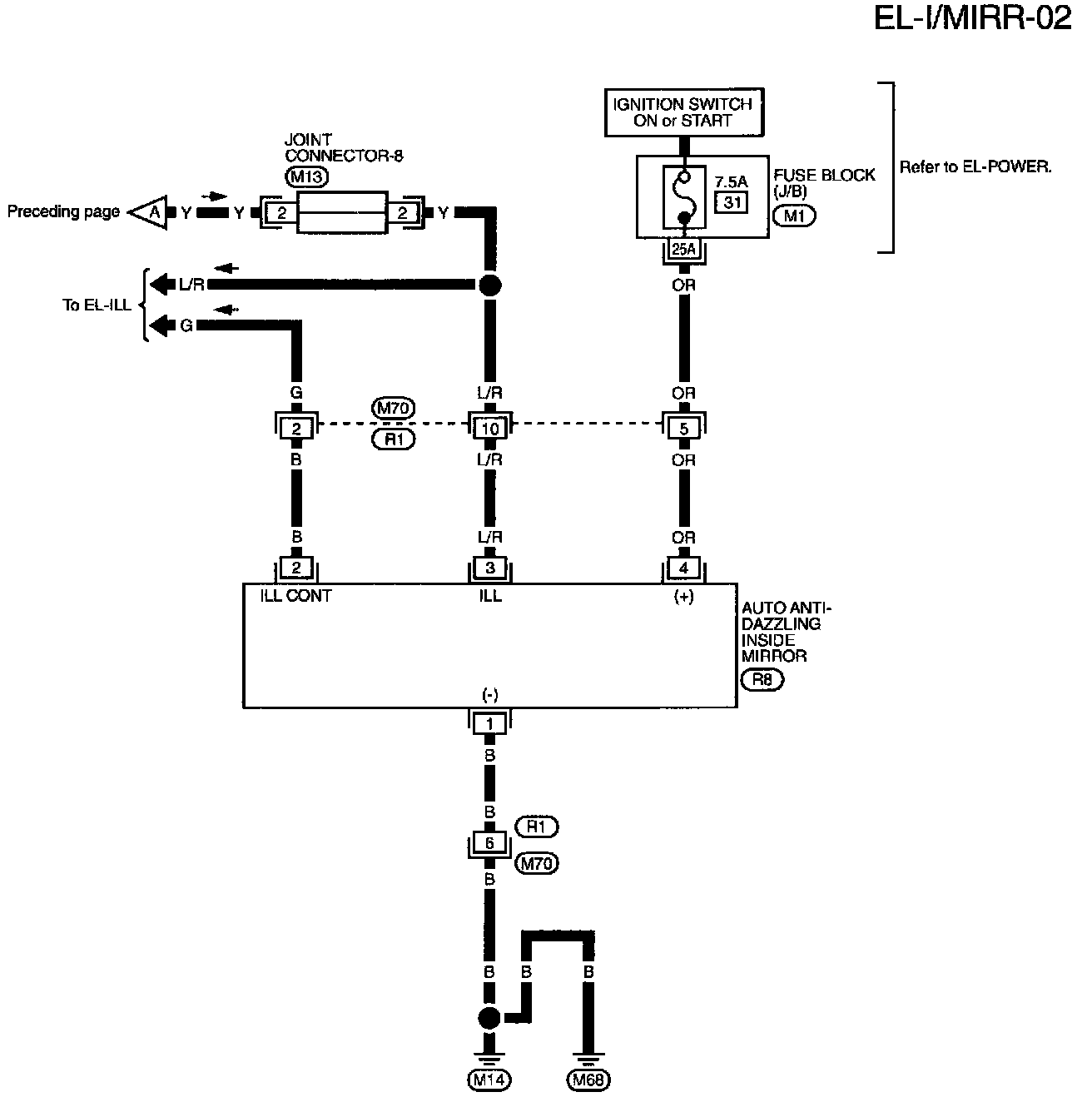

EL-I/MIRR-02 Auto Anti-dazzling Inside Mirror (Part 2 Of 2):
