Instrument Panel, Gauges and Warning Indicators
>>
Speedometer Module
Speedometer Module

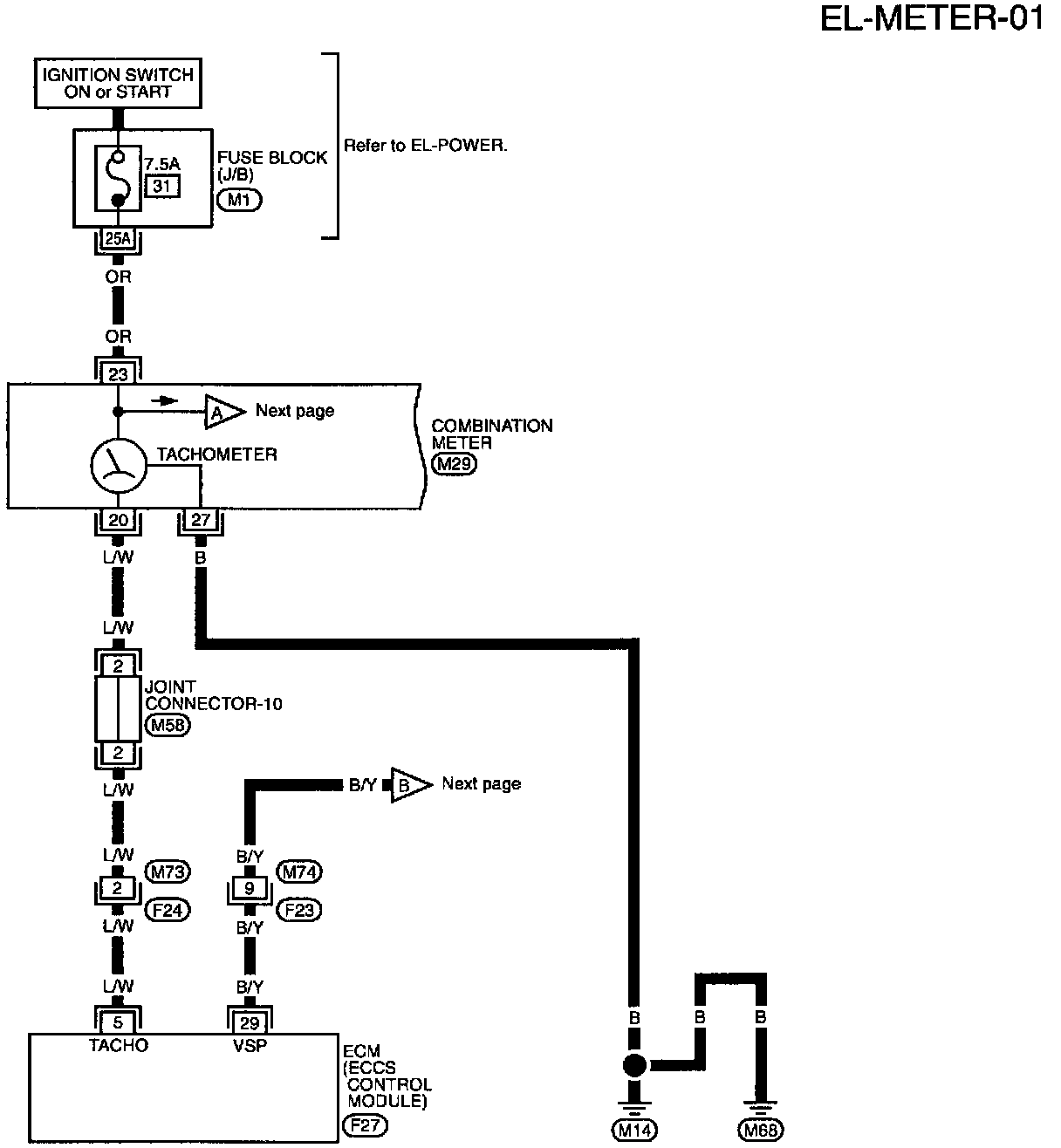

EL-METER-01 Speedometer, Tachometer, Temp. And Fuel Gauges (Part 1 Of 2):
EL-METER-02 Speedometer, Tachometer, Temp. And Fuel Gauges (Part 2 Of 2):
