Infiniti
>>
1997
>>
J30t V6-2960cc 3.0L DOHC MFI (VG30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
Trunk / Liftgate
EL-TLID-01 Trunk Lid And Fuel Filler Lid Opener (Part 1 Of 2):

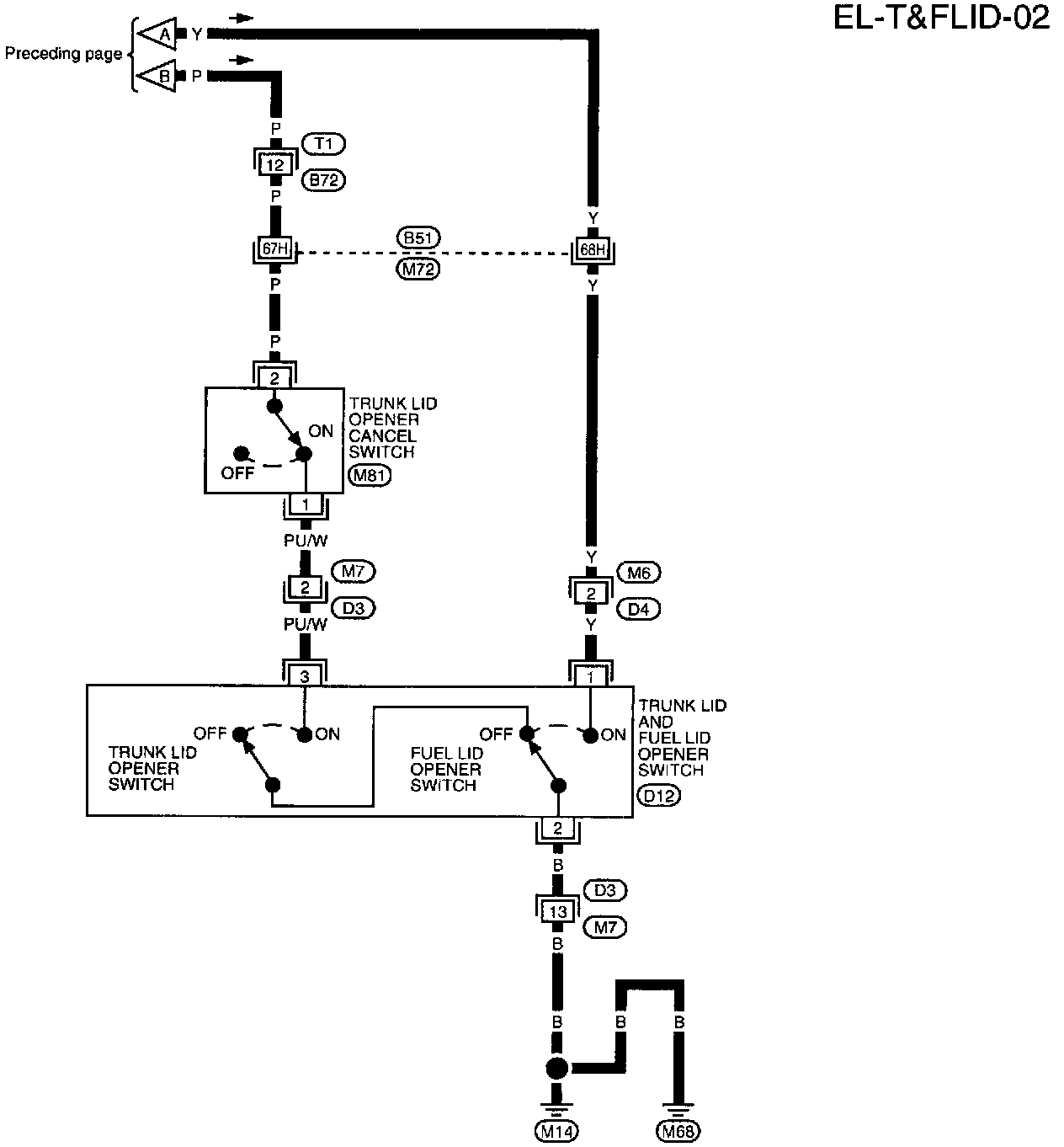

EL-TLID-02 Trunk Lid And Fuel Filler Lid Opener (Part 2 Of 2):
