Home >> Infiniti >> 1997 >> J30t V6-2960cc 3.0L DOHC MFI (VG30DE) >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Room Harness >> Engine Compartment

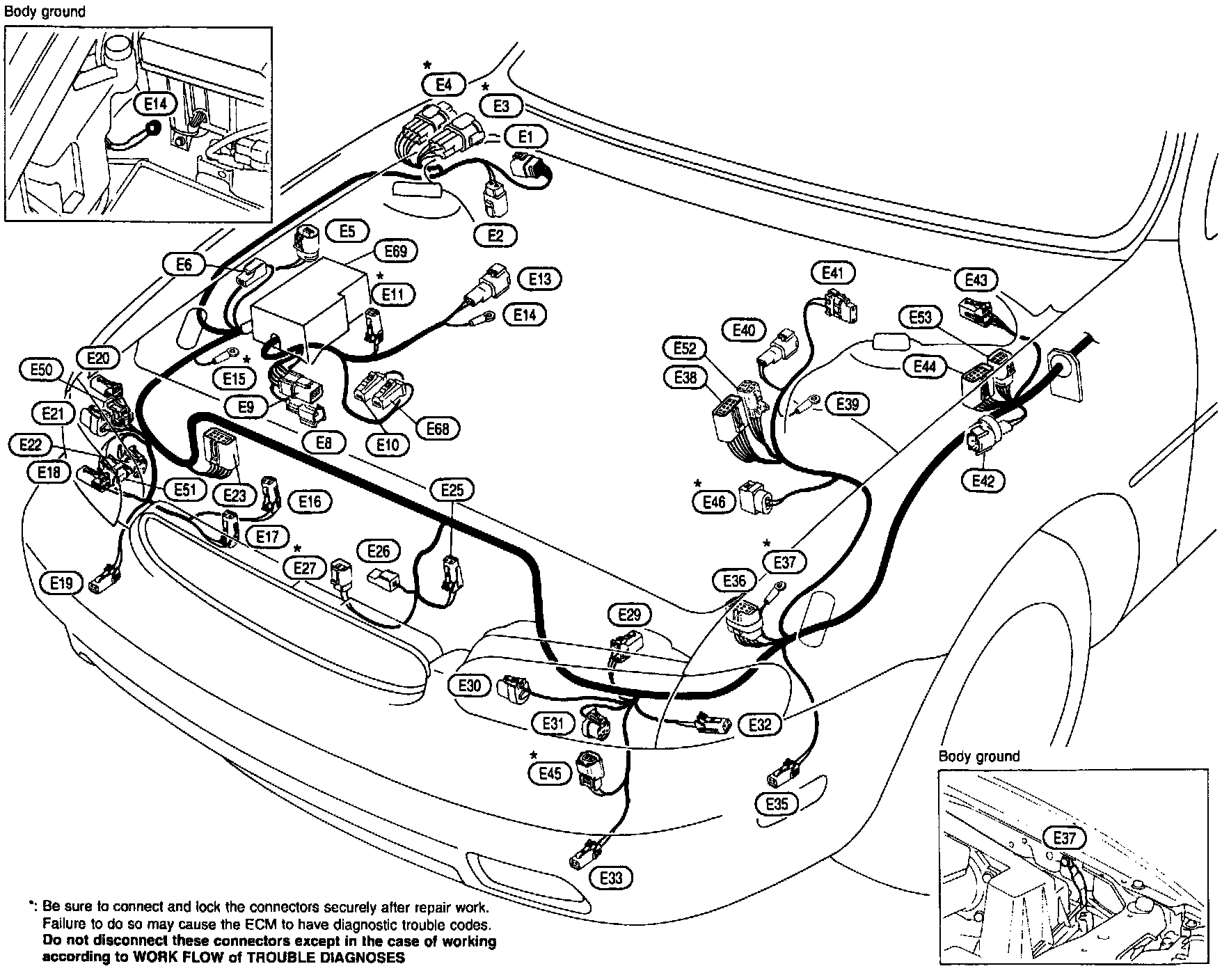

Engine Compartment

Engine Room Harness: Engine Compartment:



Engine Room Harness:
