Initial Inspection and Diagnostic Overview

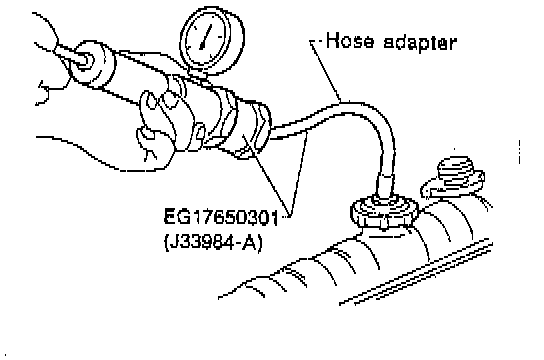

To check for leakage, apply pressure to the cooling system with a tester.
Testing pressure: 157 kPa (23 psi)

CAUTION: Higher than the specified pressure may cause radiator damage.
