Diode: Testing and Inspection

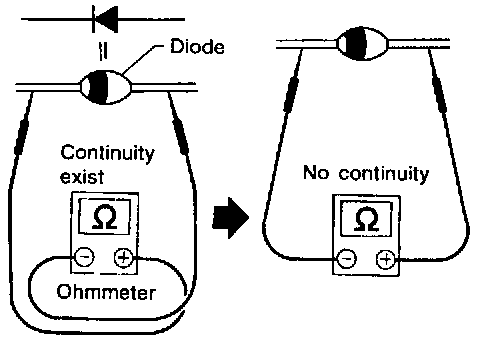

Diode Check:

^ Check continuity using an ohmmeter.
^ Diode is functioning properly if test results are as shown in the figure at left.

NOTE: Specifications may vary depending on the type of tester. Before performing this inspection, be sure to refer to the instruction manual of your tester.

Diode Check:

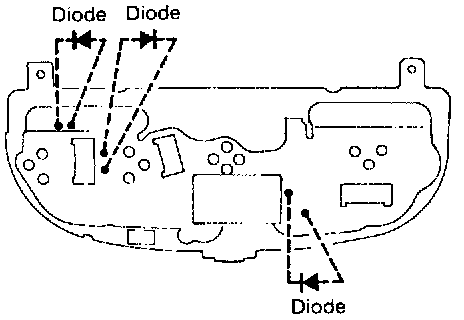

^ Diodes for warning lamps are built into the combination meter printed circuit.
