SAE J1930 Terminology List

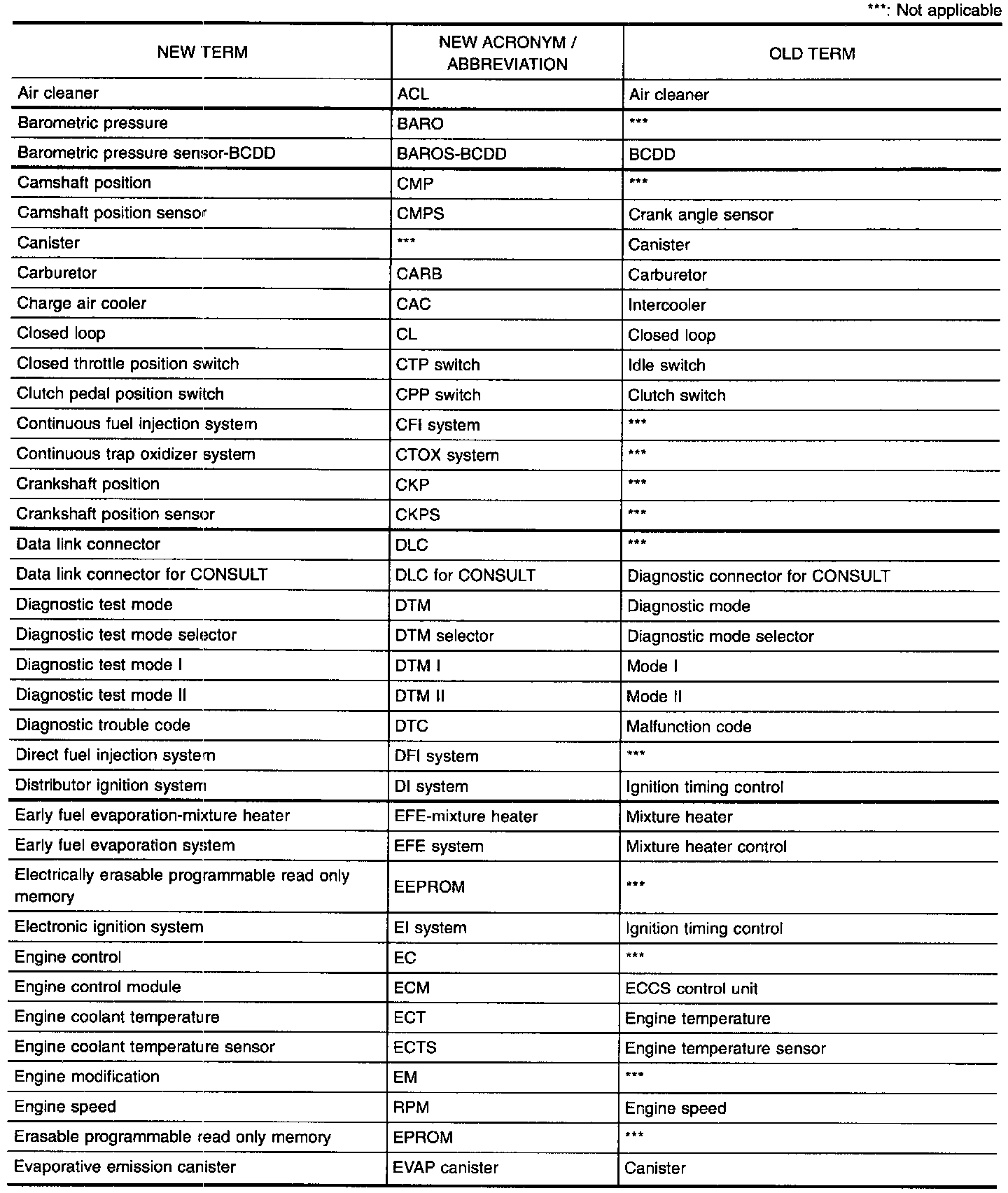

SAE J1930 Terminology List (Part 1 Of 4):

Air Cleaner thru Evaporative Emission Canister

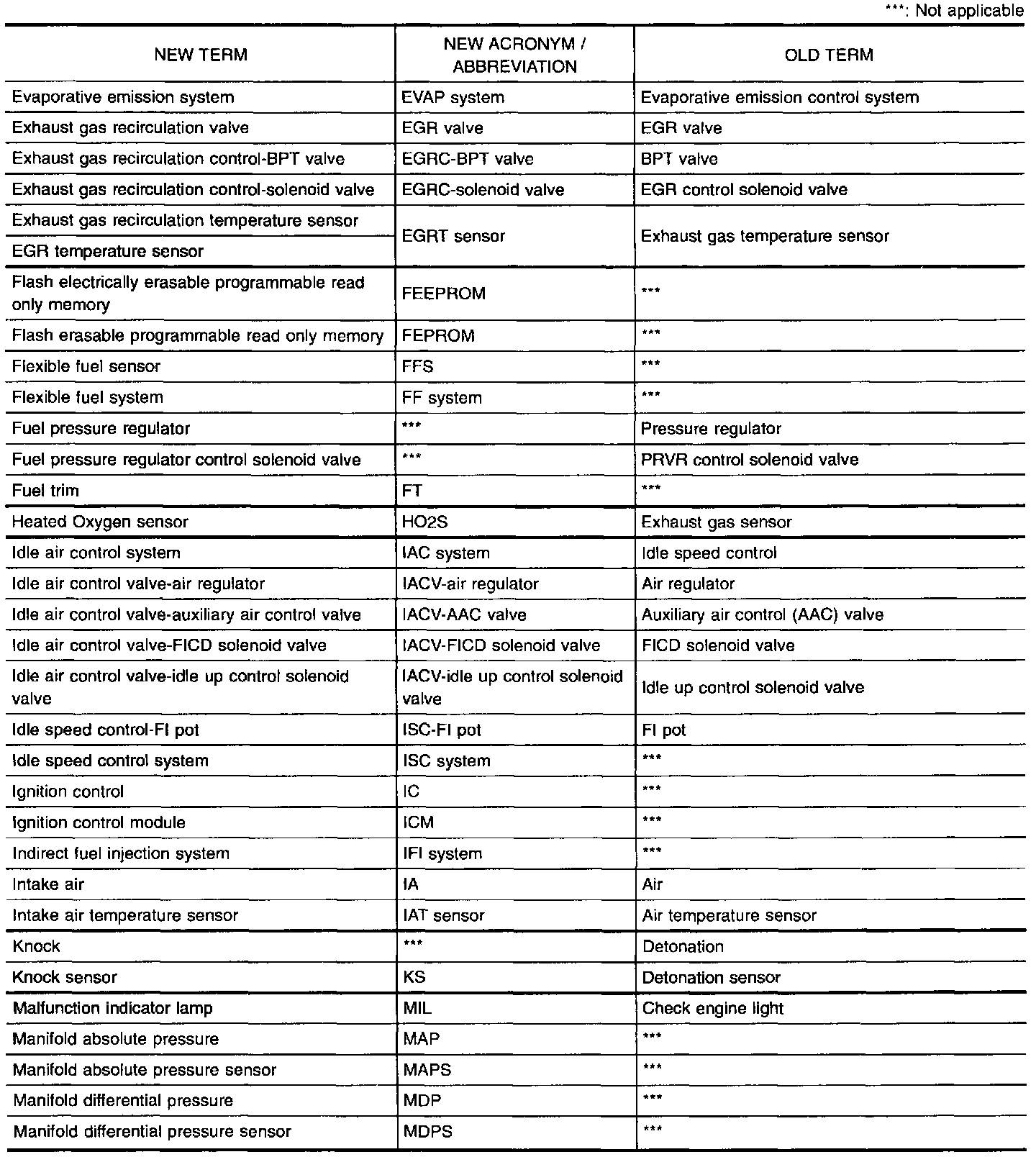

SAE J1930 Terminology List (Part 2 Of 4):

Evaporative Emission System thru Manifold Differential Pressure Sensor

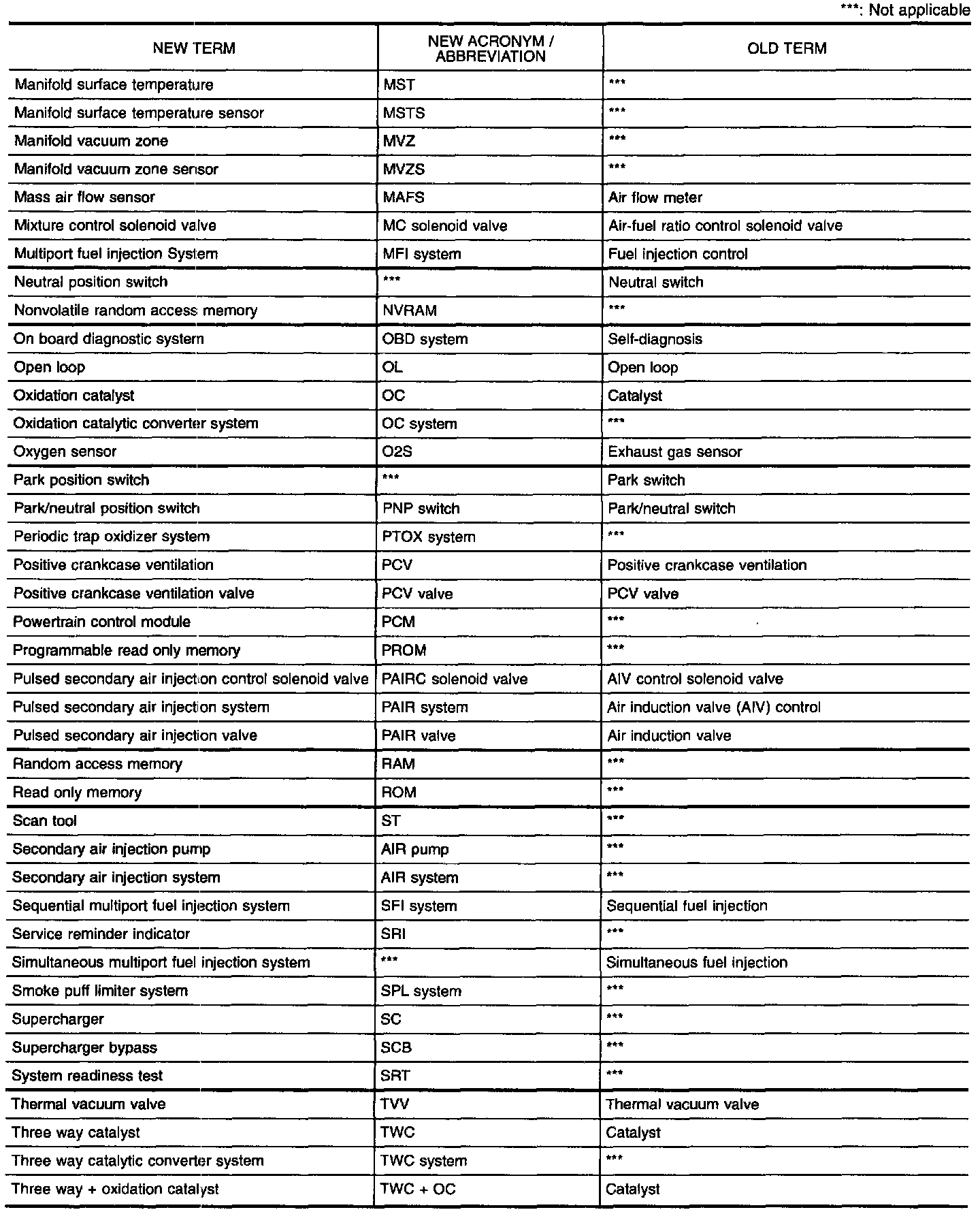

SAE J1930 Terminology List (Part 3 Of 4):

Manifold Surface Temperature thru Three-Way + Oxidation Catalyst

SAE J1930 Terminology List (Part 4 Of 4):

Three Way Oxidation + Catalytic Converter system thru Wide Open Throttle Position Switch

All emission related terms used in this publication in accordance with SAE J1930 are listed. Accordingly, new terms, new acronyms/abbreviations and old terms are listed in the images.
