Oil Pump, Engine

Standard Clearance:

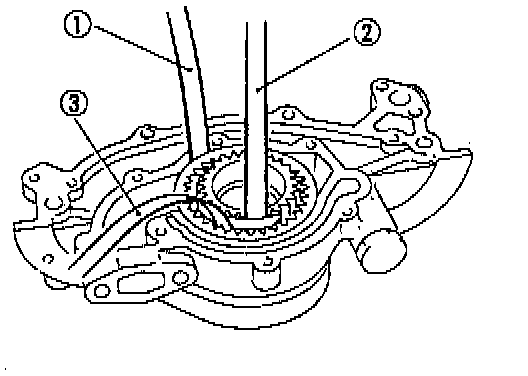

Body To Outer Gear(1): 0.114 - 0.200 mm (0.0045 - 0 0079 inch)
Inner Gear To Crescent(2): 0.223 - 0.333 mm (0.0088 - 0.0131 inch)
Outer Gear To Crescent(3): 0.210 - 0.320 mm (0.0083 - 0.0126 inch)

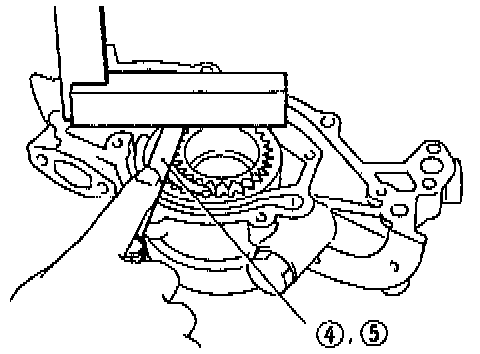

Housing To Inner Gear(4): 0.050 - 0.090 mm (0.0020 - 0.0035 inch)
Housing To Outer Gear(5): 0.050 - 0.110 mm (0.0020 - 0.0043 inch)

Torque Specifications:
M6 Oil Pump Bolts 6.3 - 8.3 nm (55.6 - 78.3 in. lb.)
M8 Oil Pump Bolts 22 - 29 nm (16 - 22 ft. lb.)
