Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1997
>>
J30t V6-2960cc 3.0L DOHC MFI (VG30DE)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

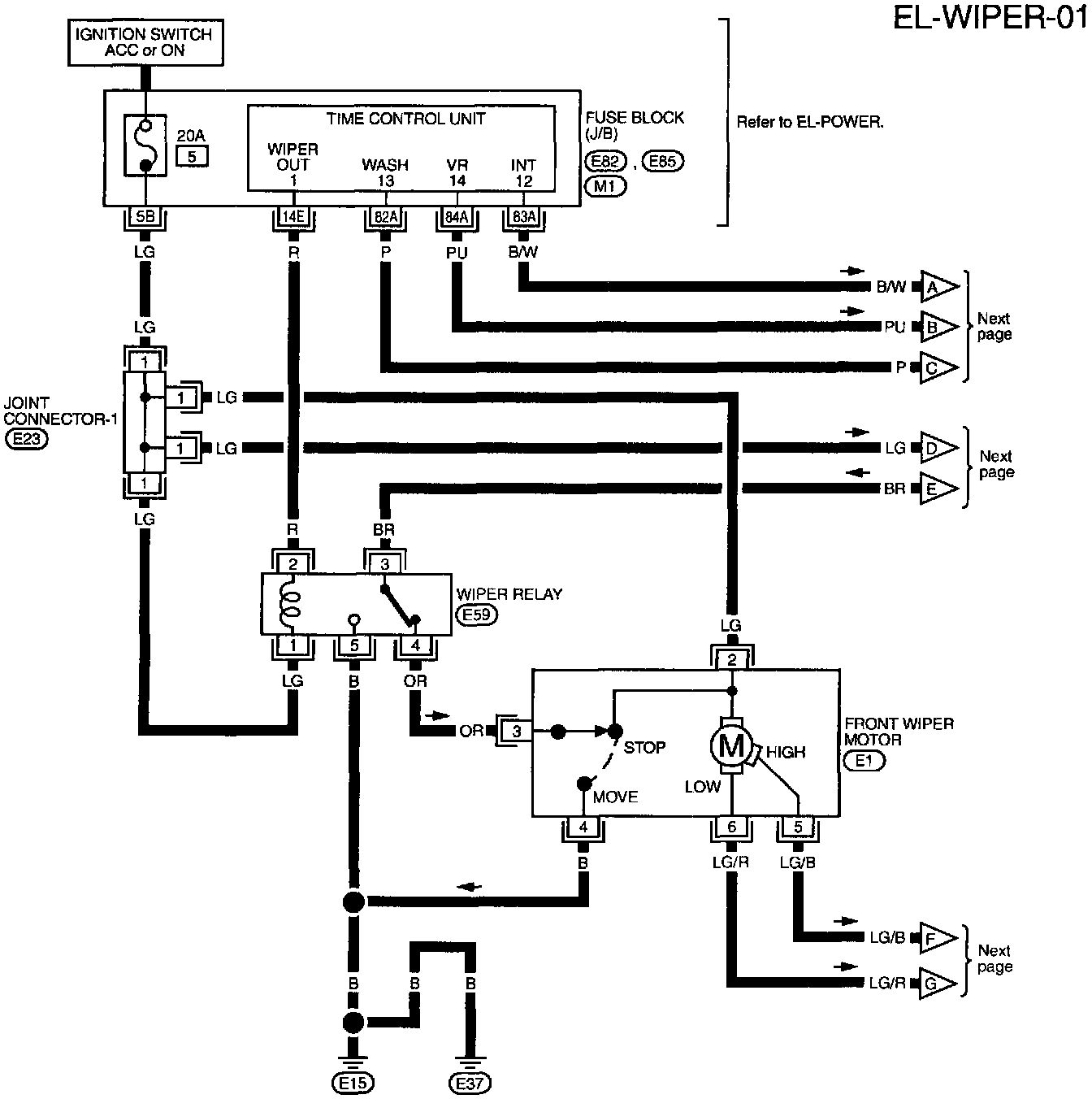

EL-WIPER-01 Front Wiper And Washer (Part 1 Of 2):

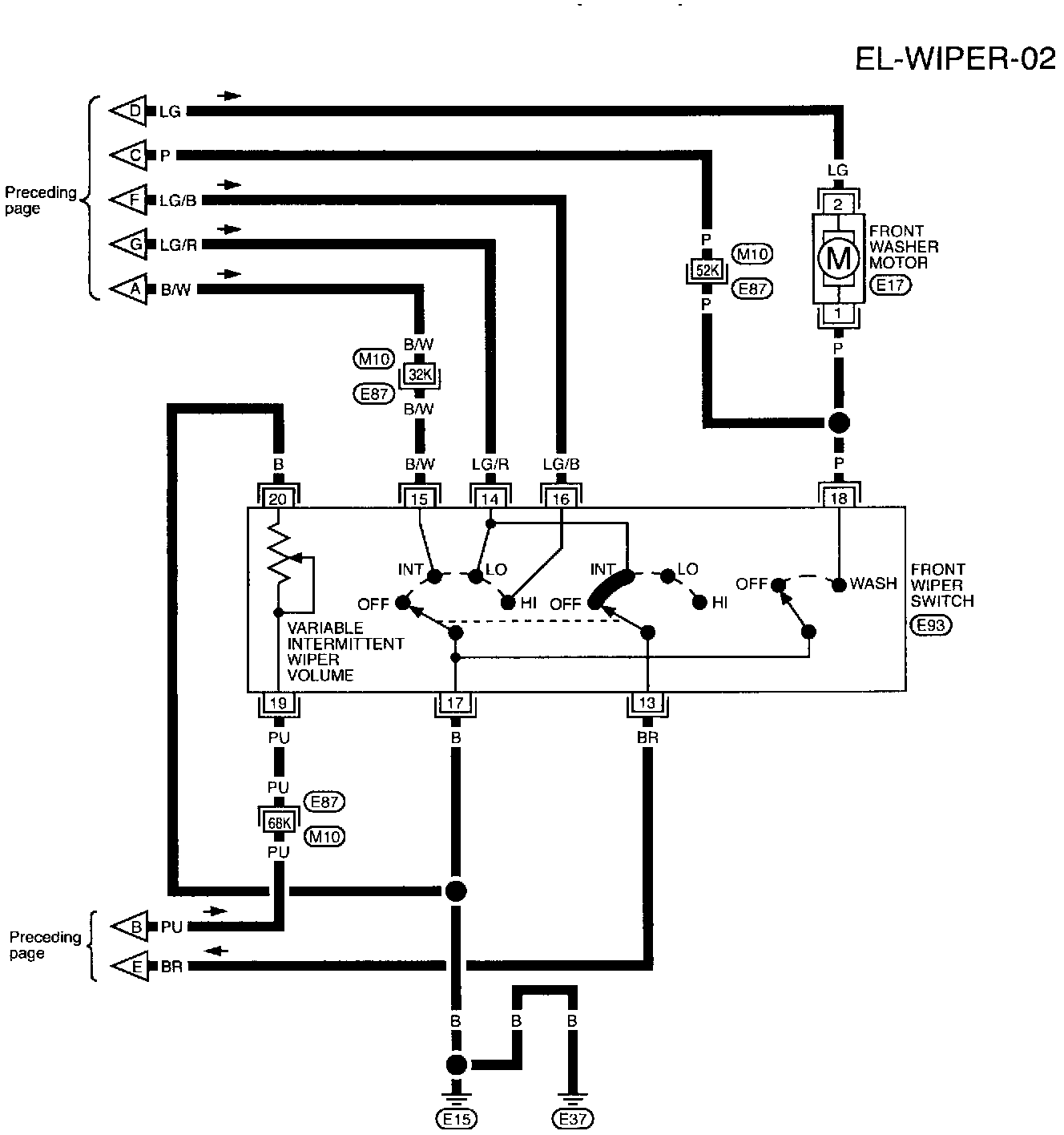

EL-WIPER-02 Front Wiper And Washer (Part 2 Of 2):
