Component Tests and General Diagnostics

Element Check:

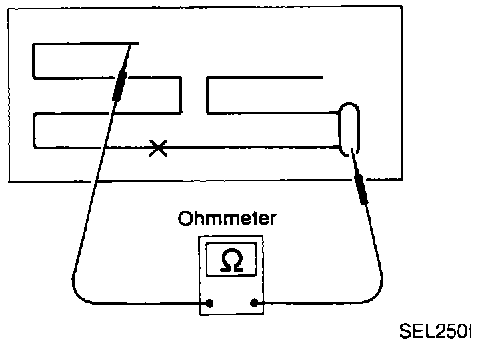

1. Attach probe circuit tester (in ohm range) to antenna terminal on each side.

Element Check:

2. It an element is broken, no continuity will exist.

Element Check:

3. To locate broken point, move probe along element. Tester needle will swing abruptly when probe passes the point.

ELEMENT REPAIR
Refer to REAR WINDOW DEFOGGER "Filament Repair".
