Initial Inspection and Diagnostic Overview

Preliminary Check:

*1: After reconnecting battery cable, perform initialization procedure A or B.
If initialization has not been performed, automatic drive positioner will not operate.

PROCEDURE A
1. Insert key in the ignition key cylinder. (Ignition switch is in "OFF" position.)
2. Open -> close -> open driver side door. (Do not perform with the door switch operation.)
3. End

PROCEDURE B
1. Drive the vehicle at more than 30 kmph (19 MPH).
2. End

*2: If only seat slide operates during automatic exit setting, the problem may be due to mechanical tilt mechanism failure. (In this case, all other automatic operation items do not operate.)

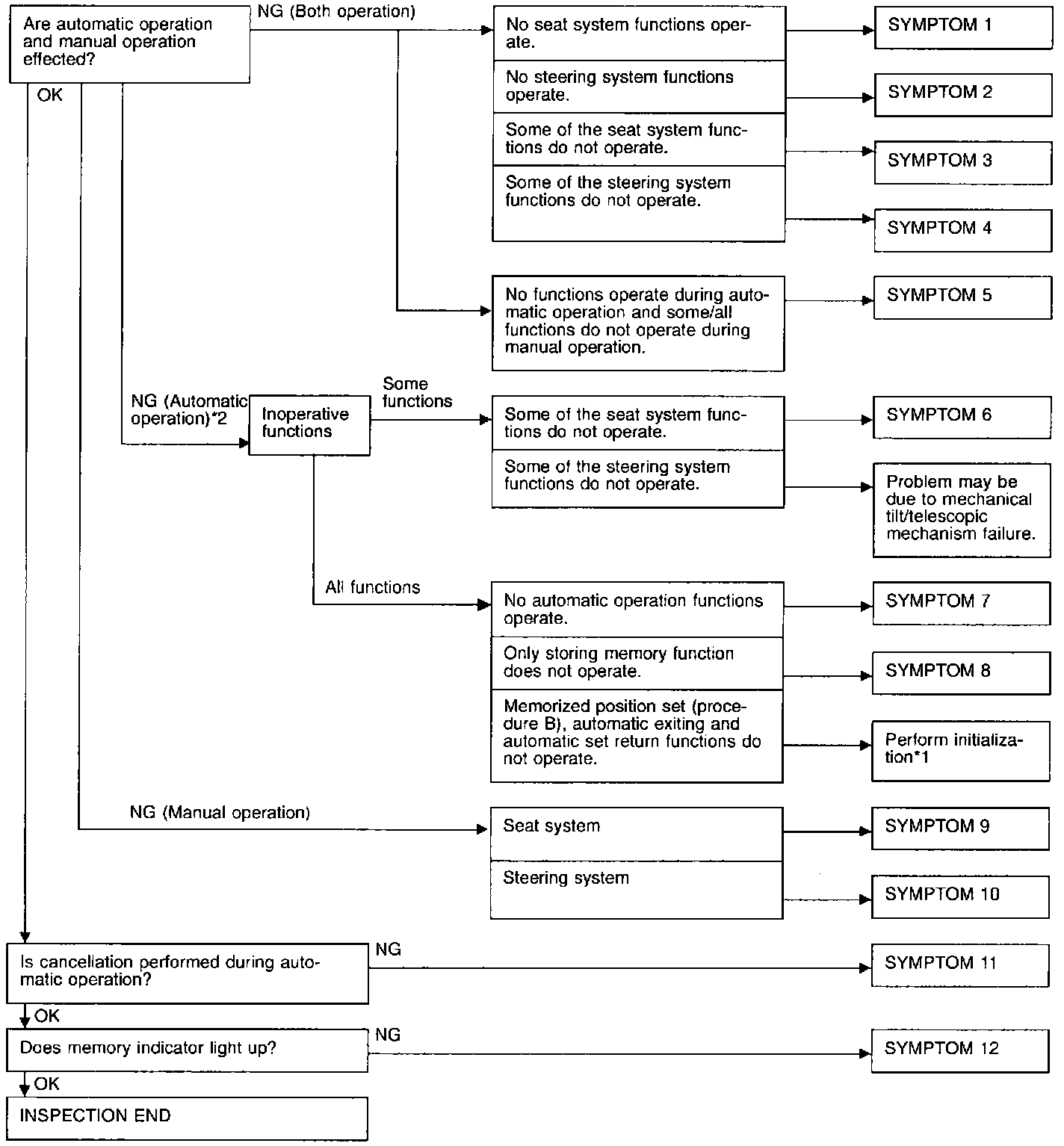

After performing preliminary check, go to symptom chart.
