ASCD Brake Switch and Stop Lamp Switch
ASCD Brake Switch and Stop Lamp Switch

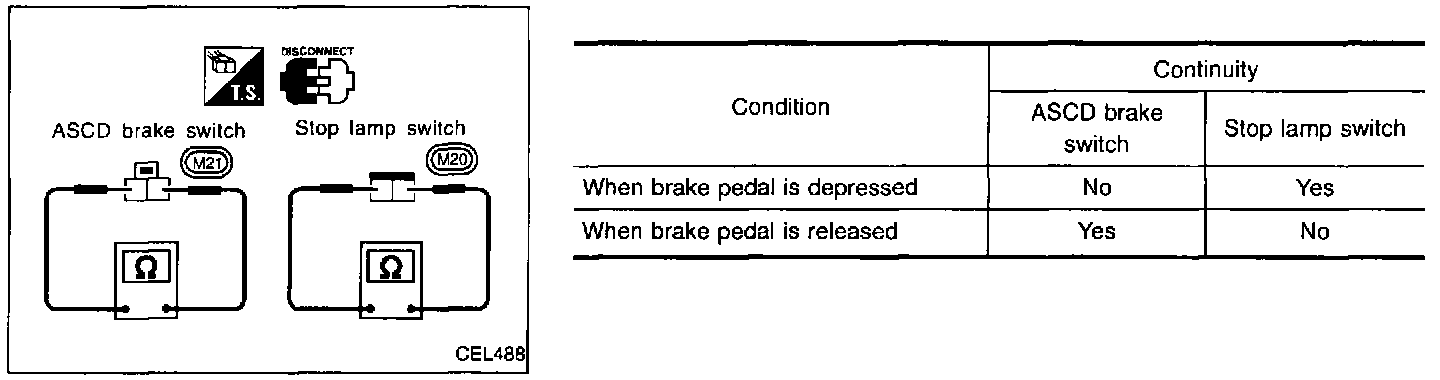

ASCD Brake Switch And Stop Lamp Switch:
Check each switch after adjusting brake pedal
