Diode

Diode:

^ Check continuity using an ohmmeter.

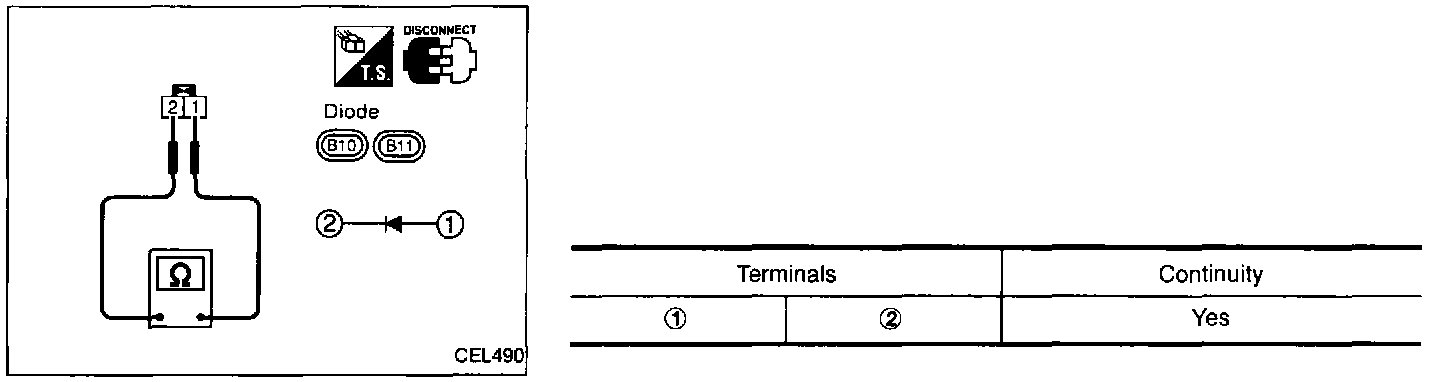

^ Diode is functioning properly if test results are as shown in the image.

NOTE: Specifications may vary depending on the type of tester. Before performing this inspection, be sure to refer to the instruction manual for your tester.
