Q45 V8-4130cc 4.1L DOHC MFI (VH41)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Modules
>>
TAC Module
TAC Module

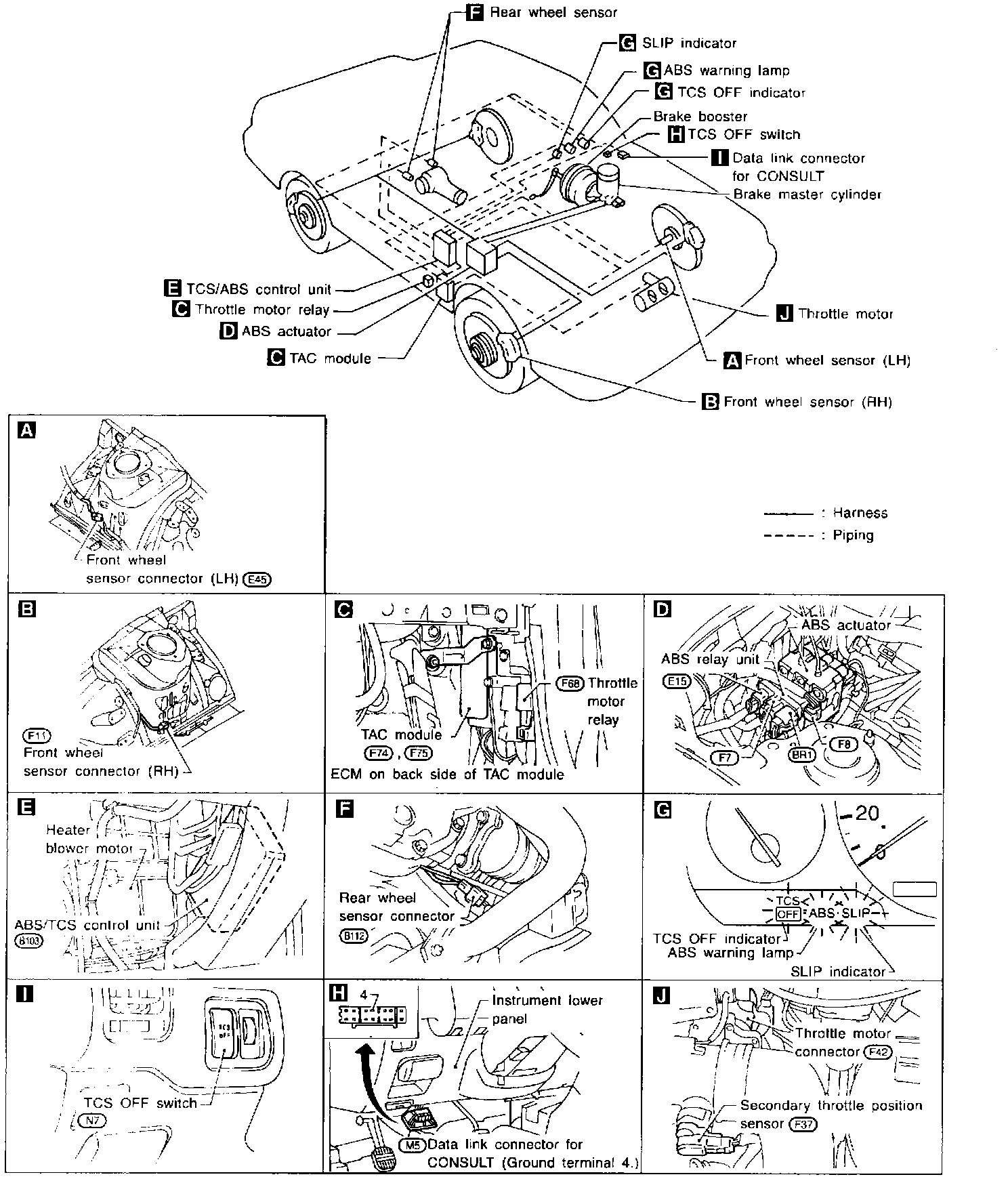

Components Parts And Harness Connector Location:
Passenger Compartment:
Passenger Compartment:
