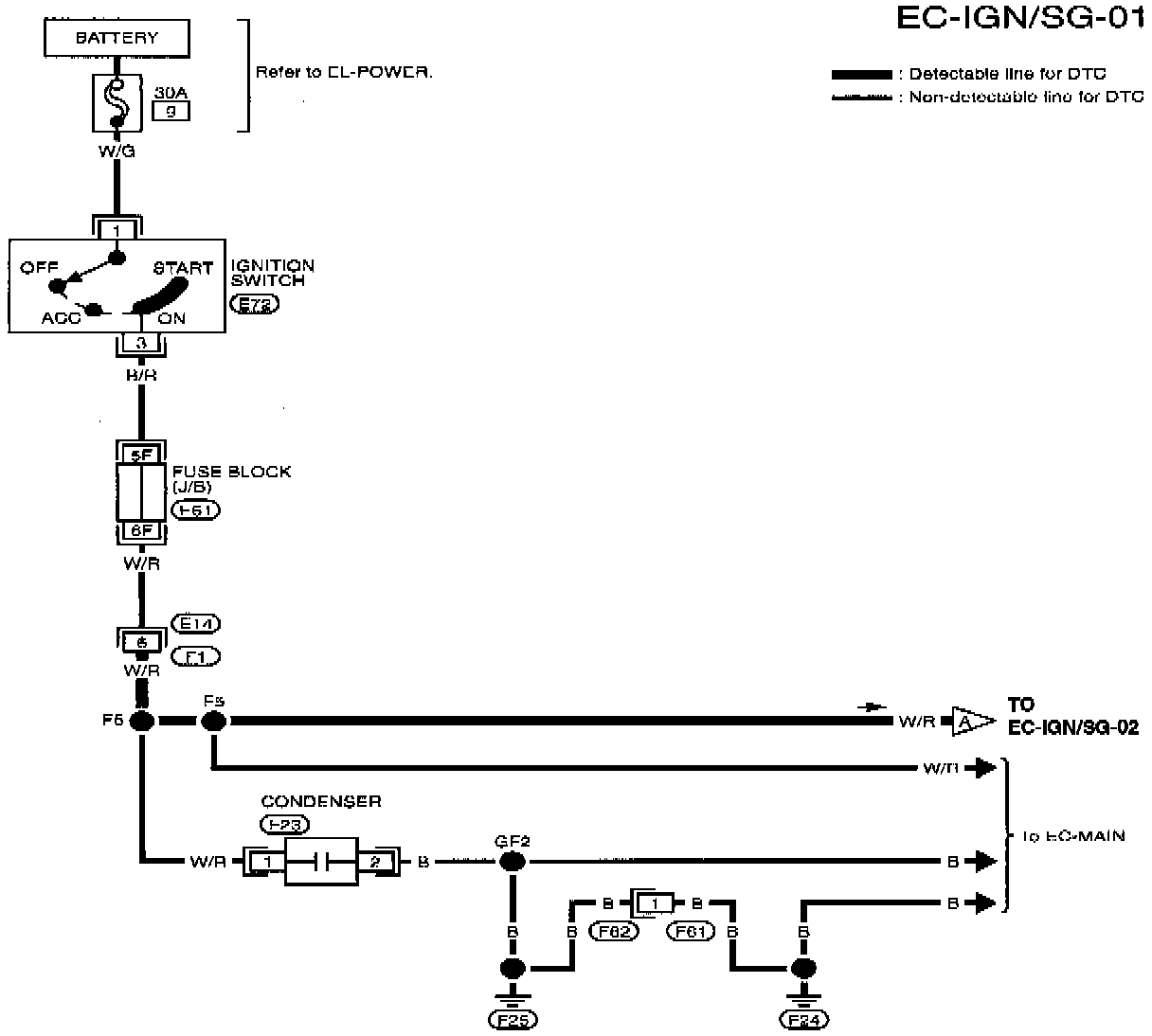

EC-IGN/SG-01





EC-IGN/SW-01

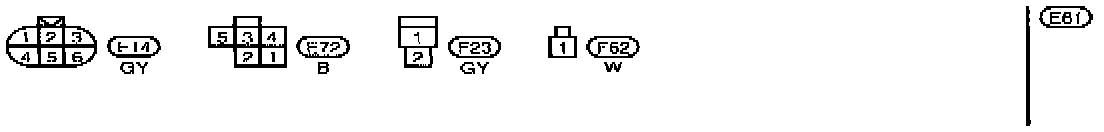

Circuit Connectors





E61 - Fuse Block Junction Box - Terminal Arrangement
