EL-A/T/IND
EL-A/T/IND

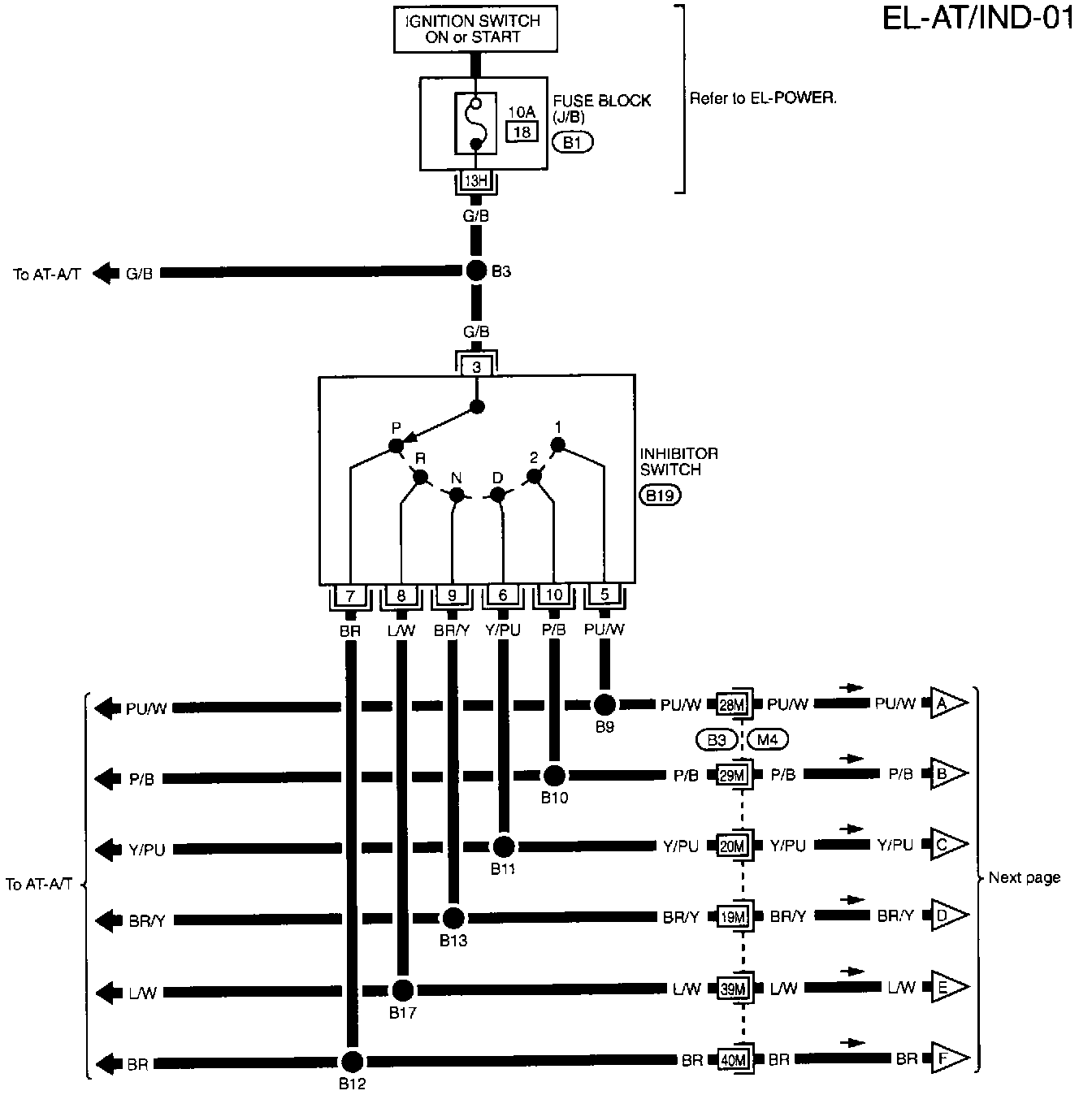

EL-AT/IND-01 A/T Indicator (Part 1 Of 3):

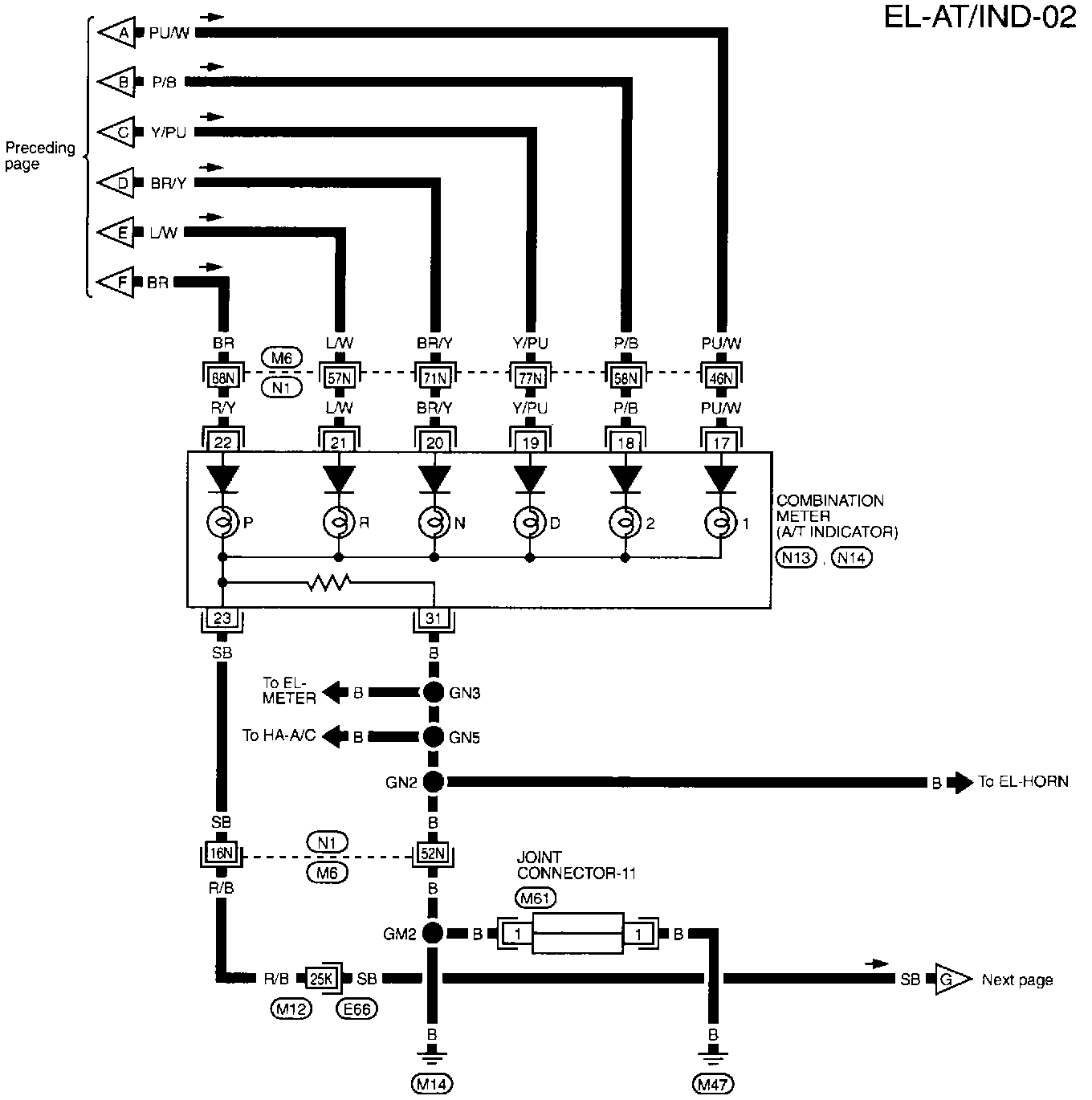

EL-AT/IND-02 A/T Indicator (Part 2 Of 3):

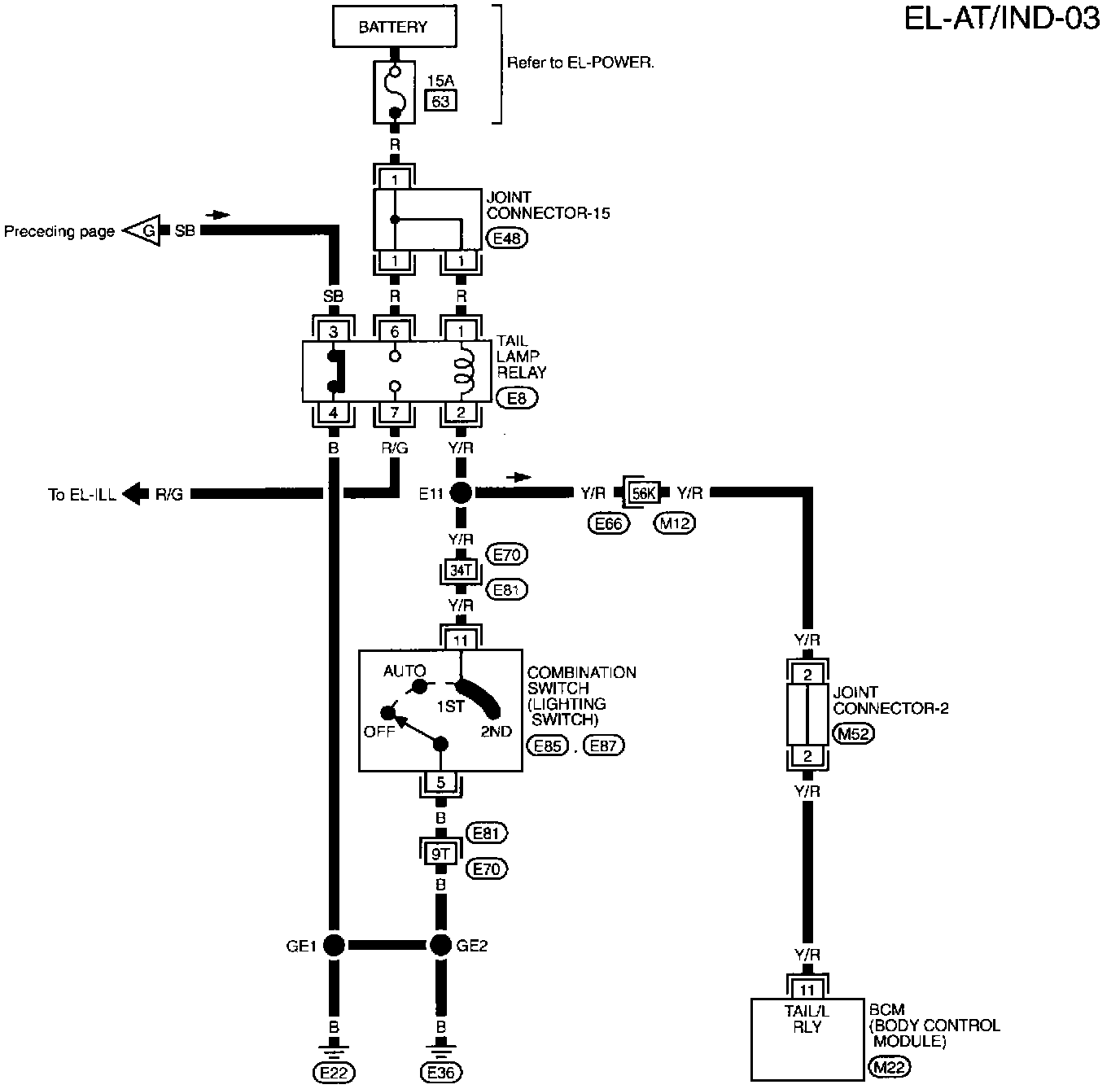

EL-AT/IND-03 A/T Indicator (Part 3 Of 3):
