EL-PHONE
EL-PHONE

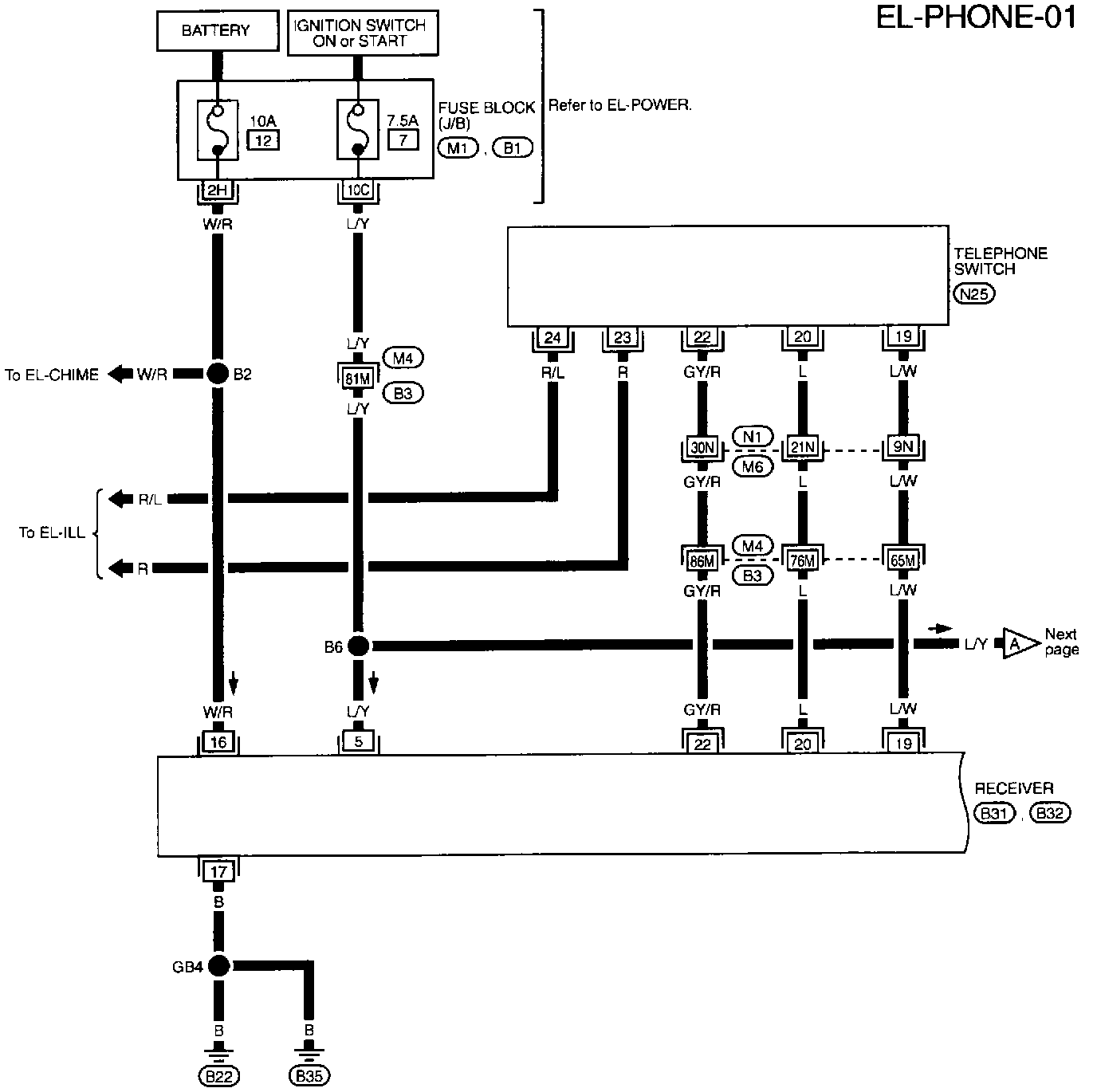

EL-PHONE-01 Telephone Pre Wire (Part 1 Of 3):
EL-PHONE-02 Telephone Pre Wire (Part 2 Of 3):

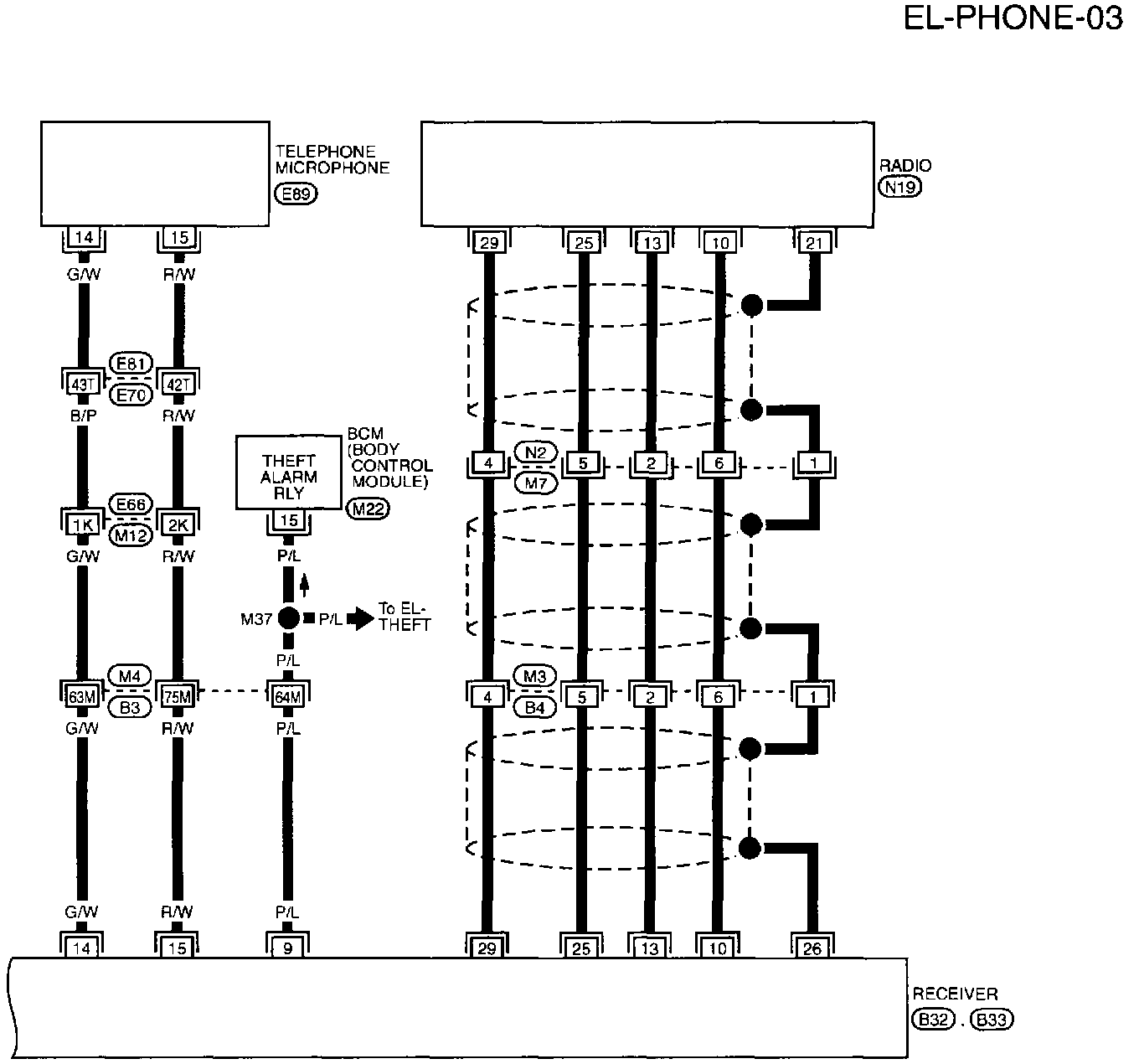

EL-PHONE-03 Telephone Pre Wire (Part 3 Of 3):
