Electrical Diagrams
Electrical Diagrams

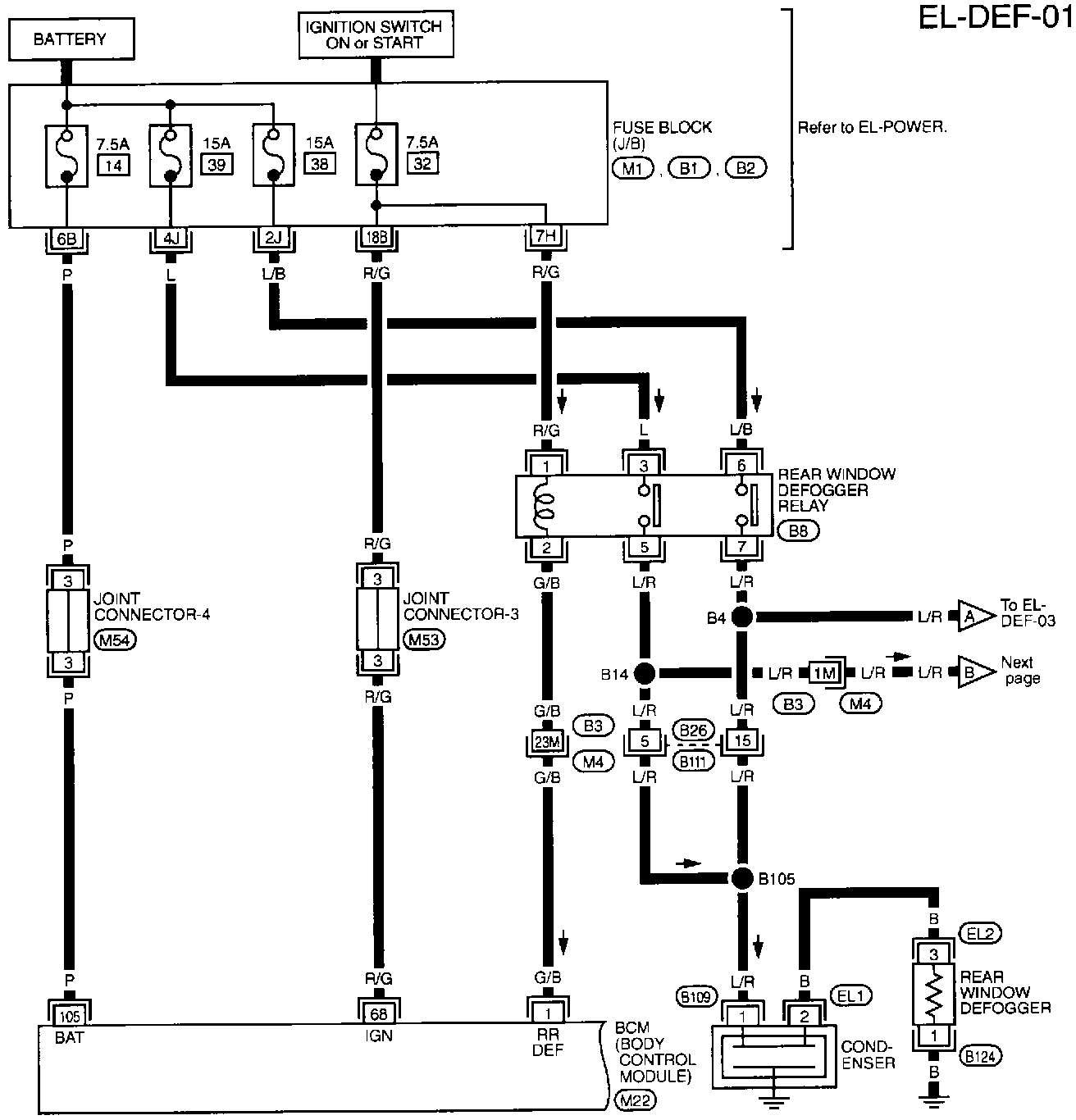

EL-DEF-01 Rear Window Defogger (Part 1 Of 3):

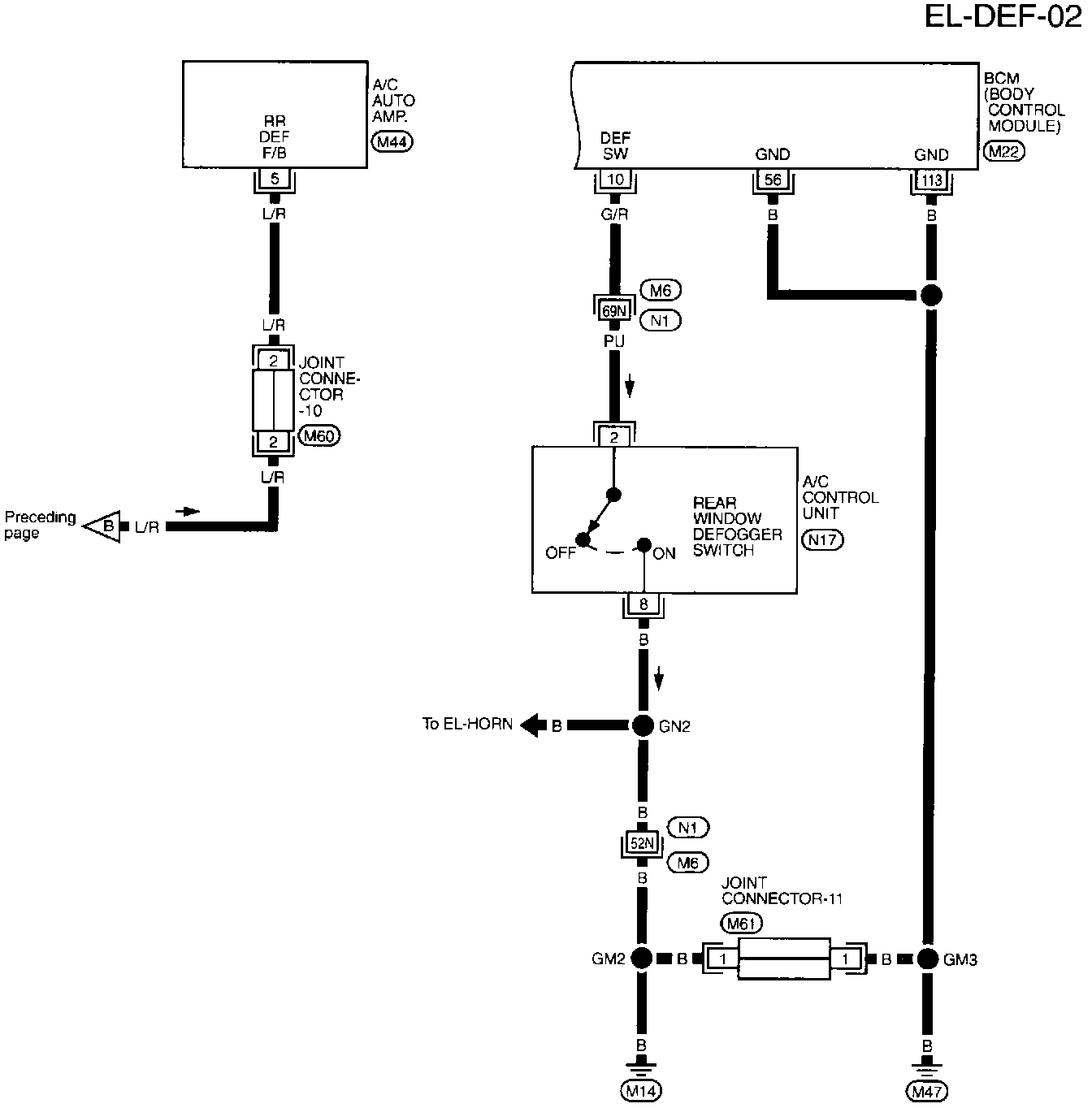

EL-DEF-02 Rear Window Defogger (Part 2 Of 3):

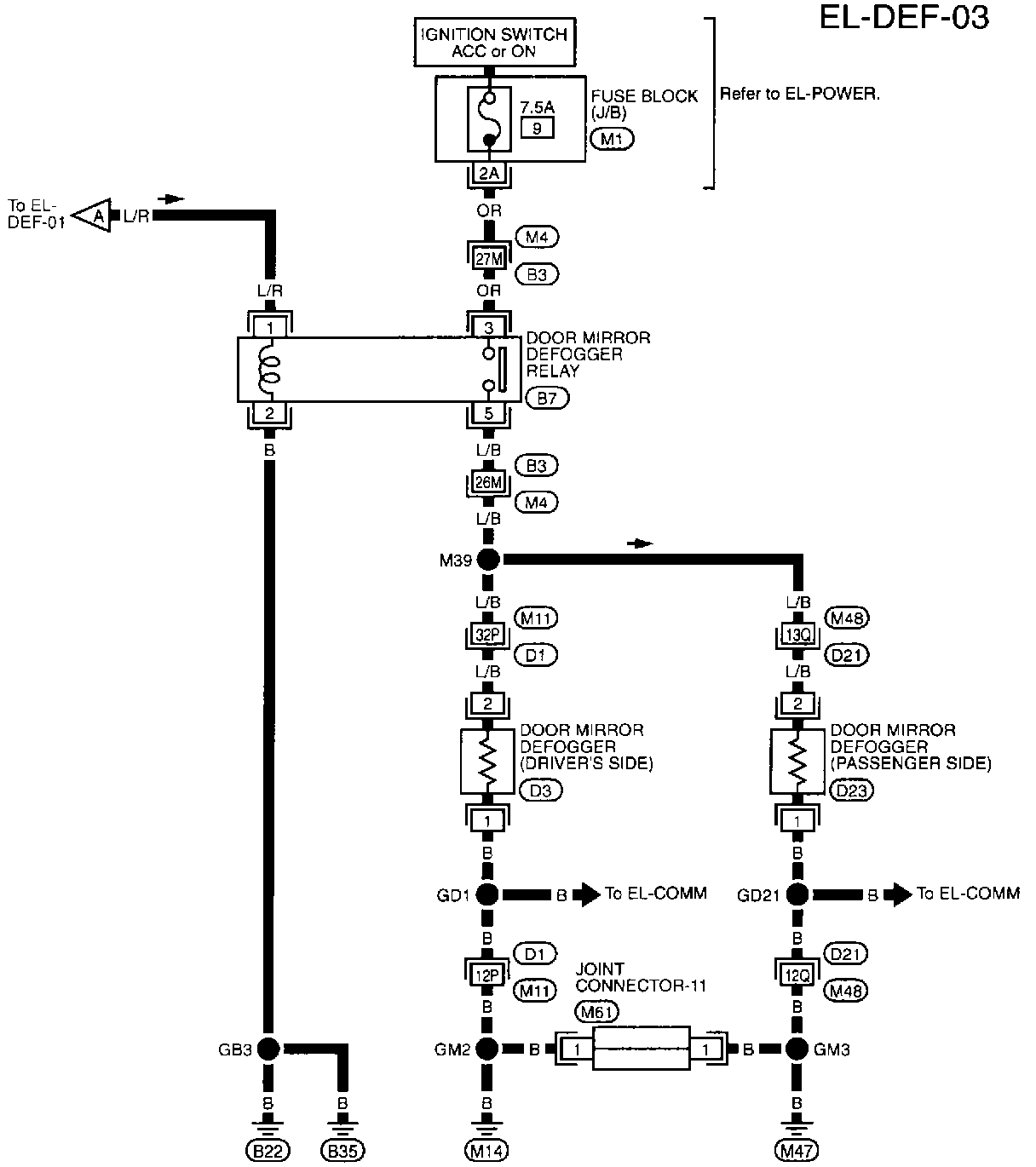

EL-DEF-03 Rear Window Defogger (Part 3 Of 3):
