Condenser Fan
Condenser Fan

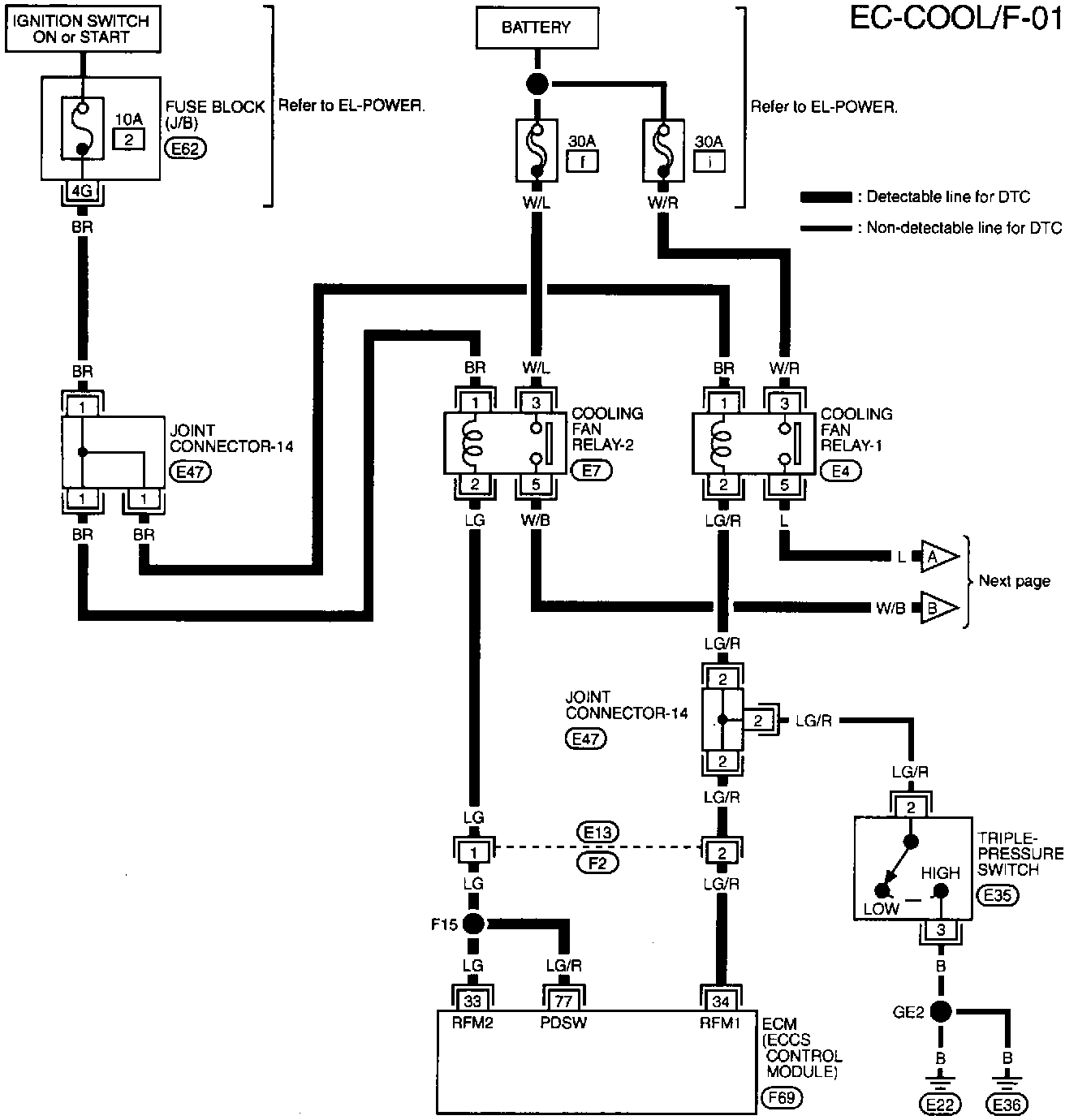

EC-COOL/F-01 Cooling Fan (DTC: P1900) (Part 1 Of 2):

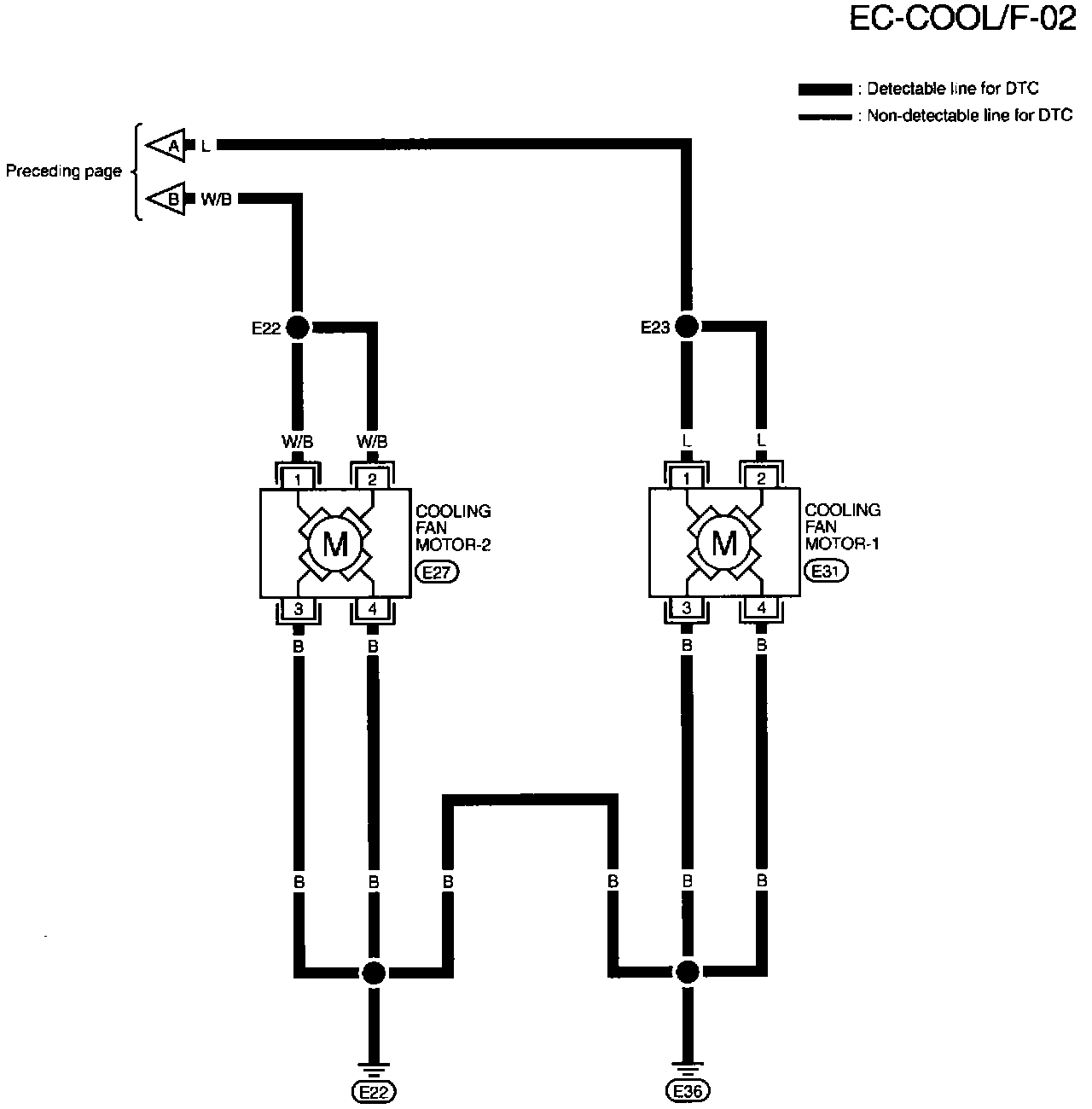

EC-COOL/F-02 Cooling Fan (DTC: P1900) (Part 2 Of 2):
