Electrical Diagrams

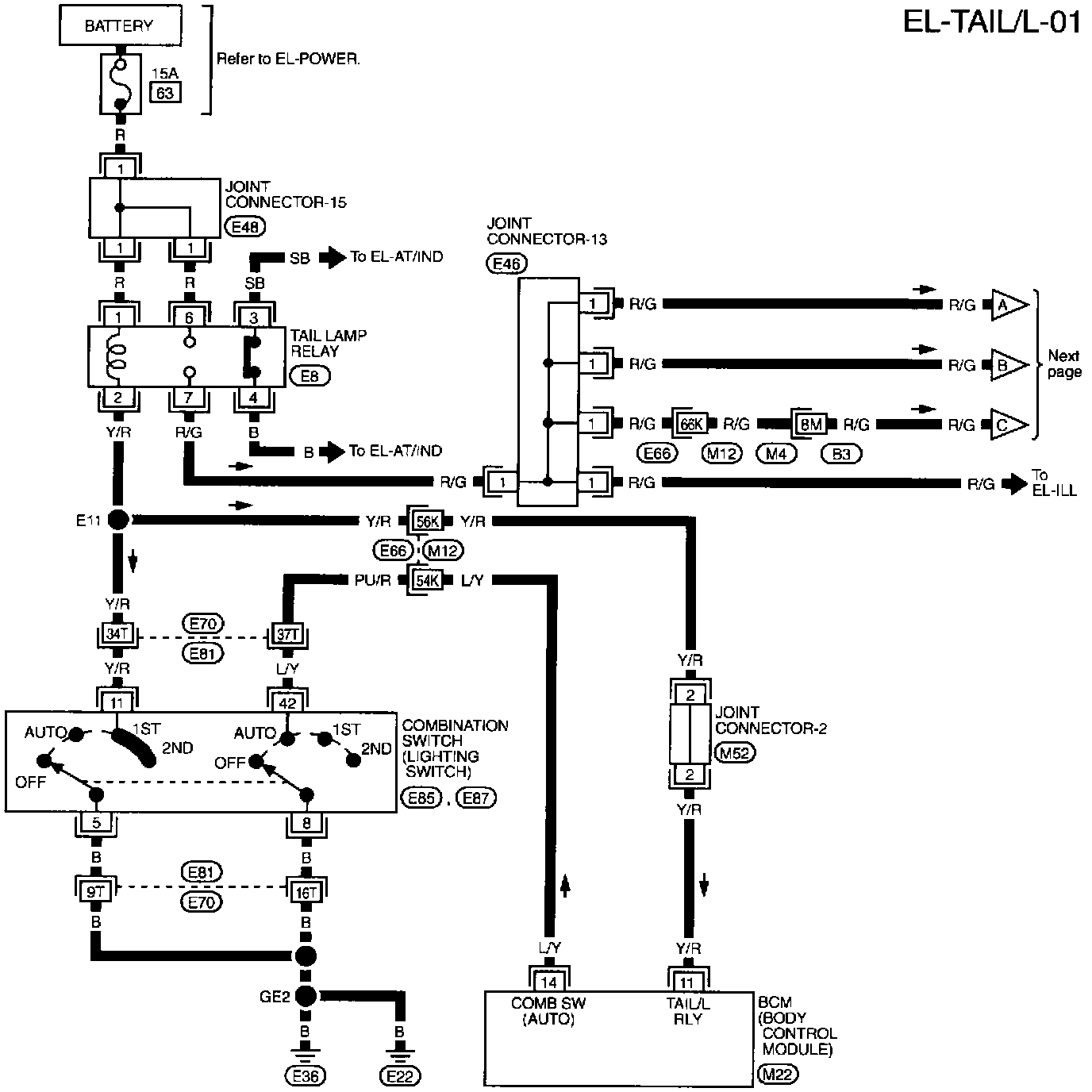

EL-TAIL/L-01 Parking, License And Tail Lamps (Part 1 Of 4):

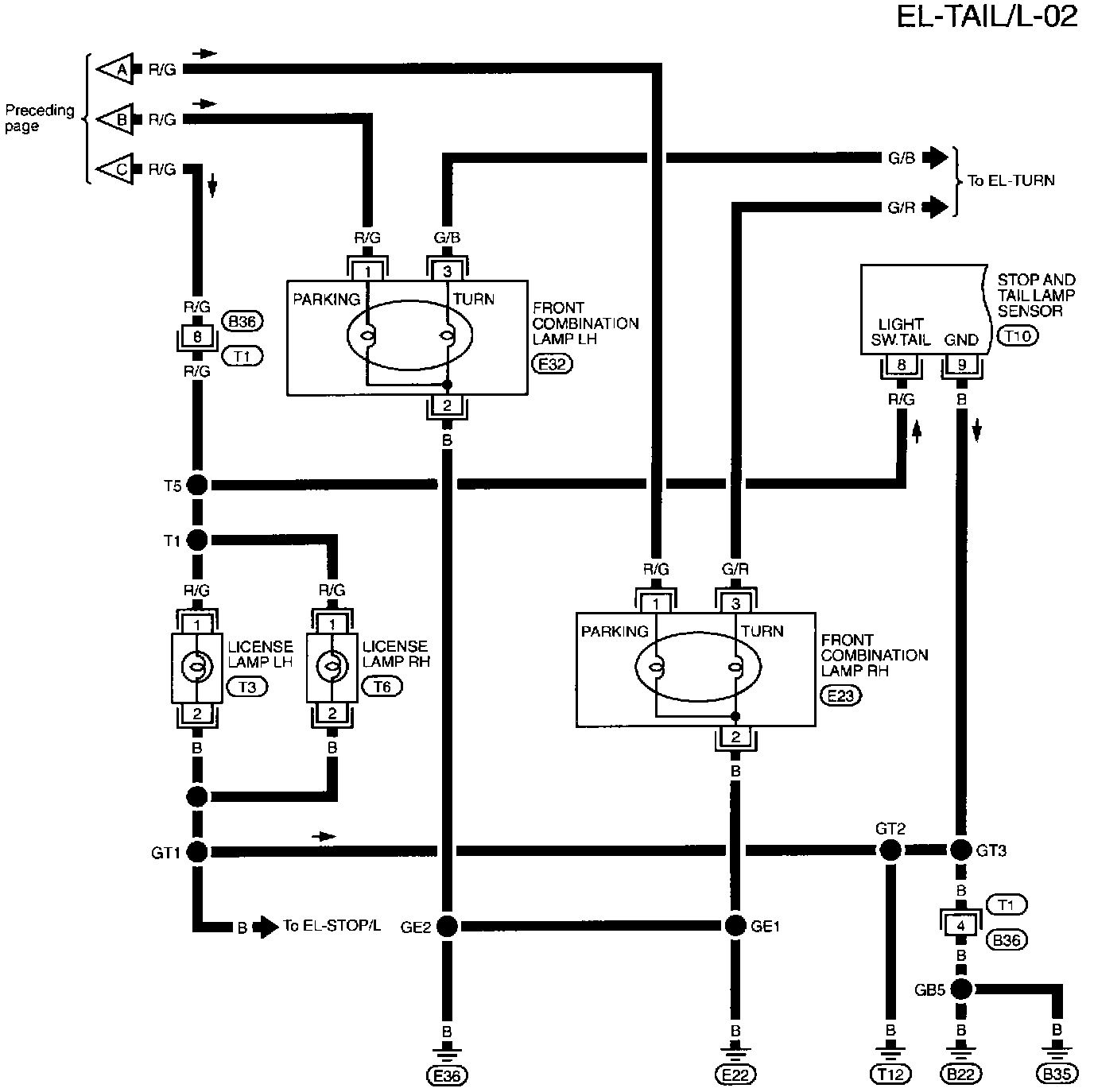

EL-TAIL/L-02 Parking, License And Tail Lamps (Part 2 Of 4):
EL-TAIL/L-03 Parking, License And Tail Lamps (Part 3 Of 4):

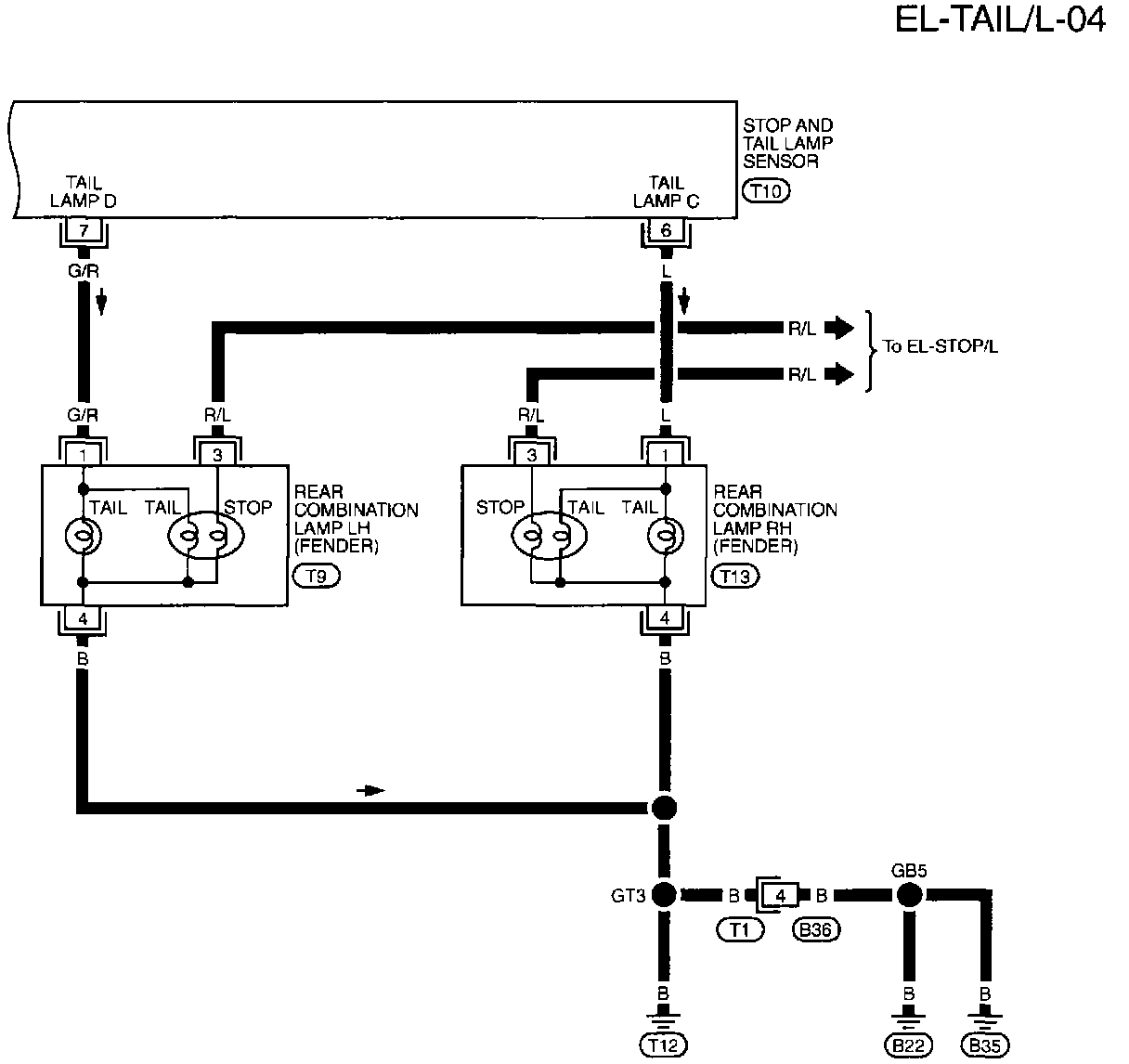

EL-TAIL/L-04 Parking, License And Tail Lamps (Part 4 Of 4):
